This Machine has been sold and is No longer Available... Find similar machines below

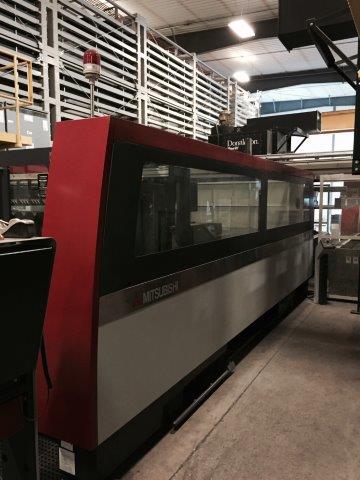

Mitsubishi ML3015 NX 2011

MAKE: Mitsubishi
YEAR: 2011
TYPE: Laser Cutting Machine

MODEL: ML3015 NX
CONTROL: MITSUBISHI 700 W/15" TOUCH SCREEN
REF #: 607170

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Options:

Mitsubishi 700 Series CNC Control W/15" Touch Screen, Mitsubishi Model 60cf-R 6000 Watt Resonator, (1) 5" Cutting Head, (1) 7.5" Cutting Head, Dust Collector, Eco Mode (Reduces cost during standby by up to 70 percent).
Pallet Size (inches):

25"

machine equipped with

Mitsubishi 700 Series CNC Control W/15" Touch Screen
Mitsubishi Model 60cf-R 6000 Watt Resonator
(1) 5" Cutting Head
(1) 7.5" Cutting Head
Dust Collector
Eco Mode (Reduces cost during standby by up to 70 percent).

machine description

Machine Structure: - X-Y Precision Rack & Pinion - Direct Drive - Z Precision - Linear Drive Travel Drive Method: - X-Y-Z Simultaneous 3 Axes - Z-Axis Height Control Is Also Possible Maximum Work Piece Size: 120" X 60" Rated Output: 6000 Watts Table Pass Height: 34.6" Processing Access: Manual Door X-Axis Travel: 125.9" Y-Axis Travel: 62.9" Z-Axis Travel: 4.7" Rapid Travel X & Y-Axes (Single Axis): 4724 IPM Rapid Travel X & Y-Axes (Simultaneous): 6680 IPM Maximum Processing Feed Rate: 2360 IPM Drive Motor Type: Intelligent AC Servo Maximum Work Piece Weight: 2050 Lbs Approximate Machine Dimensions: 440.4"W X 190.3"D X 94.5"H Approximate Weight: 35,000 Lbs Approximate Installation Dimensions: 491.3" X 346.9" Floor Space Requirements: 1184 Sq. Ft. Machine Power Requirement: - 71 KVA - 3 Phase 208 VAC +/-5% 60 Hz - 202 Full Load Amps Resonator Unit Dimensions: 131.9"W X 78.1"H X 31.5"D Approximate Resonator Unit Weight: 6700 Lbs Chiller Power Requirements: - 56 KVA - 3 Phase 208 VAC +/-10% 60hz - 143 Full Load Amps
