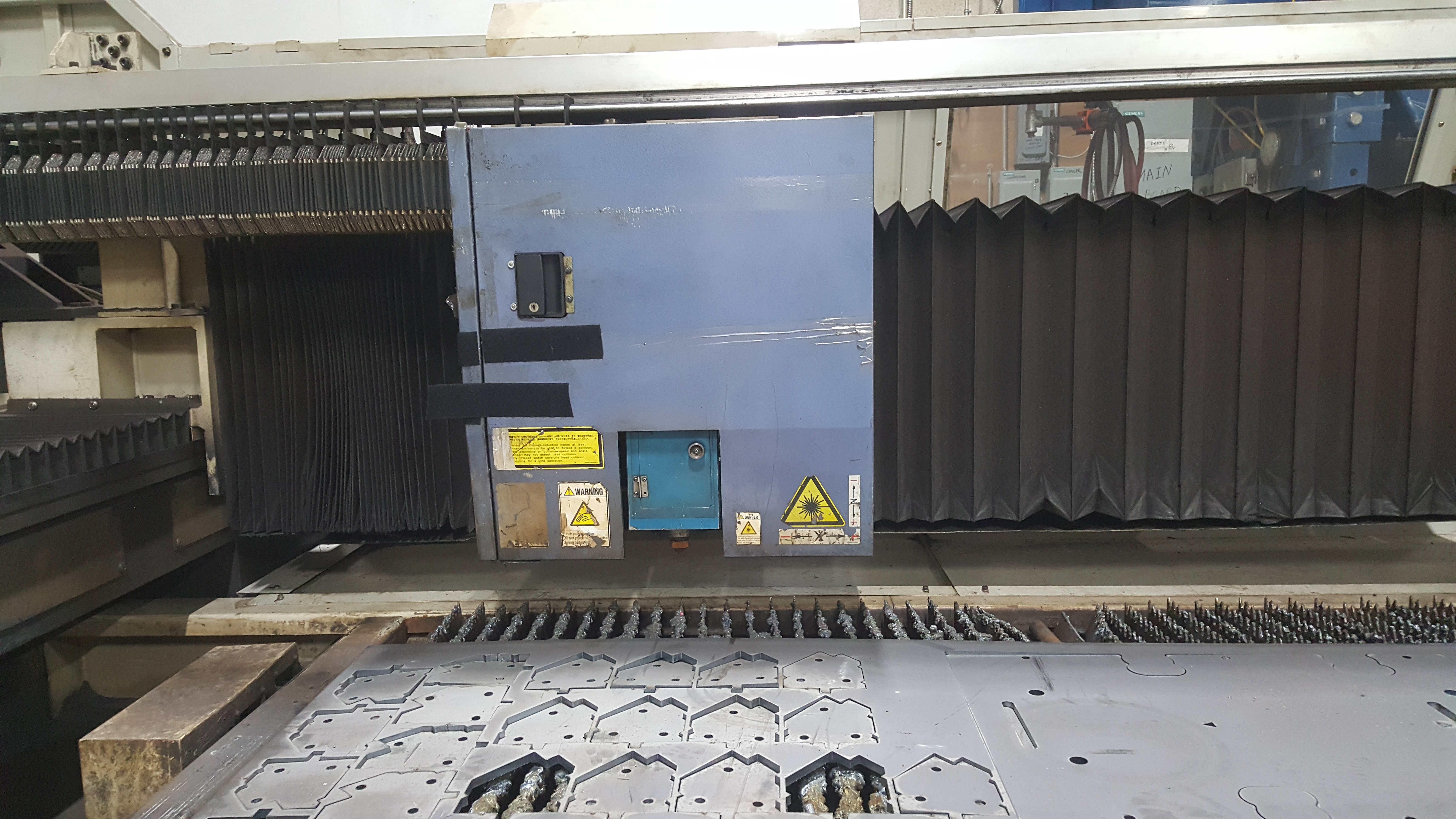

Mitsubishi ML 3015 LV Plus 2007

machine specifications

• Table Size - W:

  30"

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Motion System:

  Precision rack and pinion, direct drive

• Travel Drive Method:

  X,Y, Z simultaneous 3 axis control

• Maximum Work piece Size:

  120.08" x 60.04"

• Maximum processing feed rate:

  1180 IPM

• Maximum Workpiece Weight:

  2050 lbs.

• Table Pass Height:

  33.5"

• Single Axis:

  3345 IPM

• Simultaneous:

  4730 IPM

• Minimum Command Input:

  0.001mm/.0001"

• Drive Motor Type:

  intelligent AC servo

• Pallet Change Time:

  Approximately 25 seconds

• Pallet changer weight:

  4500 lbs.

• Pallet Changer Drive Mechanism:

  chain

• Electrical Requirements:

  208 VAC +/- 5%, 3 phase, 60 Hz

• Motion system, CNC control:

  71 KVA (total machine usage)

• Laser resonator:

  202 (Full load Amps)
