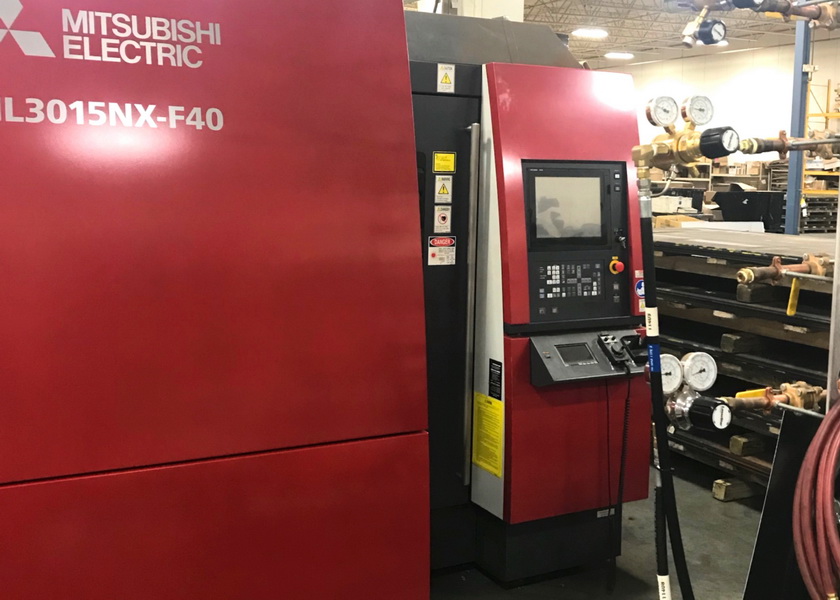

Mitsubishi NX-F 3015 2014

machine specifications

• Table Size - W:

  30"

• Chuck Size (Inches):

  8"

• Resonator ( Type ):

  55

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Max Output:

  4000 Watt

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Motion Drive System Design:

  Helical Rack & Pinion

• Processing Lens Focal Distance in.:

  4.0/8.0

• No. of control axes:

  3

• Machine Structure:

  X-Y Helical Rack & Pinion, Z Precision Linear Drive

• Travel Drive Method:

  X-Y-Z Simultaneous 3-axes (Z axis height control is also possible)

• Table Pass Height: in (mm) 34.6 (880):

  34.6

• Table Pass Height:

  34.6"

• Processing access:

  Manual Door

• Pallet Changer:

  Provided

• Rapid travel speed [X,Y]: in/min. (m/min.):

  4724 (120) single axis, 6680 (170) simultaneous

• Max. processing feedrate: in/min. (m/min.):

  2360 (60)

• Positioning Precision: in (mm):

  0.0019/20 (0.05/500) X, Y axis, 0.0039/4 (0.01/100) Z-axis

• Repeatable accuracy [X,Y]: in (mm):

  +/-0.00039 (+/-0.01)

• Drive Motor Type:

  Intelligent AC Servo

• Max. workpiece weight: lb (kg):

  2050 (930)

• Type:

  Self contained PC NC

• CPU:

  64-bit

• Display screen:

  15" TFT color LCD touch screen

• Hard disk:

  20.0 GB

• Generator output control:

  Output Power, Frequency, Duty

• Generator operation control:

  Beam ON/OFF, laser gas change, etc.

• Drive System:

  X,Y,Z simultaneous control

• Position detection system:

  Encoder

• Min. command unit: in (mm):

  0.0001 (0.001)

• Program input system:

  USB, Computer Link, Eternet LAN
