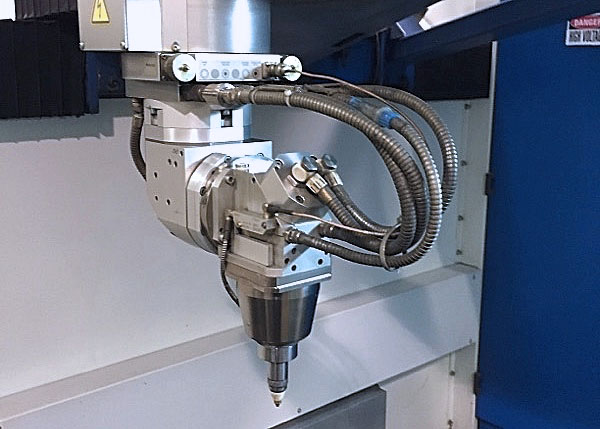

Trumpf TLC CUT 5 2004

machine specifications

• Bar Stock Capacity:

  2.0"

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• C - Axis Travel:

  n x 330 degree

• B-Axis Travel:

  100 degree

• X-Axis Speed:

  164.04'/min.

• Y-Axis Speed:

  164.04'/min.

• Z-Axis Speed:

  98.42'/min.

• C-Axis Speed:

  60 RPM

• B-Axis Speed:

  60 RPM

• X, Y and Z axes simultaneously:

  229.65'/min.

• Smallest program Increment:

  .001 degree

• Centrral positioning accuracy:

  .015 degree

• Central positioning variation:

  .005 degree

• Working height above the floor:

  27.55"

• Support Area:

  43.30" x 43.30"

• Maximum Load:

  1102.31 lbs

• Evenness:

  .0078" over 39.37"

• Hard disk memory:

  Siemens SINUMERIK 840D with NCU 573 processor

• Disk drive:

  10 GB for NC programs

• Platform:

  3.5"

• Color Monitor:

  PC with Windows NT 10.4" TFT display

• Modem:

  analog telephone connection 56 k Baud/s

• Network Card (Ethernet):

  100 Mbit/s

• Connection:

  RJ 45, max. 3.93: cable length

• Network Protocols Supported:

  NET BEUI, TCP/IP, Novell server, NFS file system
