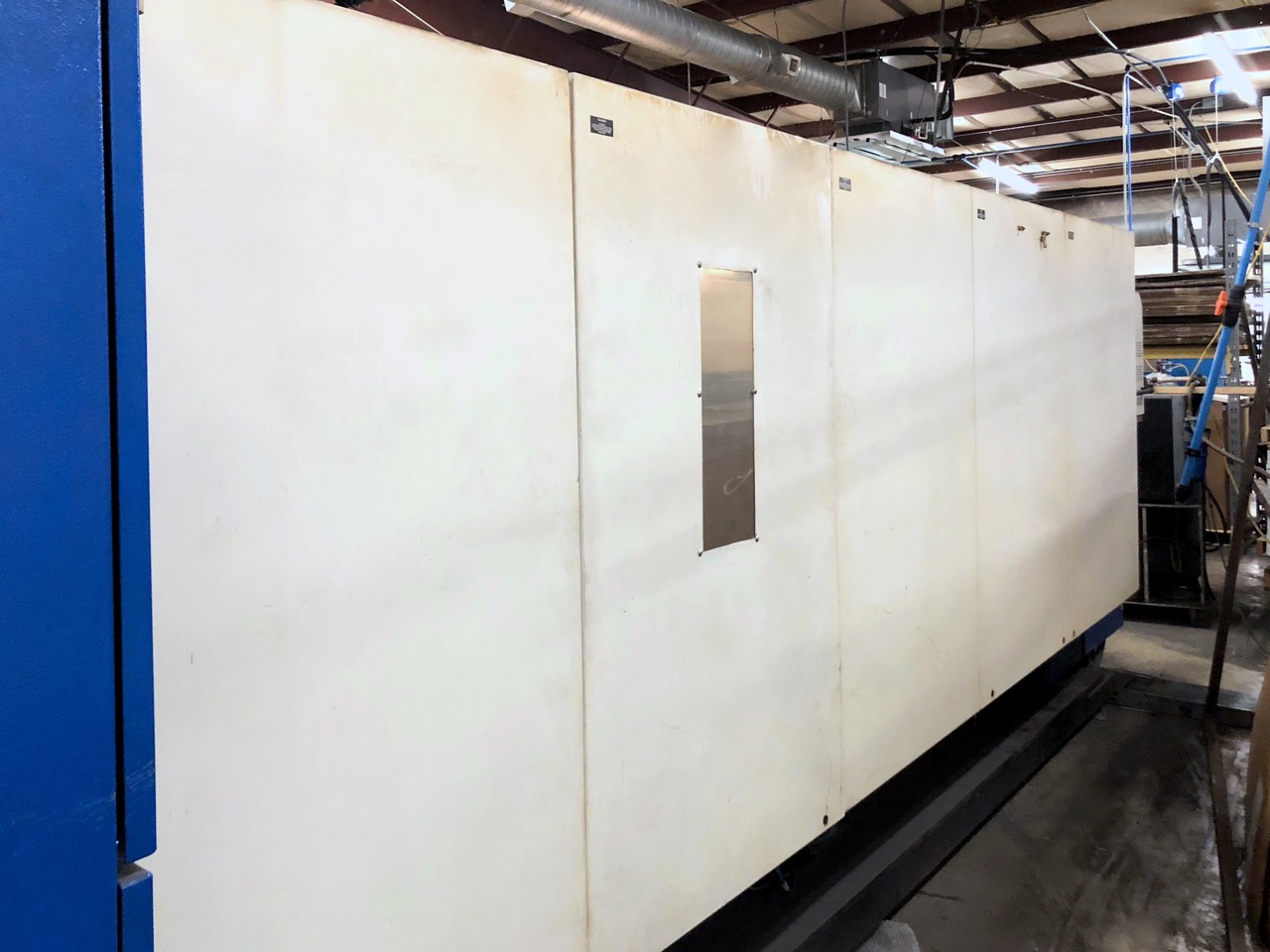

Trumpf Trumatic L2530 2002

machine specifications

• Tool Changer Type:

  60 ATC

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Number of Tables:

  (2) Auto Pallet Changer

• Max Workpiece Weight:

  1,100 lbs.

• Max Speeds Simultaneous:

  3,346 in/min

• Laser resonator:

  Trumpf RF TLF 3,200 watt

• Position deviation Pa:

  +/- 0.004 in.

• Average position range Ps:

  +/- 0.001 in.

• Repeatability PS:

  0.0012

• Max Cut Mild Steel:

  .750"

• Max Cut Stainless Steel:

  .375"

• Max Cut Aluminum:

  .250"
