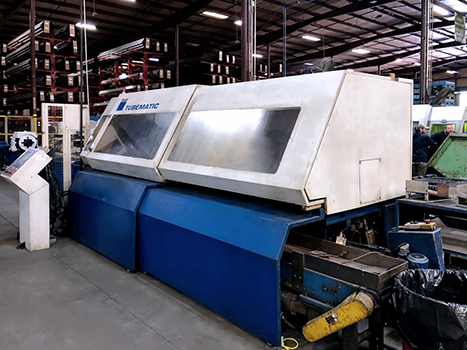

Trumpf Tubematic 3200 2005

machine specification

• LASER OUTPUT
• 3200 Watts

• LASER
• TFL 3200

• X-AXIS SPEED
• 656 IPS

• Y-AXIS SPEED
• 26 IPS

• Z-AXIS SPEED
• 26 IPS

• A- AXIS SPEED
• 720 DPS

• CONTROL
• Siemens Sinumerik

• MEDIA DISPERSION
• + -0.0023”

• POSITIONING PRECISION
• + -0.0078”

• MAX WORK PIECE (AT FINAL STATION)
• 55.11 lbs

• TUBE BUNDLE LOADER MAX WEIGHT
• 8,000 lbs capacity

• TUBE DIAMETER
• .78" (min.) - 5.90" (max.)

• TUBE LENGTH
• 5.55" (min.) - 256" (max.)

• DRIVES
• Digital three-phase servomotors (maintenance-free)

machine equipped with

• SIEMENS SINUMERIK 840D CONTROLLER
• TLF 3200 RESONATOR
• AUTO LOAD SYSTEM
• PART REMOVAL STATION
• CHILLER
• DUST COLLECTOR
