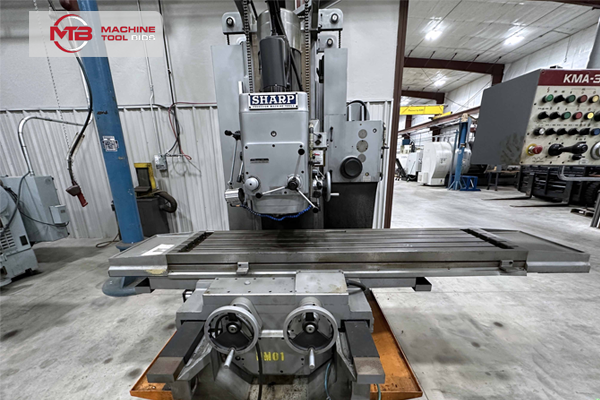

Sharp KMA-3H 2012

machine specifications

• Table Size:

  19-11/16 x 86-5/8 (W x L/In.)

• Vertical Spindle Taper:

  NMTB-50

• Number of spindle speeds:

  12 ( Vertical)

• Vertical Spindle Speed Range:

  45 - 1,500

• Horizontal Spindle Taper:

  NMTB-50

• Horizontal Spindle Speed Range:

  40 - 1,450

• Number of spindle speeds:

  12 (Horizontal)

• Coolant Pump Motor:

  (HP) 1/8

• Power Consumption:

  (Amps | Volts) 60 | 220 30 | 440

• Maximum Table Longitudinal Travel (X-Axis/In.):

  59

• Machine Weight:

  18,000 Lbs

• Maximum Table Cross Travel (Y-Axis/In.):

  23-5/8

• Dimensions:

  175 x 100 x 113 (W x D x H/In.)

• Maximum Vertical Spindle Head Travel (Z-Axis/In.):

  27-1/2

• Maximum Horizontal Spindle Head Travel (Up - Down/In.):

  25-1/2

• Maximum Distance Vertical Spindle Nose to Table Surface (In.):

  31-1/2

• Minimum Distance Vertical Spindle Nose to Table Surface (In.):

  4

• Maximum Distance Vertical Spindle Center to Column Surface (In.):

  21-5/8

• Maximum Distance Between Horizontal and Vertical Spindle Centers (In.):

  21-5/8

• Range of Vertical Spindle Head Feed Rate (IPR):

  .002 - .008

• Table Rapid Traverse Feed Rate (X-Axis/IPM):

  129-7/8

• Range of Table Longitudinal Feed Rate (X-Axis/IPM):

  1.12 - 39.37

• Table Rapid Traverse Feed Rate (Y-Axis/IPM):

  129-7/8

• Range of Table Cross Feed Rate (Y-Axis/IPM):

  1.12 - 39.37

• Horizontal Head Rapid Traverse Down Feed Rate (IPM):

  150

• Table T-Slots and Size (No. | W x P/In.):

  5 | 3/4 x 3-9/16

• Vertical Spindle Motor (HP):

  17-1/2

• Horizontal Spindle Motor (HP):

  7-1/2

• Table Longitudinal Rapid Feed Motor (HP):

  4.7

• Table Vertical Rapid Feed Motor (HP):

  1.14
