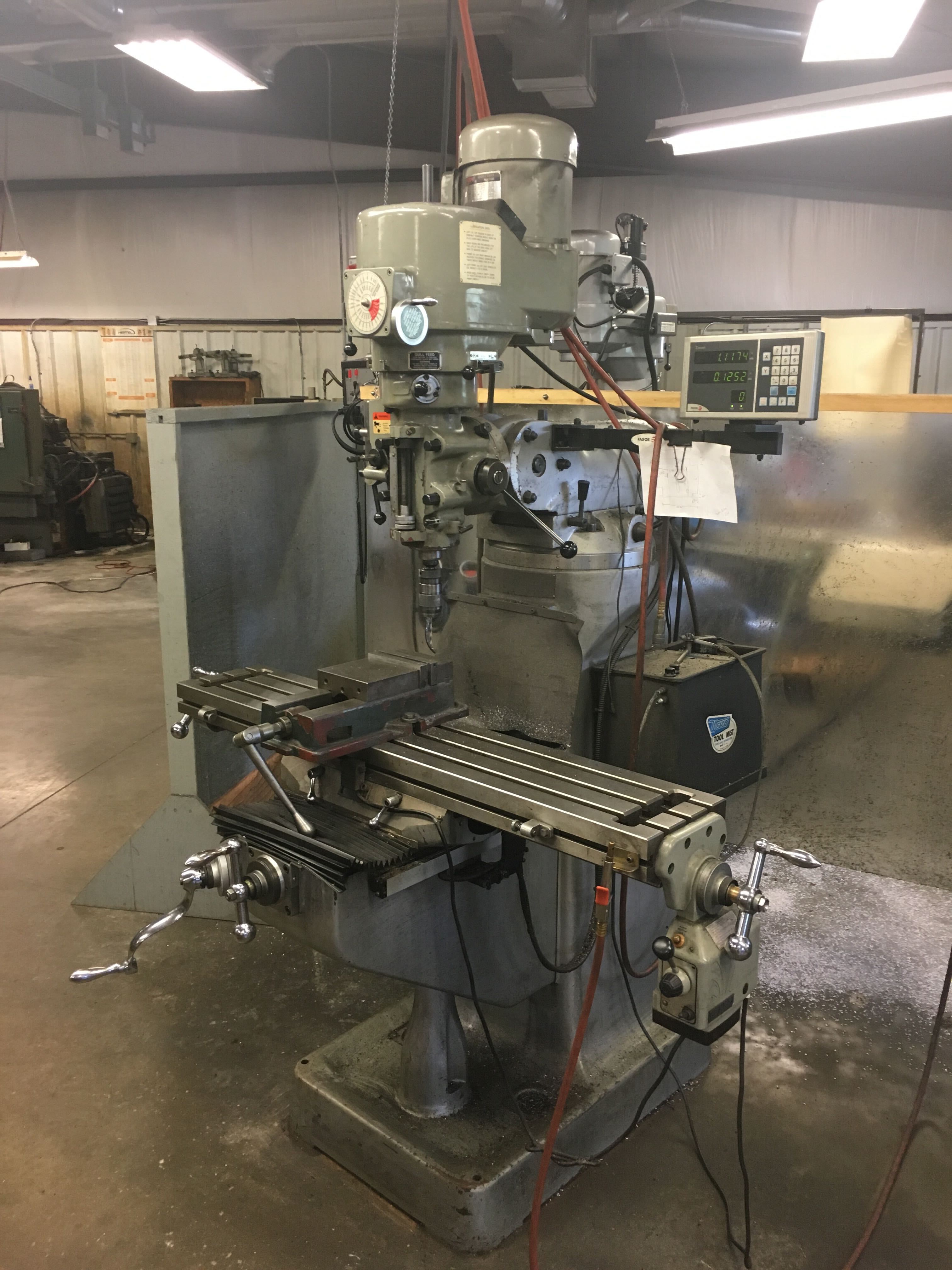

Sharp LMV-50 2010

machine specifications

• Table Working Surface:

  9" x 50"

• T-slots Number/Spacing/Width:

  3 slots, 5/8"

• X,Y,Z, Traveling Position Accuracy:

  37" x 12" x 5"

• Ram Travel:

  12"

• Knee Travel:

  16"

• Spindle Nose Taper:

  R8

• Head Swivel:

  360 degrees

• Spindle To Column(Min.-Max.): :

  6 3/4" - 18 1/2"

• Head tilt (Left-to-Right):

  45 Degrees

• SPINDLE NOSE TO TABLE (MIN. – MAX.)::

  2 1/8 – 18

• Head tilt (Front-to-Back / Up-Down):

  45 Degrees

• Spindle Motor:

  3HP / 220v, 440v/ 3ph

• Variable Speed:

  (60 - 4,500RPM)

• Dimensions:

  84" x 78" x 81" H

• Spindle Variable Speed Drive::

  60 – 4,500 RPM

• Weight:

  2,500 LBS

• Quill Feed 3 Speed (IPR)::

  .0015", .003", .006"

• Standard Features::

  R-8 Spindle

• Standard Features::

  Meehanite Casting

• Standard Features::

  Chromed Ways

• Standard Features::

  Self-Lubricating Motor Shaft Extends Pulley Life

• Standard Features::

  One Shot Lube Systems (X, Y, Z Axes)
