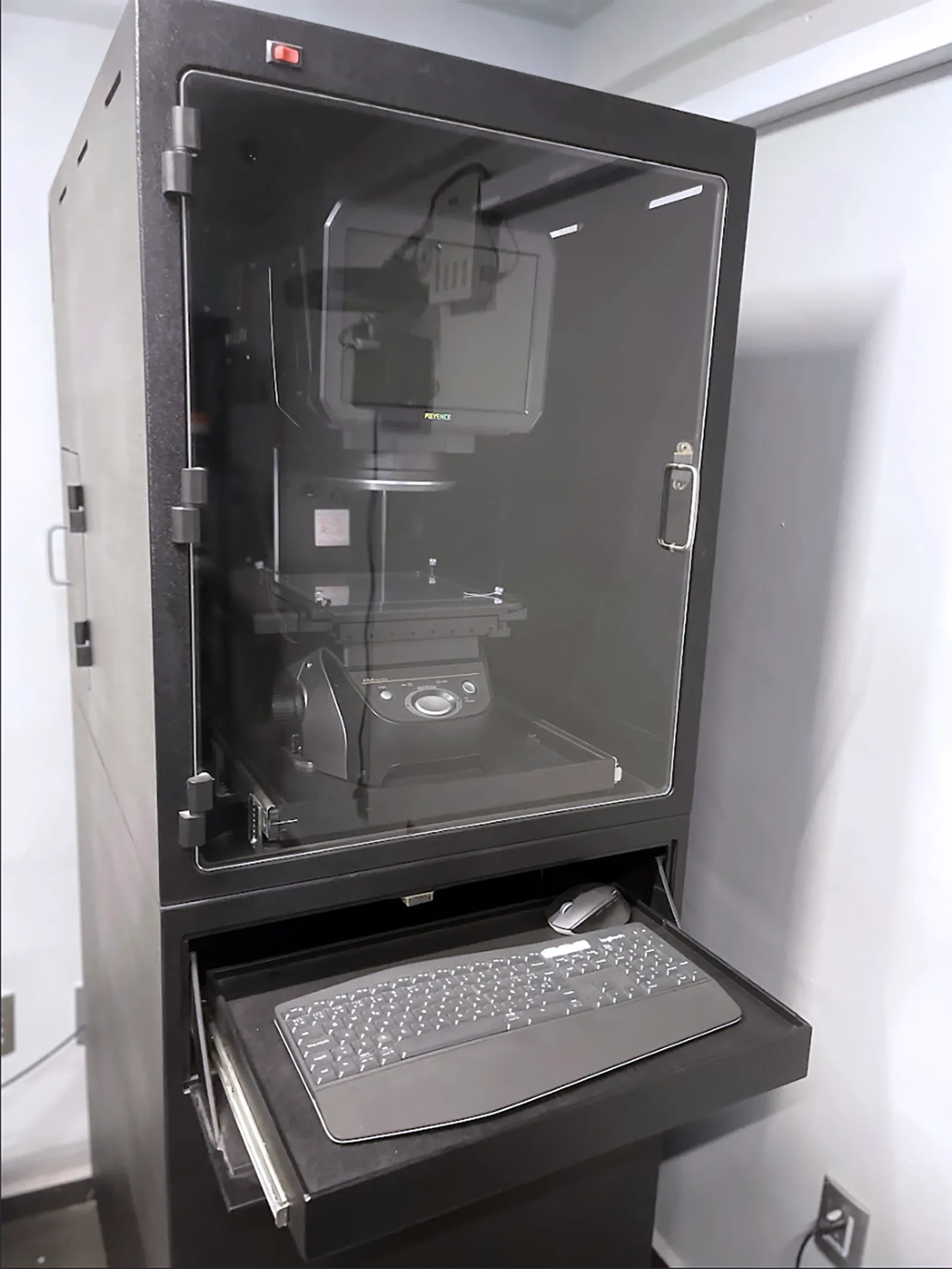

Keyence IM-7010 2019

machine specifications

• Type:

• Image Sensor:

  1” 6.6 mega pixel monochrome CMOS

• Display:

  10. 4” LCD monitor (XGA: 1024 × 768)

• Receiver Lens:

  Double telecentric lens

• Image:

  measurement

• Field of view:

• Field of view - Wide field measurement mode:

  200 mm x 200 mm 7.87 × 7.87" (4x R50)

• Field of view - High precision measurement mode:

  125 × 125 mm 4.92 × 4.92"

• Minimum Display Unit:

  0.1 µm

• Repetition Accuracy:

• Repeatability-W/o stage movement:

• W/o stage movement-Wide field measurement mode:

  ±1 µm

• W/o stage movement-High precision measurement mode:

  ±0.5 µm

• With stage movement:

• With stage movement-Wide field measurement mode:

  ±2 µm

• With stage movement-High precision measurement mode:

  ±1.5 µm

• Measurement accuracy:

  (±2σ)

• W/o binding:

• W/o binding-Wide field measurement mode:

  ±5 µm *1

• W/o binding-High precision measurement mode:

  ±2 µm*2

• With binding:

• With bindin-Wide field measurement mode:

  ± (7+0.02 L) µm*3

• With bindin-High precision measurement mode:

  ± (4+0.02L) µm*4

• External remote input:

  Non-voltage input (with and without contact)

• External output:

  OK/NG/FAIL/MEAS

• PhotoMos output:

• Rated load 24 VDC 0.5 A:

• ON resistance 50 mΩ or lower:

• Interface:

• LAN:

• RJ-45 (10BASE-T/100BASE-TX/1000BASE-T):

• USB 3.1:

• 4 ports (rear: 4):

• USB 2.0 series A:

• 2 ports (front: 2):

• Record - Hard disk drive:

  500 GB

• Illumination system:

  Transparent

• Illumination System Transparent Telecentric Transparent Illumination:

• Telecentric transparent illumination:

• Ring:

• Four division ring illumination:

• XY stage - Moving Range:

  100 × 100 mm 3.94 × 3.94" (electric)

• Withstand load:

  5 kg

• Z stage - Moving range:

  75 mm 2.95" (electric)

• Power Supply:

• Power voltage:

  100 to 240 VAC 50/60 Hz

• Power Consumption:

  430 VA or lower

• Environmental resistance:

• Pollution Degree:

  2

• Overvoltage Category:

  II

• Ambient Temperature:

  +10 to +35 °C 50 to 95 °F

• Relative Humidity:

  20 to 80 % RH (No condensation)

• Weight:

  Approx. 30 kg
