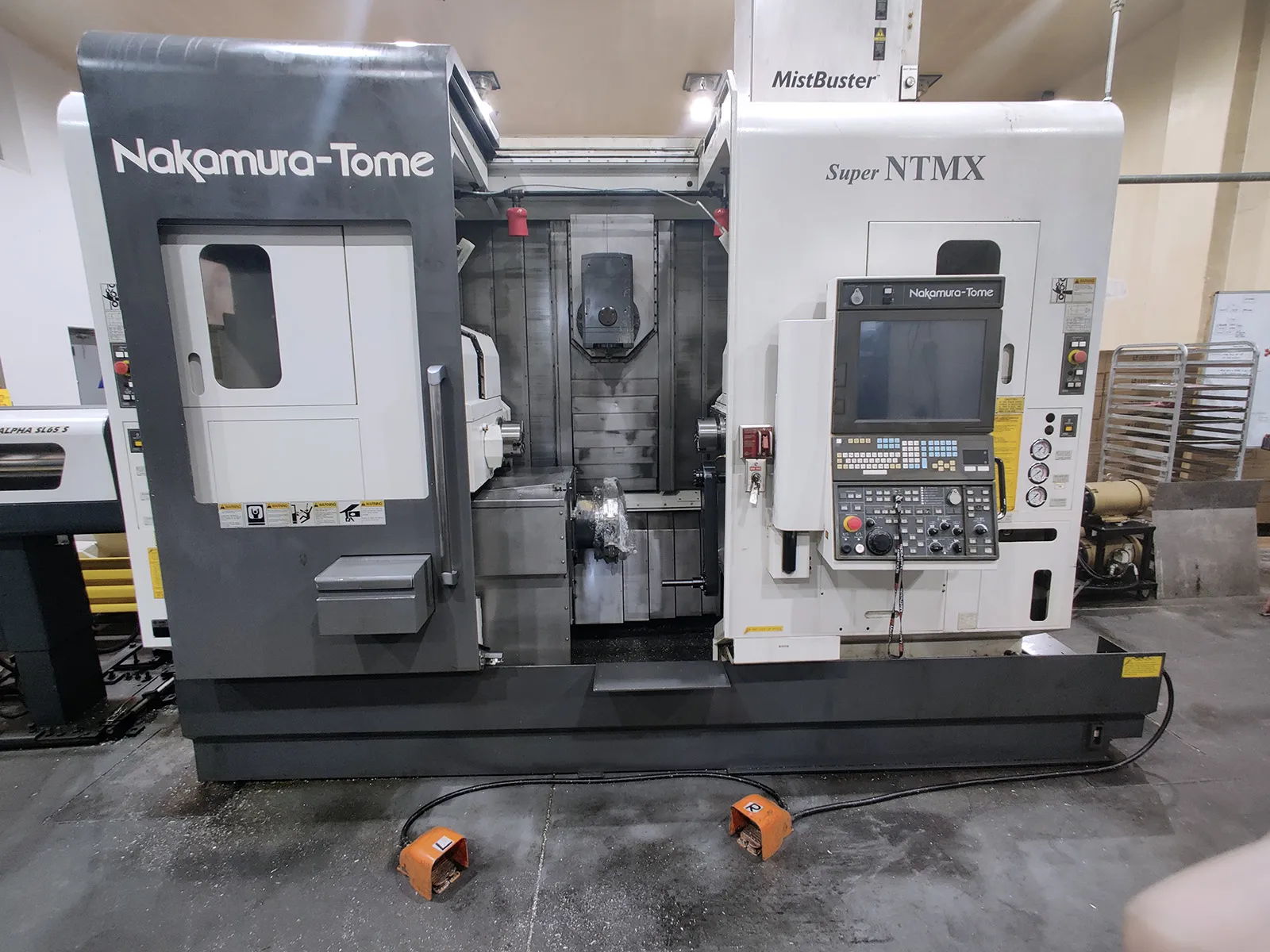

Nakamura Tome SUPER NTMX 2013

machine equipped with

• FANUC 31i-A5 2PATH CNC CONTROL

• LNS ALPHA SL65-S BAR FEEDER (2014)

• 9-CONTROLLED AXES

• 5-AXES SIMULTANEOUS MACHINING (UPPER X1 Z1 C1[C2] Y B1)

• 4-AXES (LOWER X2 Z2 C2[C1] B2)

• SIMULTANEOUS TURNING UPPER & LOWER TURRETS

• 48 ATC (24 ATC MAGAZINE UPPER/24 ATC MAGAZINE LOWER)

• THRU-SPINDLE COOLANT

• HIGH PRESSURE COOLANT (1000 PSI)

• RENISHAW NC4 LASER TOOL SETTER (SETTING UPPER TOOLS)

• SRP3 TOOL PRESETTER (SETTING LOWER TOOLS)

• PART CONVEYOR

• PARTS CATCHER

• SPINDLE CHILLER

• MIST BUSTER MIST COLLECTOR

• FIRE SUPPRESSION SYSTEM

• LOWER TURRET (14 HOLDERS):

• (2) DRIVEN 90 DEGREE ER16 HOLDERS

• (5) BORING BAR HOLDERS 1” DIA

• (2) BORING BAR HOLDERS 1.25 DIA

• (5) STICK TOOLING BLOCK

• MILLING HEAD (63 HOLDERS):

• (15) C4 EXTENSIONS

• (6) ER16 HOLDERS (ULTRA-HIGH-PRECISION)

• (15) ER20 HOLDERS

• (10) ER32 HOLDERS (LYNDEX NIKKEN)

• (4) INTERNAL BORING TOOL HOLDERS (PH HORN)

• (1) PRECISION BORING HEAD

• (2) CUTOFF BLADE HOLDER

• (2) OD TURNING HOLDERS

• (1) SIDE-LOC HOLDER

• (1) BORING BAR HOLDER

• (6) SHRINK FIT HOLDERS
