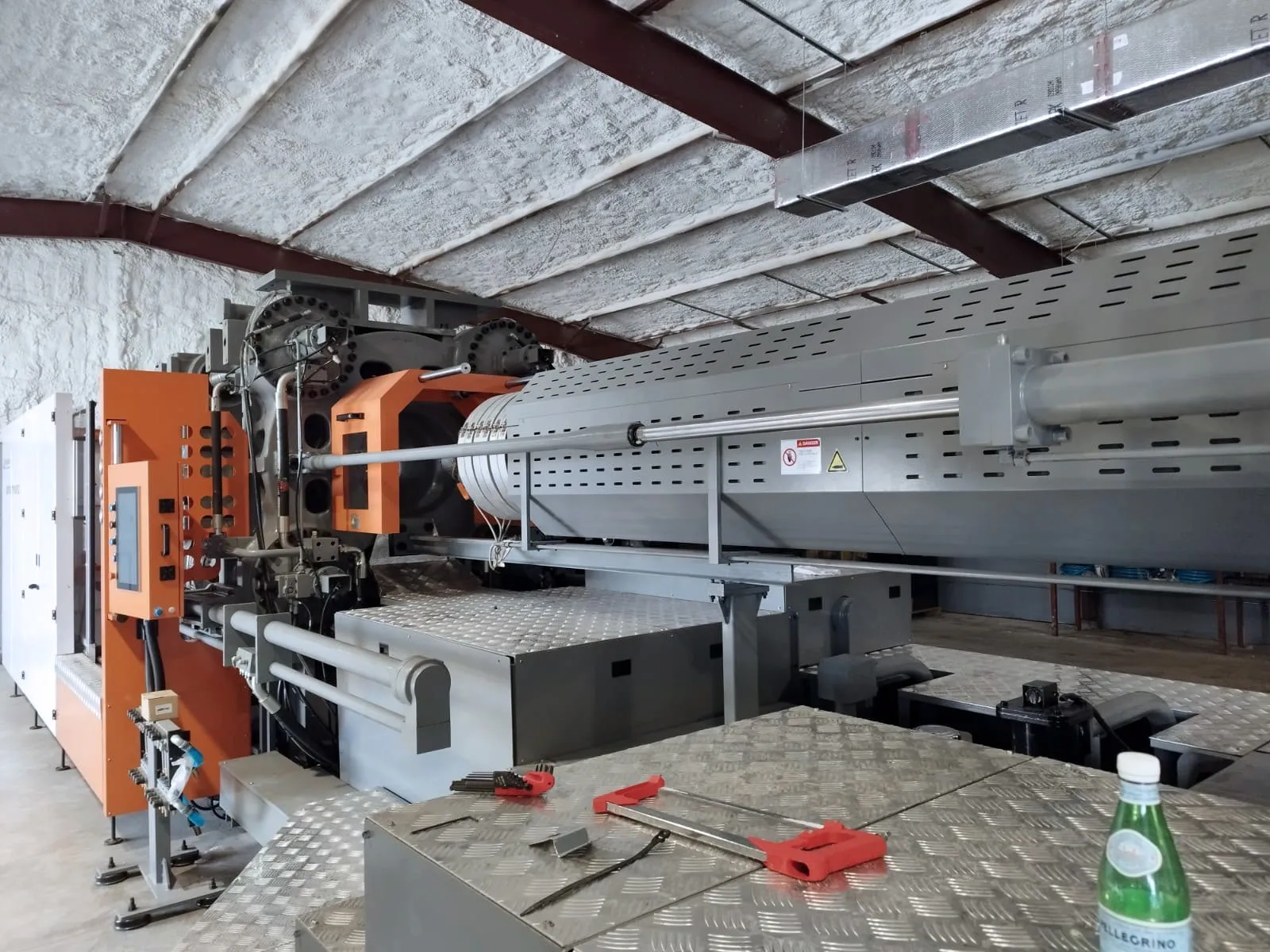

CHEN HSONG SM700-TP-SVP/2 (D2) Supermaster TP Series 2024

machine specifications

• Hours:

  Less than 200 Hours

• Clamping Force:

  770 Ton (700 Metric Tons)

• Clamp Style:

  Two-Platen (TP) Servo Hydraulic

• Shot Weight:

  39,801g (1,404 ounces)

• Screw Diameter:

  D2 (225 mm) – High‑Volume / Large‑Shot

• Screw L/D Ratio:

  19.6

• PLATEN SIZE:

  59" × 59" (1,500 × 1,500 mm)

• Tie‑Bar Spacing:

  1,020 × 1,020 mm (40.15" × 40.15")

• Mold Thickness (Min/Max):

  15.7" – 43.3" (400 – 1,100 mm)

• Max Mold Weight:

  24,250 lbs (11 metric tons)

• Opening Stroke:

  2,300 mm (90.5")

• Maximum Daylight:

  2,300 mm (90.5")

• Ejector Stroke:

  280 mm (11.0")

• Ejector Force:

  22 metric tons

• Injection Stroke:

  1,100 mm (43.30")
