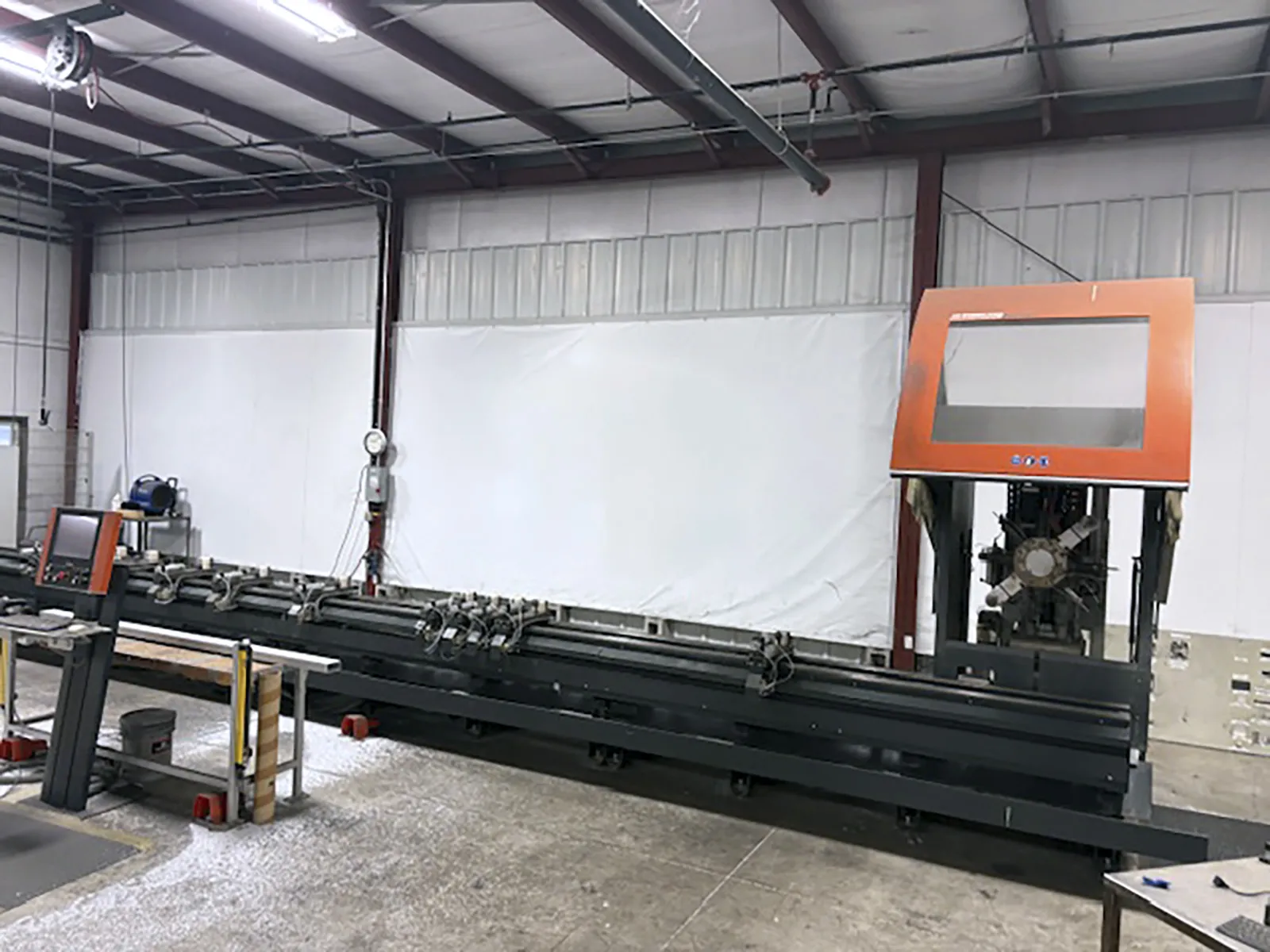

Elumatec SBZ130 CNC_3752582

Elumatec SBZ130 2013

CNC 3-Axis Profile machine| 2013

request quote

Open price not currently available. Please Contact Us

  • MODEL: SBZ130

  • CONTROL: Elumatec

  • REF #: 3752582

machine specifications

  • Axes:

    3- Axis

  • X-Travel:

    401.2" (10200mm)

  • Y-Travel:

    19.1" (485mm)

  • Z-Travel:

    13.4" (340mm)

  • Max Machining Length:

    401.6"

  • Rapid Traverse Speed:

    2362 in/min (approx 197 ft/min)

  • --Spindle --:

    15000 RPM (high speed spindle option)

  • spindle power:

    7.4 HP

  • Pneumatic Requirements:

  • Air Pressure:

    7 bar

  • Air Consumption:

    100 L/min

  • Electric Requirements:

    480V / 3-phase / 60 Hz

  • Approx Weight:

    8000 kg

  • Commonly used for:

  • Window and door profile machining:

  • Curtain wall fabrication:

  • Storefront systems:

  • Commercial Glazing Systems:

  • Architectural aluminum fabrication:

machine equipped with

  • Windows platform XP-version
  • Servo axis for 8-fold tool changer
  • Absolute encoder for all axes
  • Two sectional clamping system
  • 1 Material stop tilting pneumatically left side
  • 1 Material stop lowerable pneumatically- approx. middle
  • Automatic recognition of clamping position
  • Automatic clamping movement
  • 8-way pulsed spray coolant system
  • Shaving trough
  • 2 Light barriers for operator protection
  • Protection fence left and right as standard
  • Material clamping:12 pieces
  • USV unit (power supply without interruption)
  • Mobile operation terminal
  • Cooling device in the control cabinet

machine description

The Elumatec SBZ130 CNC (2013) profile machining center is designed for high-speed, automated drilling, milling, and tapping of aluminum, steel, and PVC profiles. Ideal for window and door production, curtain walls, storefronts, and glazing systems. Ensures precision machining on multiple sides while protecting surfaces ¡Perfect for architectural and industrial fabrication!
