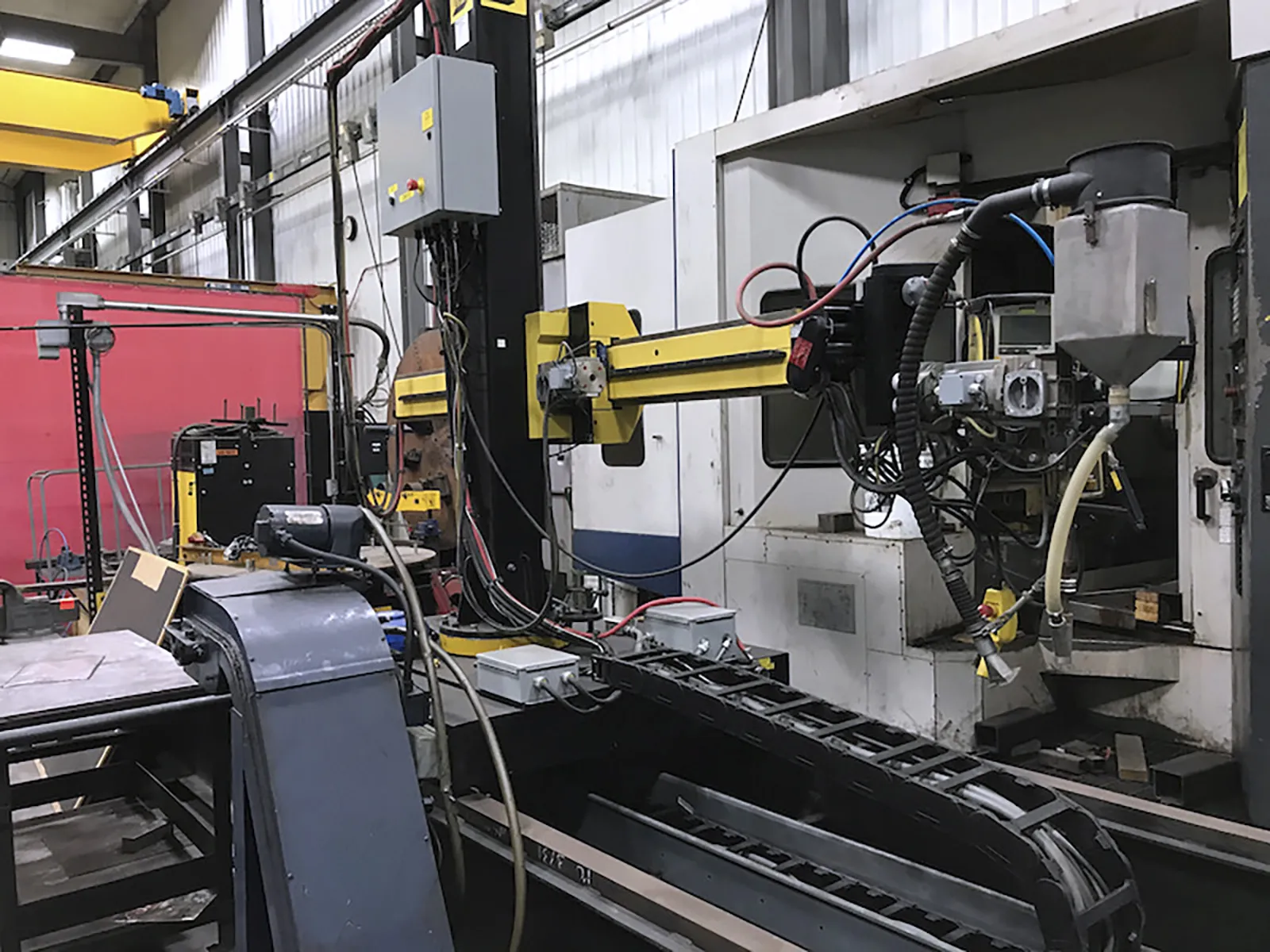

Esab CCaB22-VLS-TC Column & Boom 2014

machine specifications

• Boom Length:

  114”

• Minimum/Maximum under boom:

  33.5” / 78.75”

• Boom range horizontal:

  78.75”

• Overall Height:

  124”

• -LAF 1001 remote controlled 3-phase welding power source.:

• -PEK Control unit for power source for submerged arc welding:

• -LJ TRN20-100 Turntable:

• Load Capacity:

  40,000 Lbs.

• Table Diameter:

  48”

• Speed Range:

  0.2 – 2 RPM

• (3) Weld Engineering weld rod heaters:

• -LJ 45P Welding Positioner:

• Load capacity at the mounting plate:

  10,000 Lbs.

• Nominal turning torque:

  120,000 in-Lbs.

• Speed Ranges:

  0.1 – 1.5 RPM

• Rotation axis height range:

  42” – 96” in 6” increments

• Footprint: (W x D x H):

  86” x 72” x 111”

• Base weight:

  2,100 Lbs.

• Head weight:

  2,900 Lbs.

• UHD-200 SJ Riser Stand:

• Capacity:

  16.000 Lbs. for 8” – 60” Pipe
