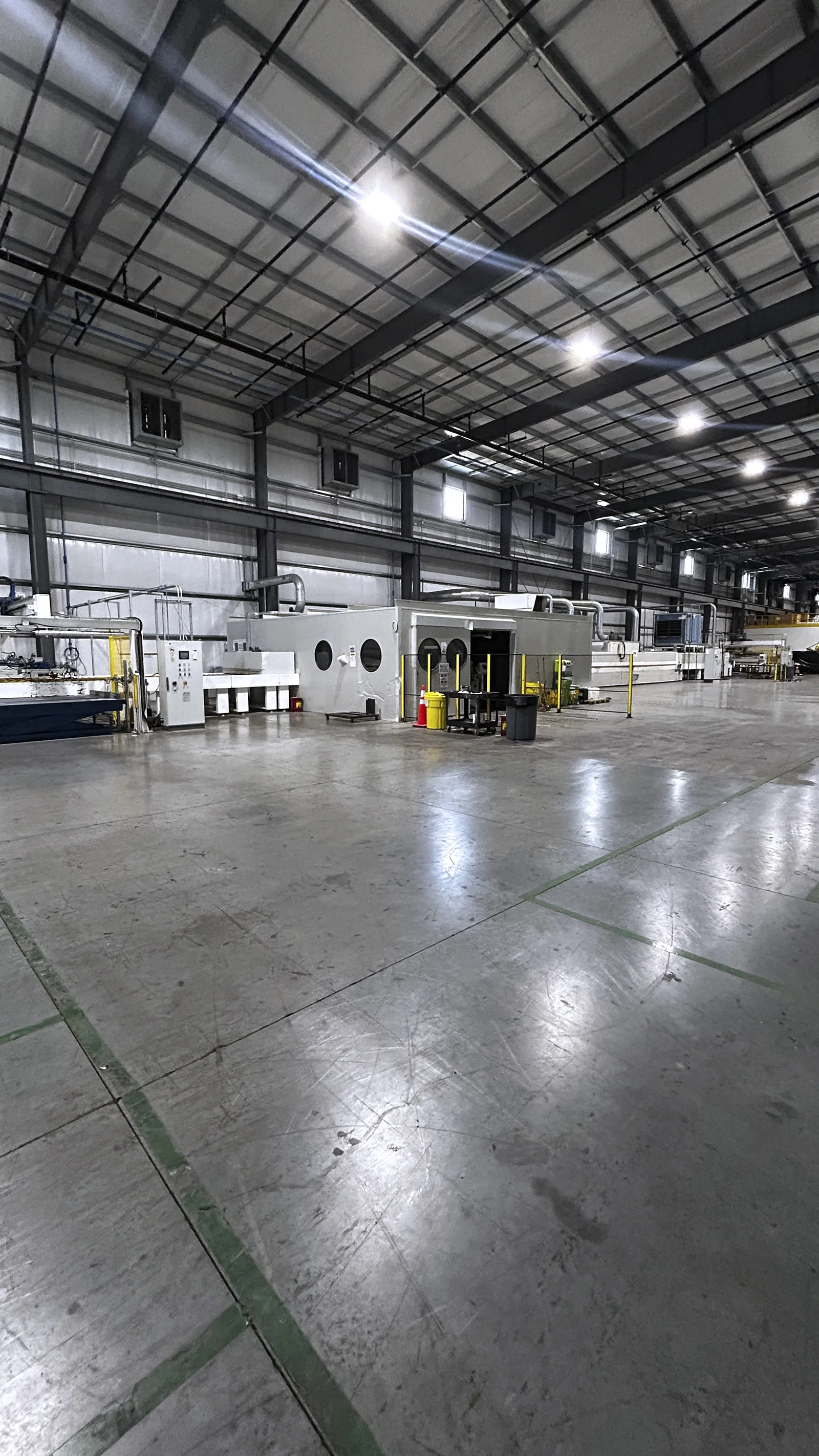

CML New Finishing Paint Line_3737871

CML New Finishing Paint Line 2016

Huge Paint Line

request quote

Open price not currently available. Please Contact Us

  • MODEL: Paint Line

  • CONTROL: Fanuc, Siemens, Schneider Controls

  • REF #: 3737871

machine specifications

  • Maximum Sheet Width:

    78.74" (2000 mm)

  • Minimum Sheet Width:

    27.56" (700 mm)

  • Maximum Sheet Length:

    118.11" (3000 mm)

  • Minimum Sheet Length:

    27.56" (700 mm)

  • Max Vacuum Loading cycle:

    5 cycles/min

  • Total Heating Power:

    90 kW

  • Lamp Array:

    (30) Infrared QRT Curing Lamps

  • Electrical Requirements:

    460V | 3-Phase

machine equipped with

  • The system is sold with New Oven and Robots to speed up production. Not currently installed
  • Station 1: Automated Vacuum Loading System (Feeder)
  • Station 2: Entrance Roller Conveyor
  • Station 3: Integrated Sheet Washer
  • Station 4: Pre-Heating Station (QRT-3)
  • Stations 5 & 6: Dual CML Zenith-50 Roller Coaters
  • Station 7: Double Belt Rotation Conveyor
  • Station 8: Inclined Alignment Conveyor
  • Station 9: Transfer Conveyor
  • Station 10: High-Capacity Drying & Curing Tunnel
  • Station 11: Cooling Tunnel
  • Station 12: Alignment Conveyor
  • Station 13: Automatic Film Laminator (Plastificatrice)
  • Station 14: Automated Vacuum Stacking System
  • Infrared Heating Technologies INOX Conveyor Oven (BRAND NEW)
  • Fanuc M-410ib Robot
  • Fanuc M-710iC Robot
  • Fanuc System R-J3iB Plus
  • Fanuc - Siemens and Schneider Controls

machine description

The 2016 CML / New Finishing automated paint line with Fanuc, Siemens, and Schneider controls is engineered for high-precision coating of complex 3D wood and PVC components. Ideal for doors, windows, frames, and CLT panels, this vertical finishing system features advanced robotic and oscillating spray guns for uniform application of water- or solvent-based paints. Designed for efficient, high-volume industrial finishing operations.
