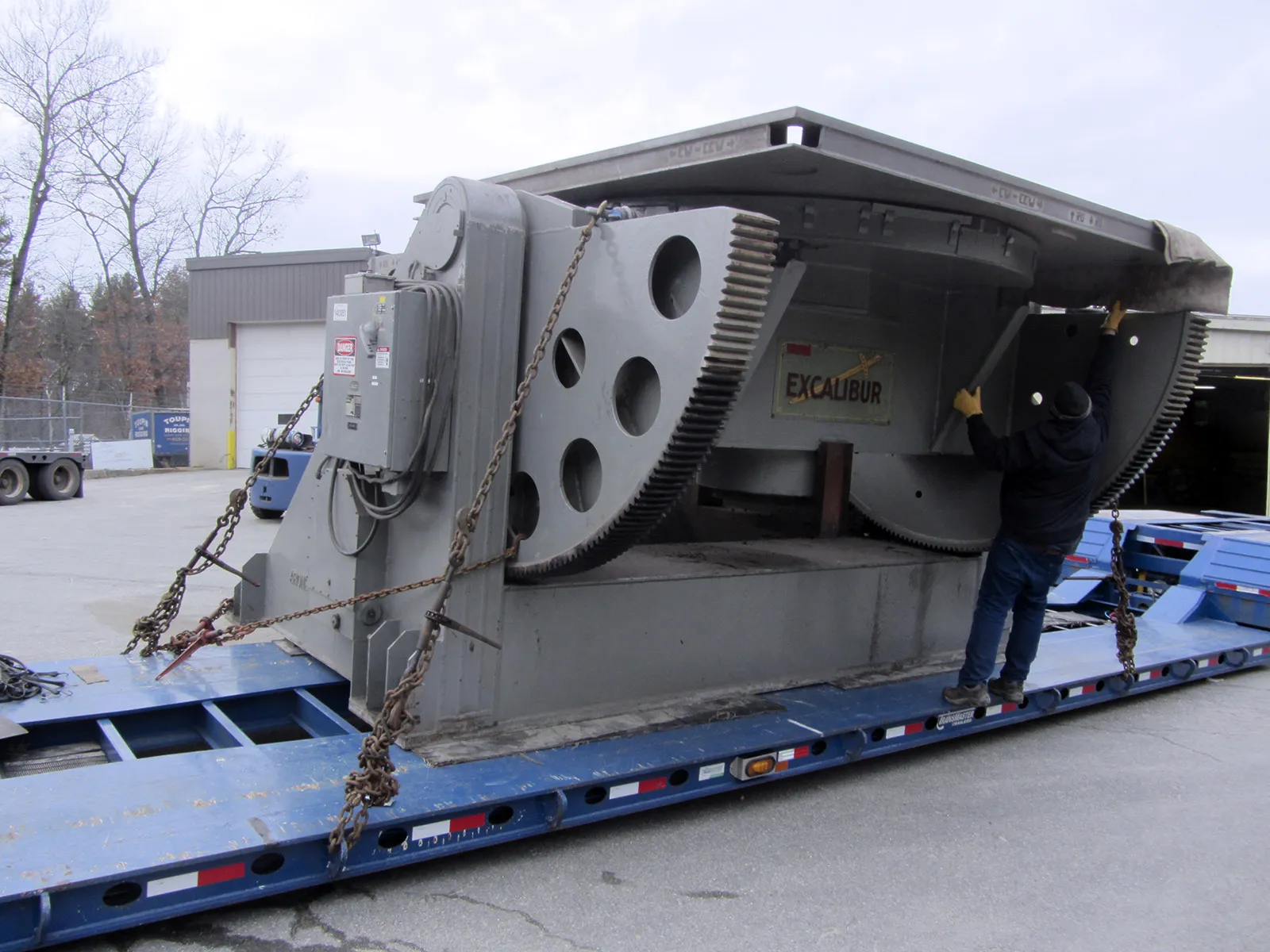

Koike Aronson G3500 1960

machine specifications

• Tilt Load Torque:

  9,300,000 lb/in (107,368.5 kg/m)

• Rotation Load Torque:

  2,640,000 lb/in (30,479.8 kg/m)

• Rotation Rating:

  220,000 lbs (99,790 kg) at 12in (304.8 mm)

• Tilt Speed:

  90-degree tilt in 300 seconds

• Tilt Brake-Motor:

  25 hp

• Rotation Speed:

  0.35 to 0.006 rpm

• Standard Primary Voltage:

  460V / 3-phase / 60Hz

• Weld Current Conduction:

  Guaranteed up to 3,000 amps

• Table Size:

  120 x 120 in (3,048 x 3,048 mm)

• Max Clamping Diameter:

  157 in (3,988 mm)

• T-Slots:

  (8) 2 1/8 in (54 mm) slots

• Spindle / Taper Roller Bearing Bore:

  20 in (508 mm)
