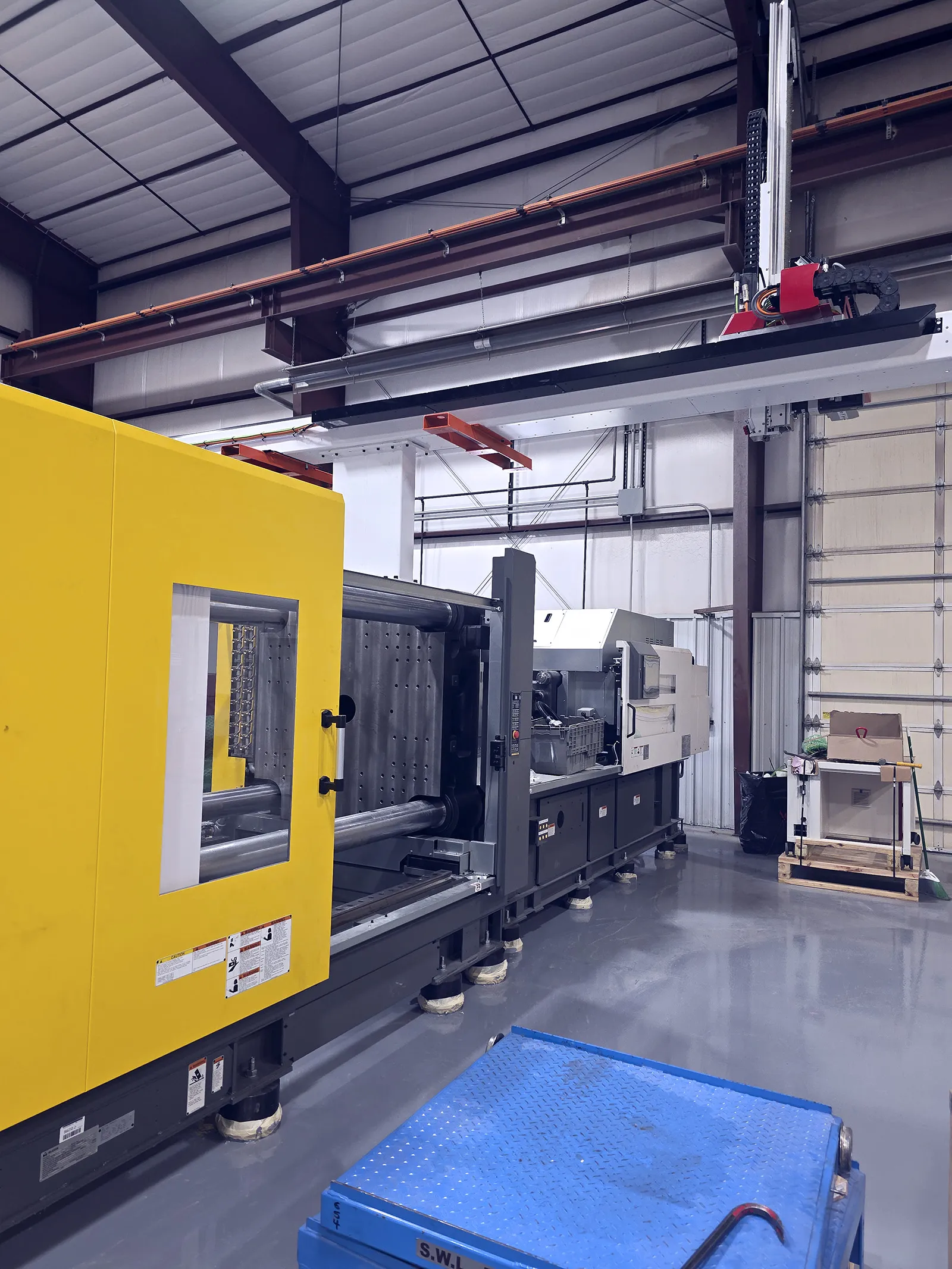

Milacron-Fanuc Roboshot α-S450iA 2020

machine specifications

• Shot Size:

  944

• Clamping Force:

  450 ton

• Clamping mechanism :

  Double Toggle

• Clamp Stroke:

  900 mm

• Tie Bar Spacing:

  920 × 920 mm (about 36.2" × 36.2")

• PLATEN SIZE:

  1300 × 1300 mm (about 51.2" × 51.2")

• Minimum Mold Size:

  535 × 535 mm

• Die Height (Double Platen):

  1000 / 350 mm (max/min)

• Ejector Stroke:

  250 mm

• Max Ejector Force:

  150 kN (15.0 tonf)

• Injection Unit (varies by screw size):

• Screw Diameters:

  68 / 72 / 80 / 90 / 100 mm

• Injection Stroke:

  260 mm (68/72mm screws) or 360 mm (80/90/100mm screws)

• Max Injection Volume:

  944 to 2827 cm³ (depending on screw)

• Max Injection Speed:

  180 mm/s

• Max Injection Pressure:

  160–280 MPa

• Max Pack Pressure:

  130–280 MPa

• Max Injection Rate:

  654–1414 cm³/s

• Max Screw Rotation Speed:

  200 min⁻¹ (rpm)

• Approx. Machine Weight:

  29.7 tons
