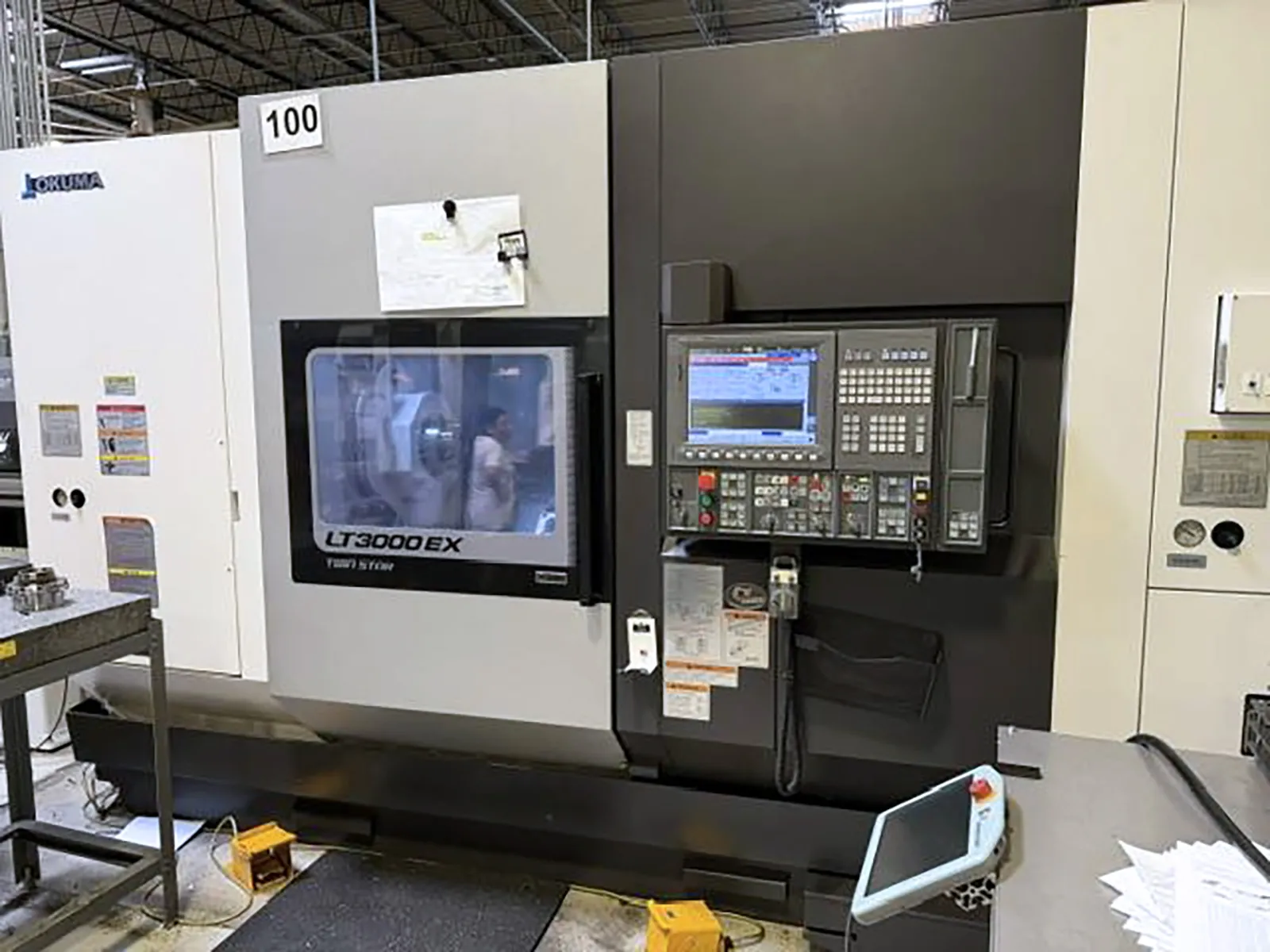

Okuma LT3000-EX-3T3MY 2021

machine specifications

• Swing over Bed:

  21.65"

• Swing Over Saddle:

  21.65"

• Distance between Spindle Noses:

  47.24"

• Max Recommended Turning Diameter:

  17.7"

• Max Recommended Turning Length with Std Chuck(s):

  34.02"

• Travel X-Axes (All Turrets):

  10.04"

• Travel Y-Axes (when Equipped):

  4.92" (+2.755" / -2.165")

• Travel ZA-Axis (Upper Turret- 2 Turret Model- Upper Left Turret- 3 Turret Model):

  18.9"

• Travel ZB-Axis (Lower Turret):

  36.61"

• Travel ZC-Axis (Upper Right Turret 3 Turret Model):

  18.9"

• Travel W-Axis (Right-Spindle):

  37.01"

• Rapid Travel IPM X-Axis:

  1181

• Rapid Travel IPM Y-Axis:

  788

• Rapid Travel IPM Z-Axis:

  1574

• Rapid Travel IPM W-Axis:

  1574

• Big Bore Configuration with Motor Upgrade & Actuator / Drawtube:

  14,690

• Spindle Motor Power:

  30 / 20 Hp

• Spindle Max Torque (30 Min / Cont.):

  315 / 207 Ft-Lbs

• Spindle Nose:

  A2-8

• Speed Range:

  50 - 4200 Rpm

• Spndle Bore Diameter:

  3.58” Spindle Bore

• Spindle bearing inner diameter:

  5.51” ID

• Turret clamping:

  Hydraulic clamping (non-lift)

• Turret Indexing Time:

  1 sec / Station ( 1.4 sec. / 180 degree index )

• M-spindle motor power (2 min. / cont.) PREX:

  9.5/5.5 HP 7.1/4.1 kW

• M-Spindle Speed Range:

  50 ~ 6000 rpm

• Max. collet grip diameter:

  Æ0.75 in

• Coolant Tank Capacity (Gals):

  88.8

• Power Requirement 208 Volts kVA without Optional Equipment Std-Bore Spindles Both:

  59.4

• Power Requirement 208 Volts kVA without Optional Equipment Big-Bore Spindles Both:

  77.4

• Floor Space Required W x D x H (without Chip Conveyor):

  157" x 108" x 105"

• Weight (lbs.):

  29260
