Name: JPW Industrial C2-83-139TULEP480V45-60KW 2023
Brand: JPW Industrial
Availability: InStock

JPW Industrial C2-83-139TULEP480V45-60KW 2023

40' conveyor| 200°C max temp

request quote

Open price not currently available. Please Contact Us

MAKE: JPW Industrial
YEAR: 2023
TYPE: Ovens and Heat Treatment

MODEL: C2-83-139TULEP480V45-60KW
CONTROL: JPW Industrial
REF #: 3766555

machine specifications

Max Temp:

200°C
Conveyor Width:

42"
Conveyor Length:

40'
Conveyor Max Load:

2,000 lb
Two independently controlled zones:
Zone 1:

70–100°C ±3°C, 45 KW heat, 142” L x 42” W x 24” H heating section, 18,000 CFM recirculation fan
Zone 2:

100–150°C ±3°C, 60 KW heat, 237” L x 42” W x 24” H heating section, 23,000 CFM recirculation fan
Effective Work Area:
Effective Work Area - Zone 1:

3’ 6” W x 2’ 0” H x 11’ 10” L
Effective Work Area - Zone 2:

3’ 6” W x 2’ 0” H x 19’ 9” L
External Dimensions:

8’ 9” W x 11’ 0” H x 39’ 2” L
Total Heat Capacity:

105 KW (45 KW Zone 1 / 60 KW Zone 2)
Electrical Requirements:

480V, 3-phase, 60 Hz, 163 amps (recommended 300-amp breaker)

machine equipped with

Fully controlled system via AB PLC w/ HMI Monitoring
including Watlow PM high-limit sensors
Adjustable inlet/outlet crank doors (max 21” open)
Skid frame elevating conveyor to 36” from floor
Conveyor speed: 1.25–3.5” per minute
High-volume recirculation fans with VFD control for precise airflow
1
500 CFM forced exhaust (VFD-controlled)
Vertical down airflow with 12–14” center dead zone between conveyors
Safety features: fused rotary disconnect
E-stops at both ends
right-side access doors doubling as explosion relief

machine description

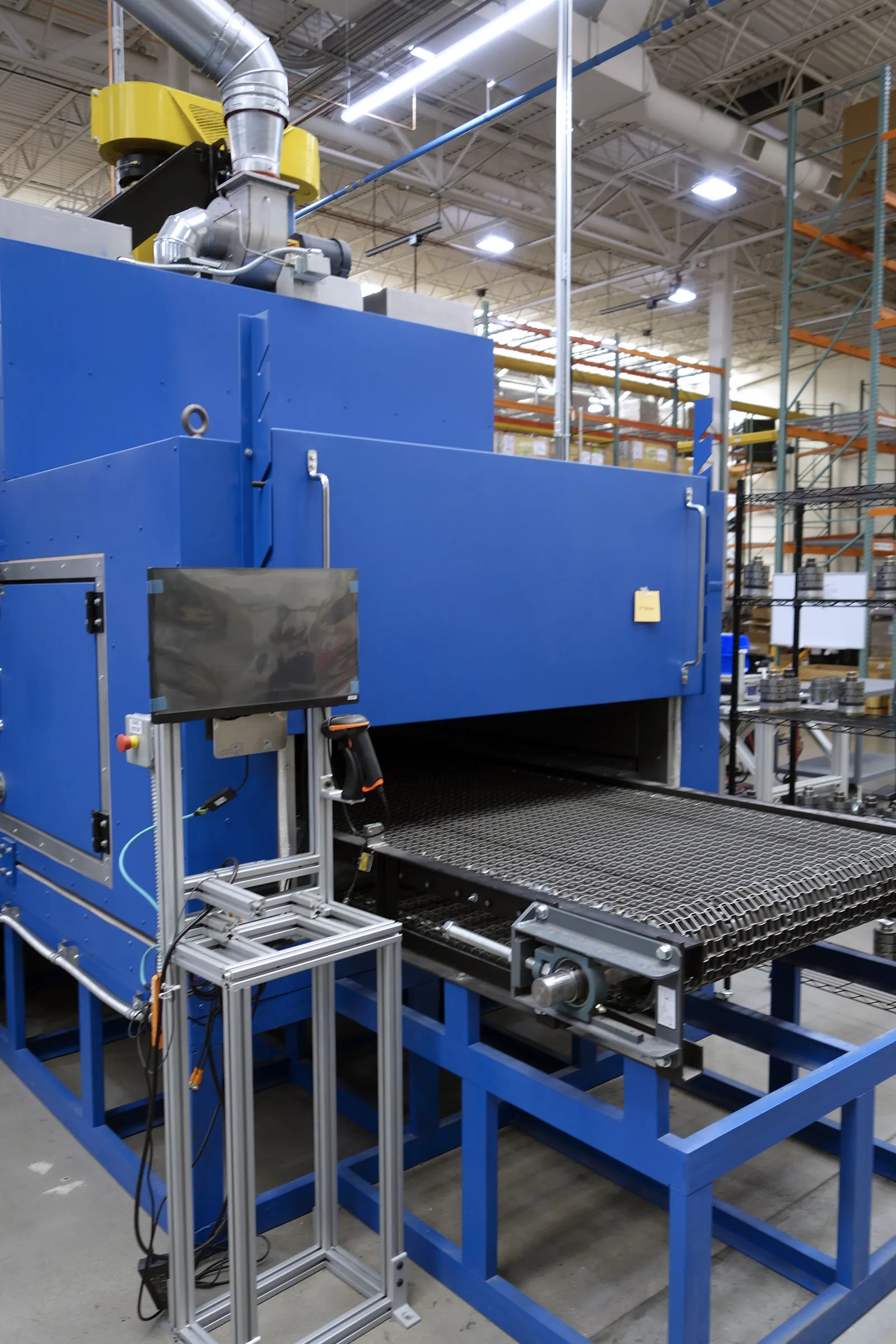

The 2023 JPW Industrial 40' Conveyor Curing Oven is engineered for continuous, high-volume thermal processing with precise temperature control, consistent conveyor speeds, and efficient air recirculation. Ideal for curing paints and powder coatings, bonding adhesives and composites, drying industrial components, heat-forming plastics and rubber, and stress-relieving metal parts for automotive, aerospace, electronics, and heavy manufacturing applications.
