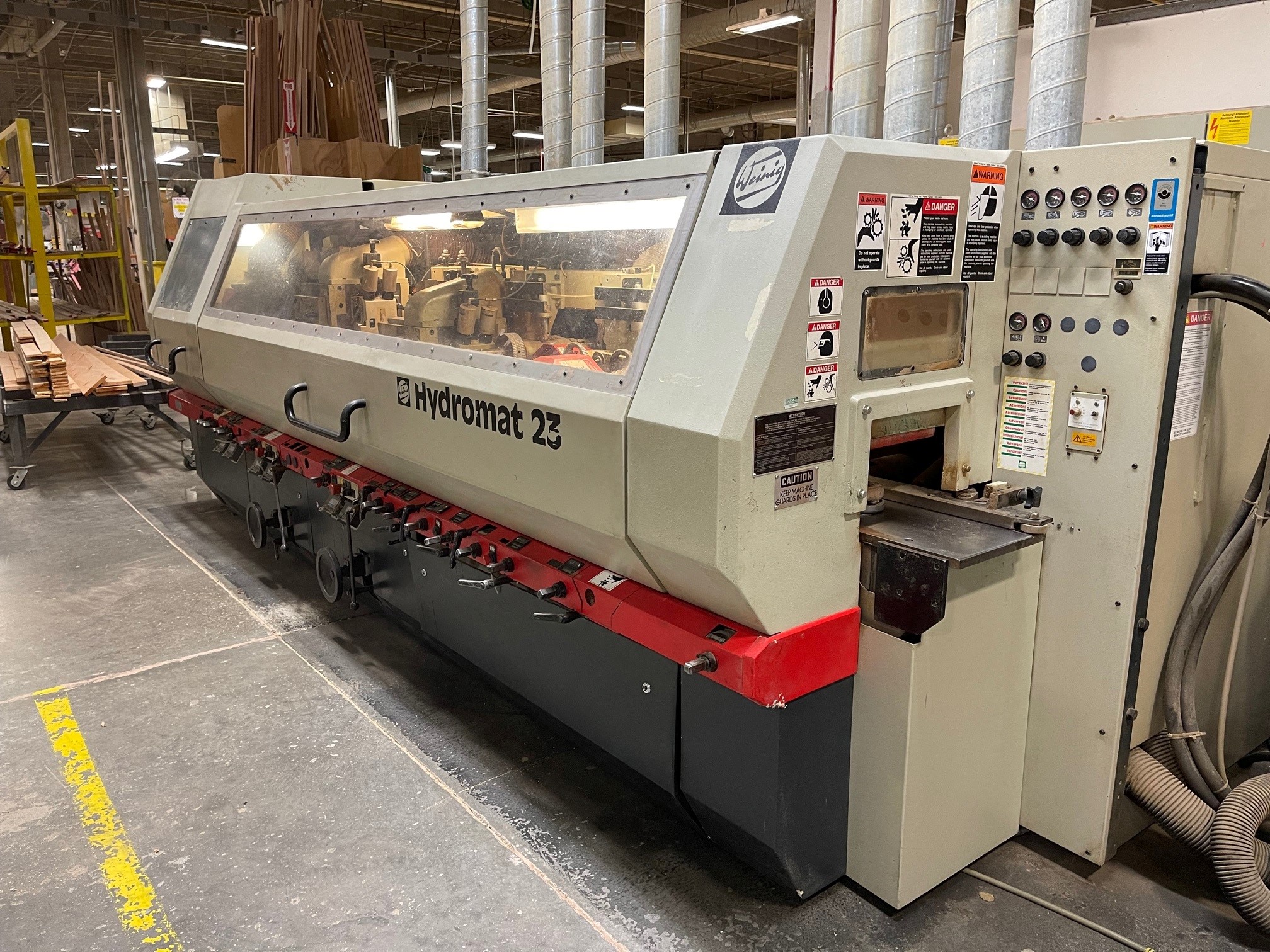

Weinig Hydromat 23C 1998

machine specification

• EXTRACTION CONNECTION DIA., SPLITTING UNIT
• 5.51 in

• CONNECTION DIAMETER, SAW SPINDLE
• 7.87 in

• STRAIGHTENING SPINDLE, BOTTOM SPINDLE
• 9.45 in

• STRAIGHTENING SPINDLE WITH OPTIONAL REBATE CUTTER
• 9.72 in

• EDGE-JOINTING, LEFT-HAND, RIGHT-HAND SPINDLE
• 6.79 in

• TOP SPINDLE, UNIVERSAL SPINDLE
• 9.45 in

• STRAIGHTENING SPINDLE
• 10 - 25.0 HP

• EDGE - JOINTING SPINDLE
• 7.5 - 20 HP

• LEFT-HAND, RIGHT-HAND SPINDLE
• 7.5 - 20 HP

• TOP, BOTTOM SPINDLE
• 10 - 50 HP

• UNIVERSAL SPINDLE
• 10 - 15 HP

• WORKPIECE WIDTH MIN./MAX. FOR TOOL DIAMETER
• .787 / 9.05 in

• WORKPIECE HEIGHT MIN./MAX. FOR TOOL DIAMETER
• .314 / 6.30 in

• SPINDLE DIAMETER, STANDARD
• 2.125 in

• SPINDLE HEIGHT
• 9.125 in

• STRAIGHTENING SPINDLE, MIN./MAX.
• 4.92 / 7.20 in

• REBATE CUTTER (OPTIONAL)
• 6.3

• EDGE-JOINTING AND 2ND RIGHT-HAND SPINDLE, MIN./MAX
• 4.41 / 9.84 in

• MAXIMUM CUTTING CIRCLE BEHIND STOP
• 8 in

• LEFT-HAND SPINDLE, MIN./MAX.
• 4.41 / 9.84 in

• TOP SPINDLE, MIN./MAX.
• 4.41 / 9.84

• BOTTOM SPINDLE, MIN./MAX.
• 4.41 / 9.84 in

• UNIVERSAL SPINDLE, MIN./MAX.
• 3.94 / 7.87 in

• STRAIGHTENING SPINDLE, STANDARD
• 6000 RPM

• EDGE-JOINTING SPINDLE, STANDARD
• 6000 RPM

• UNIVERSAL SPINDLE, STANDARD
• 6000 RPM

• FEED MECHANICAL, STANDARD
• 7.5 - 11 HP

• FEED HYDRAULIC, STANDARD
• 15 - 30 HP

• IDLE/MACHINING
• < 85.0 dB(A)

machine equipped with

• WEINIG GRINDER R 934 - YEAR 1997
• OPTISCOPE
