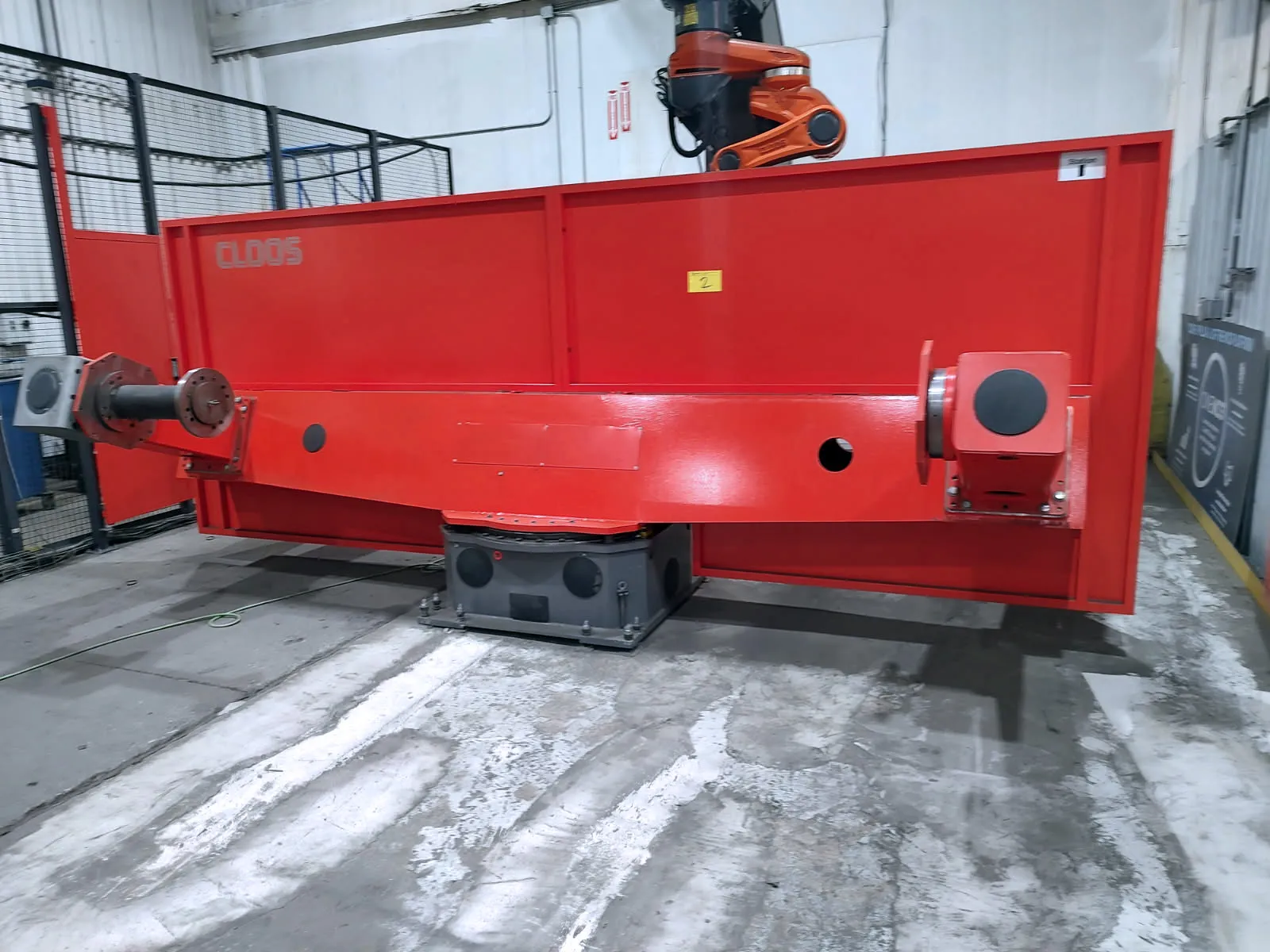

Cloos QIOX QC 2.0 - CS-30 2021

machine specifications

• Working Space:

  177"

• Positioner Max. Load Per Station In N:

  10kN

• Positioner Max. Load Per Station:

  2,248 Lbs.

• Positioner Max. Tilting Moment:

  2450 Nm

• Positioner Mass Moment Of Inertia:

  150 kgm2

• Positioner Max. Turning Speed:

  120°/Sec.

• Positioner Face Plate Diameter:

  15.75" x 15.75"

• Positioner Clamping Length:

  137”

• Positioner Free Turning Radius:

  59”

• Positioner:

  DH-TC-10kN

• Positioner Type:

  2 Station

• Robot Pay Load:

  22 Lbs.

• Robot Swivel Speed - Axis 1:

  184

• Robot Swivel Speed - Axis 2:

  184

• Robot Swivel Speed - Axis 3:

  177

• Robot Swivel Speed - Axis 4:

  497

• Robot Swivel Speed - Axis 5:

  542

• Robot Swivel Speed - Axis 6:

  528

• Robot Swivel Speed - Axis 7:

  90

• Operating Range:

  240”
