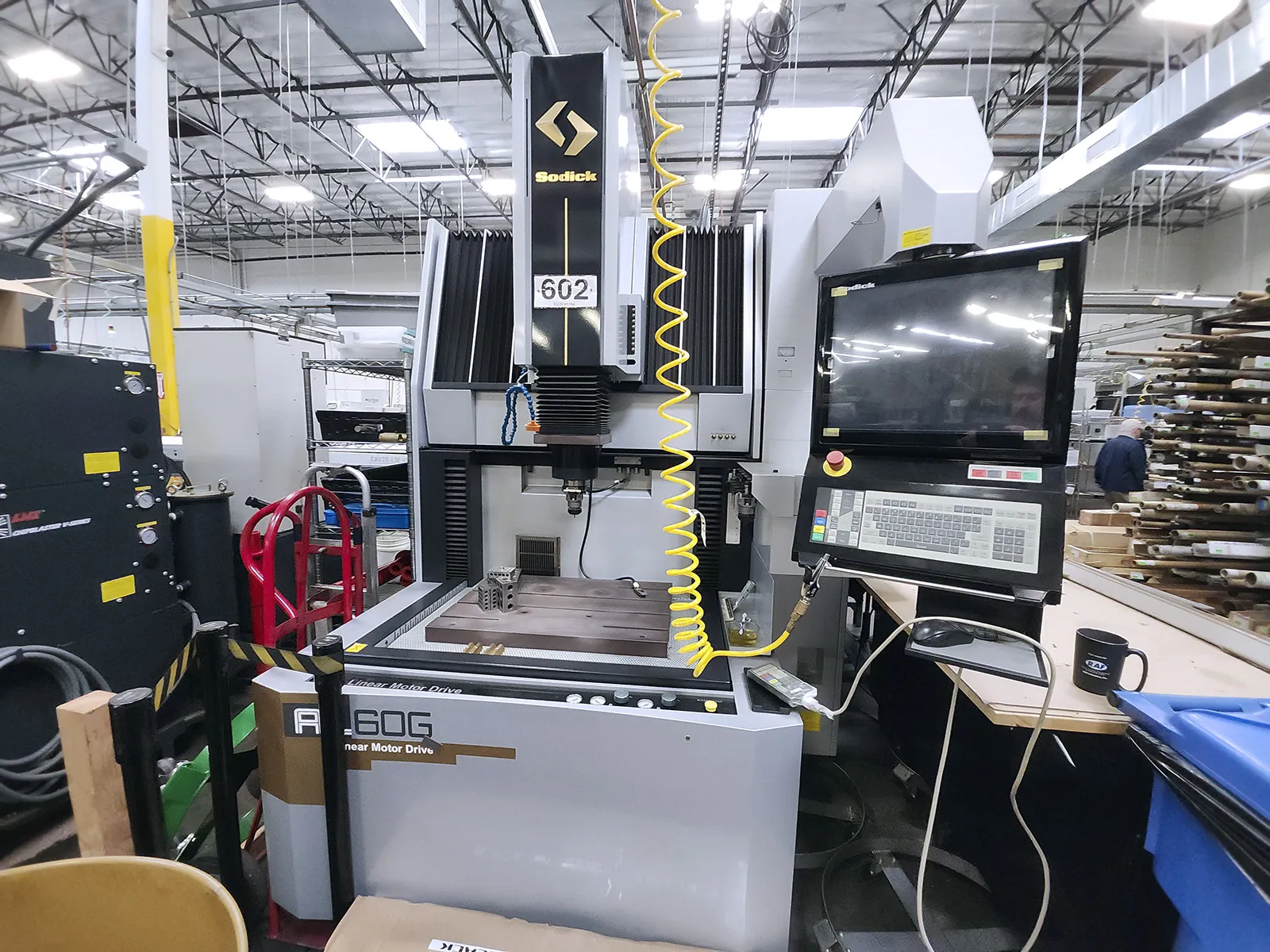

Sodick AL60G 2022

machine specifications

• X-Axis Travel:

  23.62" (600 mm)

• Y Axis Travel:

  16.54" (420 mm)

• Z Axis Travel:

  14.57" (370 mm)

• Table dimensions (W x D):

  29.53" x 21.65" (750 x 550 mm)

• Work tank dimensions (W x D):

  37.40" x 29.13" x 17.72" (950 x 740 x 450 mm)

• Max Workpiece Weight:

  3,307 lb. (1,500 kg.)

• pa_max-weight-of-electrode-kg:

• Machine Dimensions:

  73.82" x 115.35" x 101.18" (1,875 x 2,930 x 2,570 mm)

• Machine Installation:

  102.36" x 151.57" (2,600 x 3,850 mm)

• Machine Weight:

  11,794.73 lb. (5,350 kg.) • 11,795" lb. (5,350 kg.)

• Total power input:

  3-phases, 50/60 Hz, 17 KvA
