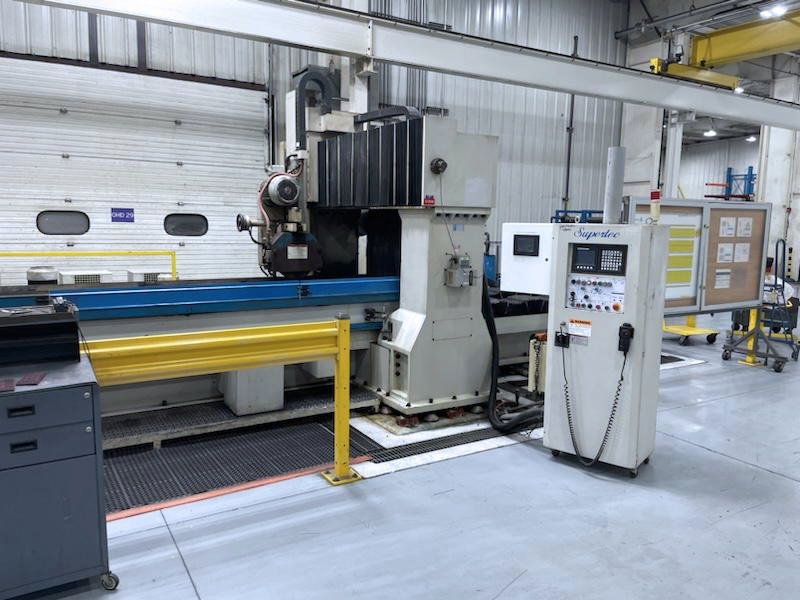

Supertec PSGP-1530AHR 2009

machine specifications

• Travel:

  75" 124" max

• Vertical Heads:

  13.77" x 53.15"

• Wheel bottom to table:

  3.93" - 31.5"

• Spindle Center Height to Table:

  53.15"

• Spindle Speed:

  1150 RPM

• Hydraulic Motor:

  13kW/10HP

• maximum height from table top to bottom of wheel:

  33.50"

• Weight:

  40,000 lbs

• Grinding surface of table:

  60" x 120"

• Machine Dimensions:

  27.50" x 11.50" x 12.50"

• Clearance between columns:

  78.70"

• Electrical:

  230V, 60Hz, 25HP

• Continuous cross feed movement:

  118" per min

• hand feed per revolution:

  .40"

• hand feed per division:

  .002"

• Rapid traverse vertical downfeed:

  8.66" per min

• Grinding Wheel Dimensions:

  20.08" x 3.94" x 8.00"
