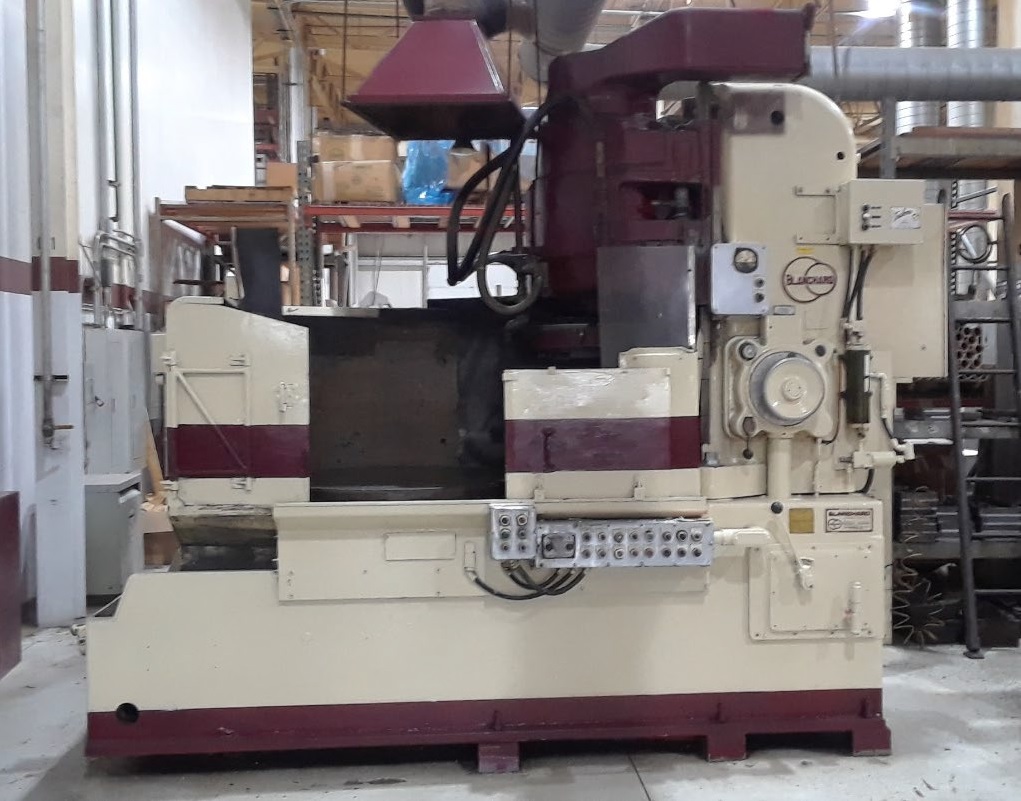

Blanchard 22-CD-42 1973

machine specification

• CHUCK
• 42"

• SWING
• 48"

• EXTENDED VERTICAL RANGE
• 17"

machine equipped with

• HARDENED STEEL BASE WAYS WITH AUTOMATIC LUBRICATION TO BASE WAYS
• "DRY BASE" AUTOMATIC CYCLE CONTROL EQUIPMENT
• EML-15 NEUTROFIER
• MOTORS AND STARTERS FOR 3 PHASE
• 60 HZ
• STANDARD 460 VOTLAGES
• CD-22 SEGMENTED CHUCK
• EXTENDED VERTICAL RANGE TO 17" UNDER NEW SEGMENTS
• 50 HP SPINDLE MOTOR AND CONTROL
• AUTOMATIC LUBRICATION TO SUPPLY GREASE LUBRICATION TO LOWER SPINDLE BEARING
• COLUMN WAYS WHEEL DRESSER AND FEED SCREW ASSEMBLY
• TRABON WSC MONITORING PANEL
• LOW LEVEL AND WARNING LIGHT TO INDICATE SYSTEMS HAS FAILED TO OPERATE POLYCLON WHIRLSTREAM FILTRATION SYSTEM – MODEL W85-300D COMPLETE WITH 300-GALLON COOLANT TANK CAPACITY 85 GPM FLOW RATE 5 HP FILTER PUMP CONVEYOR AND SWARF TROLLEY
