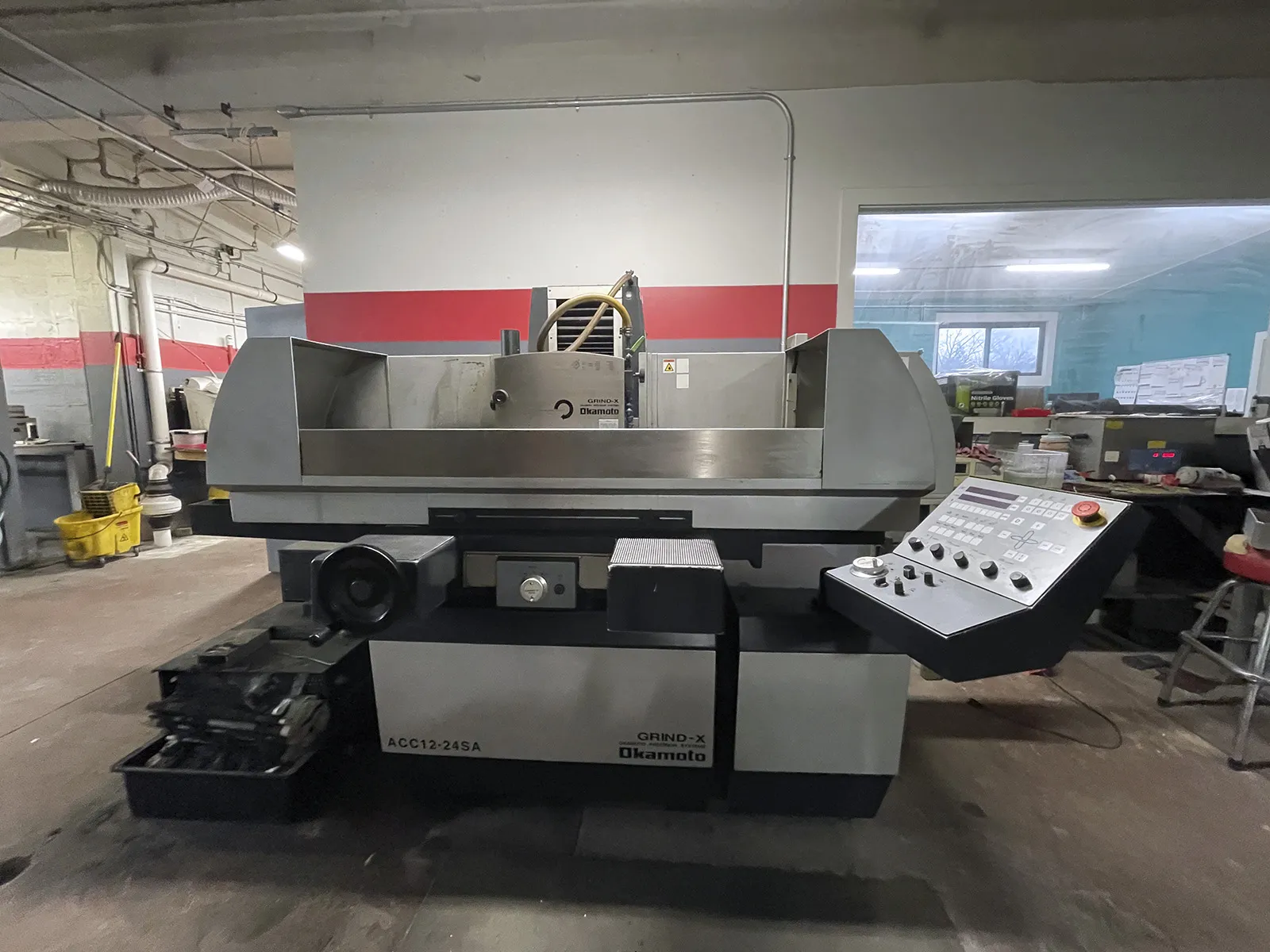

Okamoto ACC-12-24SA 2018

machine specifications

• Max Longitudinal Travel:

  29.5"

• Max Cross Travel:

  16"

• Max Distance Under Wheel to Table Surface:

  13.6"

• Magnetic Chuck Size (WxL):

  12" x 24"

• Table Load Capacity (Includes Chuck Weight):

  925 Lbs

• T-Slots (No. x Width):

  3 x 0.7”

• Hydraulic Feed Rate:

  1.0 - 82 ft/min

• hand feed per revolution:

  1.85"

• Intermittent Crossfeed:

  0.02 - 0.8"

• Continuous Crossfeed:

  4 - 40 ft/min

• Crossfeed per Revolution:

  0.5/0.1/0.01"

• Handfeed Dial Graduation:

  0.005/0.001/0.0001"

• Automatic Vertical Feed per Table Stroke:

  0.00005 - 0.0015" (10 settings)

• Rapid Feed Rate:

  16 IPM

• Manual Pulse Feed:

  (x.1)0.00001", (x1)0.0001", (x10)0.001"

• Size (DxWxB):

  12" x 1.5" x 5" (12 x 1.5 x 3 Avail.)

• Speed:

  1,800 RPM

• Grinding Wheel Spindle:

  5 HP

• Hydraulic Pump:

  2 HP

• Power Supply:

  7.5kVA
