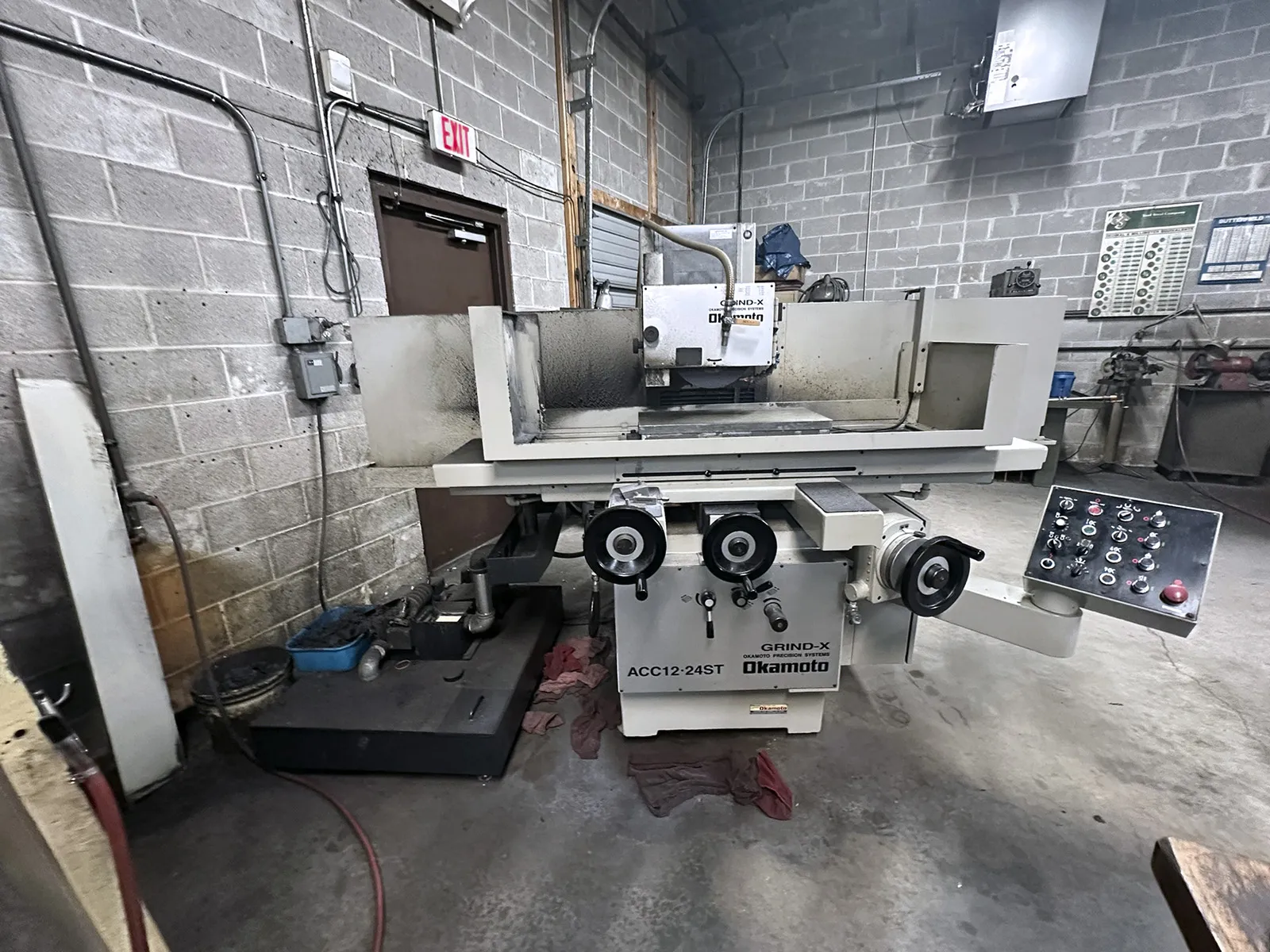

Okamoto ACC12.24ST 2004

machine specifications

• Grinding Capacity:

  24"(L) x 12"(W)

• Distance Under Wheel to Table Surface - Maximum:

  13.7" (12" Wheel).

• Surface Length:

  24"

• Surface Width:

  12"

• Longitudinal Travel - Maximum:

  29.5"

• Cross Travel - Maximum:

  13.6"

• T-Slots (No. x Width):

  1 x 0.7"

• Hydraulic Feed:

  1 ~ 82 ft/min

• Hand Feed (Per Revolution):

  1.85"

• Hydraulic Intermittent Feed:

  0.02" - 0.8"

• Hydraulic Continuous Feed:

  4 ~ 40 in/min

• hand feed per revolution:

  0.250"

• Handwheel Graduation:

  0.001"

• Automatic Feed Per Table Stroke:

  0.0001" - 0.0015"

• Automatic Feed Per Saddle Reversal:

  0.0001" - 0.0015"

• Hand Feed:

  (Per Revolution): 0.025"

• Manual Micro Feed (Push Button):

  0.0001" - 0.0015"

• Handwheel Graduation::

  .0.0001"

• Rapid Feed:

  (60 Hz): 16 in/min

• Spindle Speed:

  (60 HZ):1,800 RPM

• Hydraulic Pump:

  2 HP

• Vertical Rapid Feed & Downfeed:

  0.5 HP
