This Machine has been sold and is No longer Available... Find similar machines below

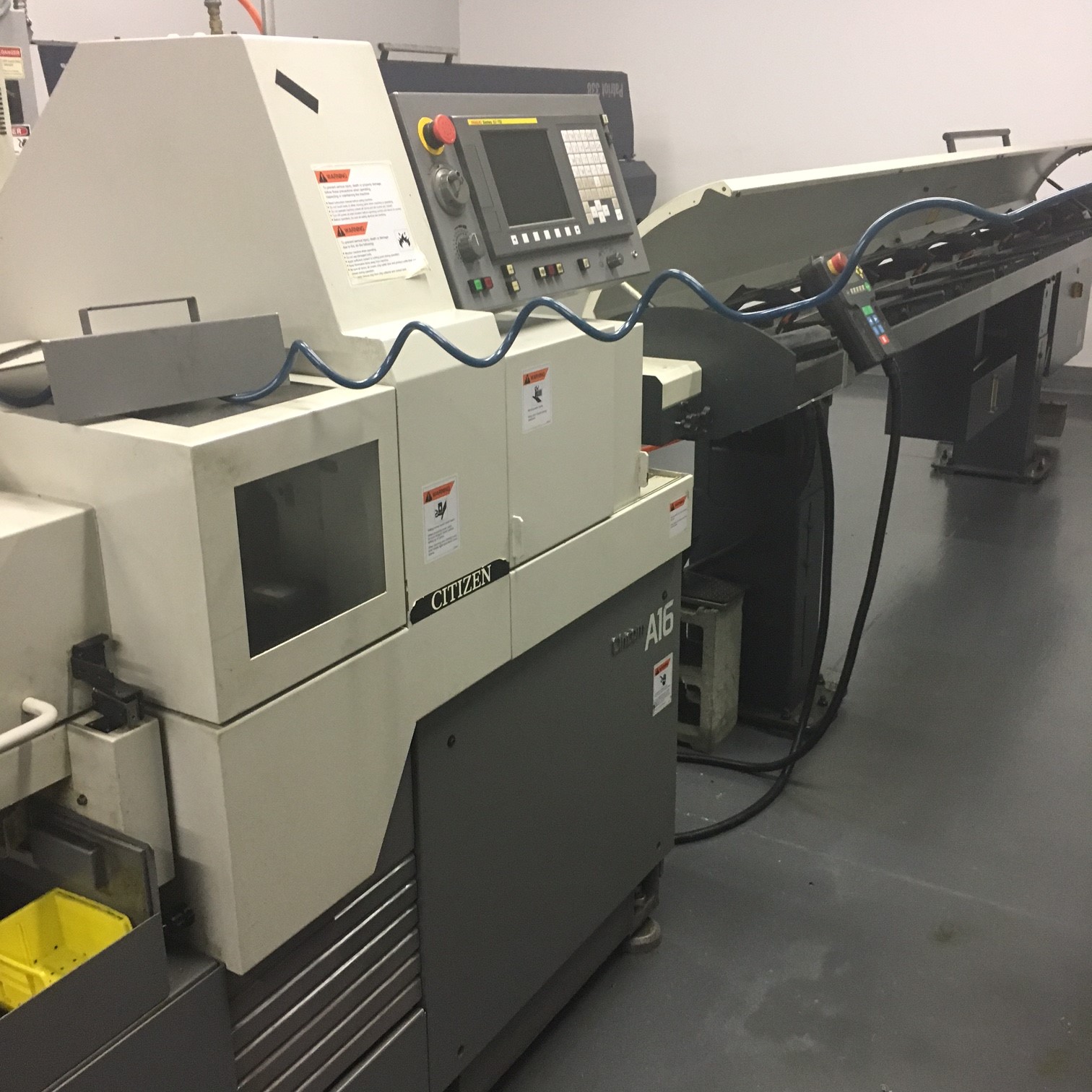

Citizen A16 2011

MAKE: Citizen
YEAR: 2011
TYPE: Swiss Lathe

MODEL: A16
CONTROL: Accupress
REF #:

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Wire Traveling Speed:

22
Chuck Size (Inches):

8"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Spindle Taper (CAT/BT):

HSK-463
Spindle Speed:

12,000 RPM
Max Swing (inches):

17.32"
Bar Stock Capacity:

2.0"
Pallet Size (inches):

25"
Table Size - W:

30"
Throat Depth:

9.45"
Tool Changer Type:

60 ATC
Turret Capacity:

8 Positions
V-Axis Travel:

5555
Vertical Travel of Ram:

4444
Wire Diameter (inches):

3333
Resonator ( Type ):

55
Table Size - L:

61"
Main Spindle Speed:

100 - 10,000 RPM (4-digit Stepless Command)
Back Spindle Speed:

100 - 6,000 rpm (S4-digits Direct Command)
3 Live Tool Spindle Unit:

100 - 4,500 RPM
Manual Feed by Handle:

X, Y, Z, A2
Minimum Increment:

0.001mm
Number of Tool Offset:

64 pairs
Part Program Storage Area:

640M tape length
Main Spindle Index:

1 degree
Spindle Speed Fluctuation Detection:

Main G25, 26
5 Turning Holder for T11 to T15:

.39” shank 1pc.
3/4" Diameter 4-Sleeve Holder:

1 pc.
3/4" diameter Double End Sleeve:

2.56” length - uses ER11 - 2 pcs.
3/4" diameter Tap & Die Sleeve:

uses ER11 - 1 pc.
Read more

machine equipped with

All Available Manuals
Live Tooling - 3 live tools cross slide spindles
LNS Bar Loader
Simultaneous 4 Axes control
AC Servo Axes Control
Back Spindle Unit
Work-piece Chute
Expanded Cutting Oil Tank with Oil Level Detector (34 Gal Oil Capacity)
Air Sealed Synchronous Type Rotary Guide Bushing Unit (uses S&M 0201)
Main Spindle Collet Chuck Unit (uses S&M TF20)
Back Spindle Collet Chuck Unit (uses S&M TF20)
Door Switch and Interlock
Centralized Lubrication System (1 Qt Oil Capacity)
Leveling Bolts & Pads
Hand Tools (spanners wrenches etc.)
One Complete Set of Manuals for A16
One Complete Set of Manuals for FANUC 0i-TD
Test Chart
Dedicated Cover
Parameter List
Bar Feed Interface
Display Language English
8.4” Color LCD/MDI
Absolute/Incremental Command
Automatic Power Off Function
Background Editing
Canned Cycle for Threading Main (G92)
Constant Surface Speed Control Main (G96/97)
Cycle Time Check Function
Decimal Point Input
Feed Command by mm/rev or mm/min (switchable by G code)
Canned Cycle for Drilling
Radius Designation on Arc
Reference Point Return (Absolute Position Detector)
Standard Specifications of CNC System
Self-Diagnosis Function
Z-A2 Axis Synchronization Function
Rigid Tapping Function for Main and Live Tool Spindle
Main and Back Simultaneous Machining
Read more
