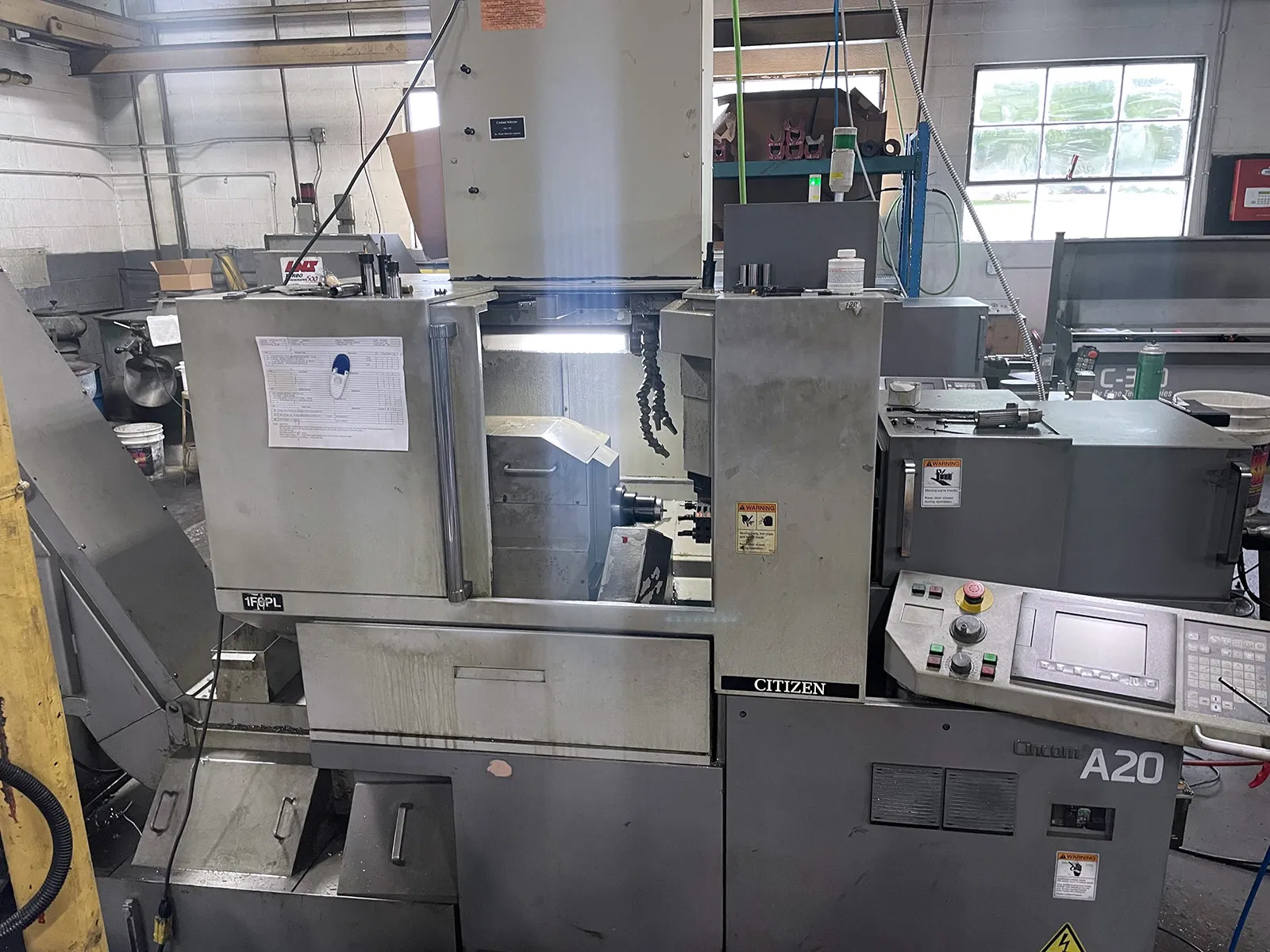

Citizen A20 VI PL 2007

machine specifications

• Main Spindle:

  Bar stock max. 0.812” (Spindle Sleeve ID is 0.840”)

• Sub Spindle:

  Max. 0.790” (Spindle Sleeve ID is 0.800”)

• Rotary:

  Max. 1.25”

• Maximum Turning Diameter:

  20 mm (.787”)

• Maximum Turning Length:

  165 mm (6.49”)

• Maximum Capture Length:

  80 mm (3.14”)

• Bar Diameter Range:

  2-20 mm (.078 - .787”)

• Rapid Traverse:

  708 IPM in X1 axis; 1259 IPM in Y1, Z1, X2, Z2 axes

• C-Axis Indexing:

  Every 0.001°

• Maximum Rotational Speed:

  8000 rpm in both main and sub-spindle

• Maximum Drive Power:

  3.7 HP in main spindle; 1.5 HP in sub-spindle

• Number of Tools:

  18

• Turing:

  7 (Tool #4 is 5/8”)

• Cross Drilling/Milling:

  3

• Front Work:

  4

• Driven Tools Drive Power::

  0.75 HP

• Maximum Rotational Speed of Driven Tools:

  6000 rpm

• Dimensions:

  42” x 83” x 69”

• Weight:

  5070 lbs
