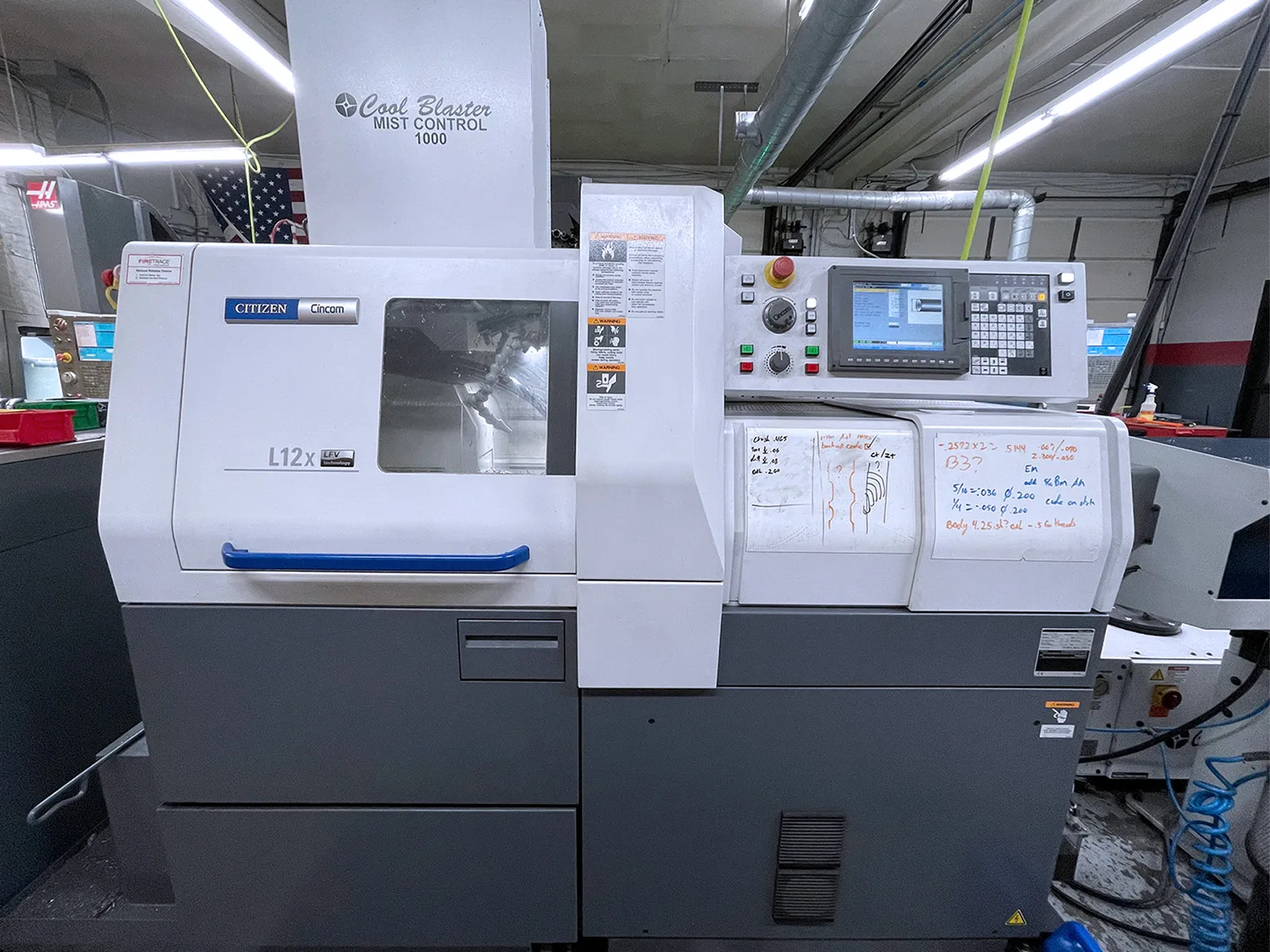

Citizen L12-2M10 2021

machine specifications

• Simultaneous Axes control:

• Control:

  AC Servo Axes Control

• Main Spindle Speed:

  200 ~ 15,000 rpm (GB Mode) / 12,000 rpm (GBL Mode)

• Back Spindle Speed:

  200 ~ 12,000 rpm 5-digit stepless command

• Live Tool Spindle Speed:

• Gang Tool Post:

  200 ~ 10,000 rpm 5-digit stepless command

• Back Tool Post:

  200 ~ 9,000 rpm 4-digit stepless command

• Rotary Tools Drive System:

• 6-Stations on Gang Tool Post:

  (L212U30B + GSE4107)

• 4-Stations on Back Tool Post:

  (+ 4-stationary) (L212U152B)

• Main Spindle Collet Chuck Unit:

  (S&M TF16)

• Back Spindle Collet Chuck Unit:

  (S&M TF16)

• Work-Piece Separator:

  (Max part length = 80mm)

• Cutting Oil Tank with Oil Level Detector:

  (42 Gal Oil capacity)

• Back Spindle Air Blow Unit:

• Rotary Guide Bushing:

  Synchronous Type Rotary Guide Bushing Unit for (uses S&M SD125R)
