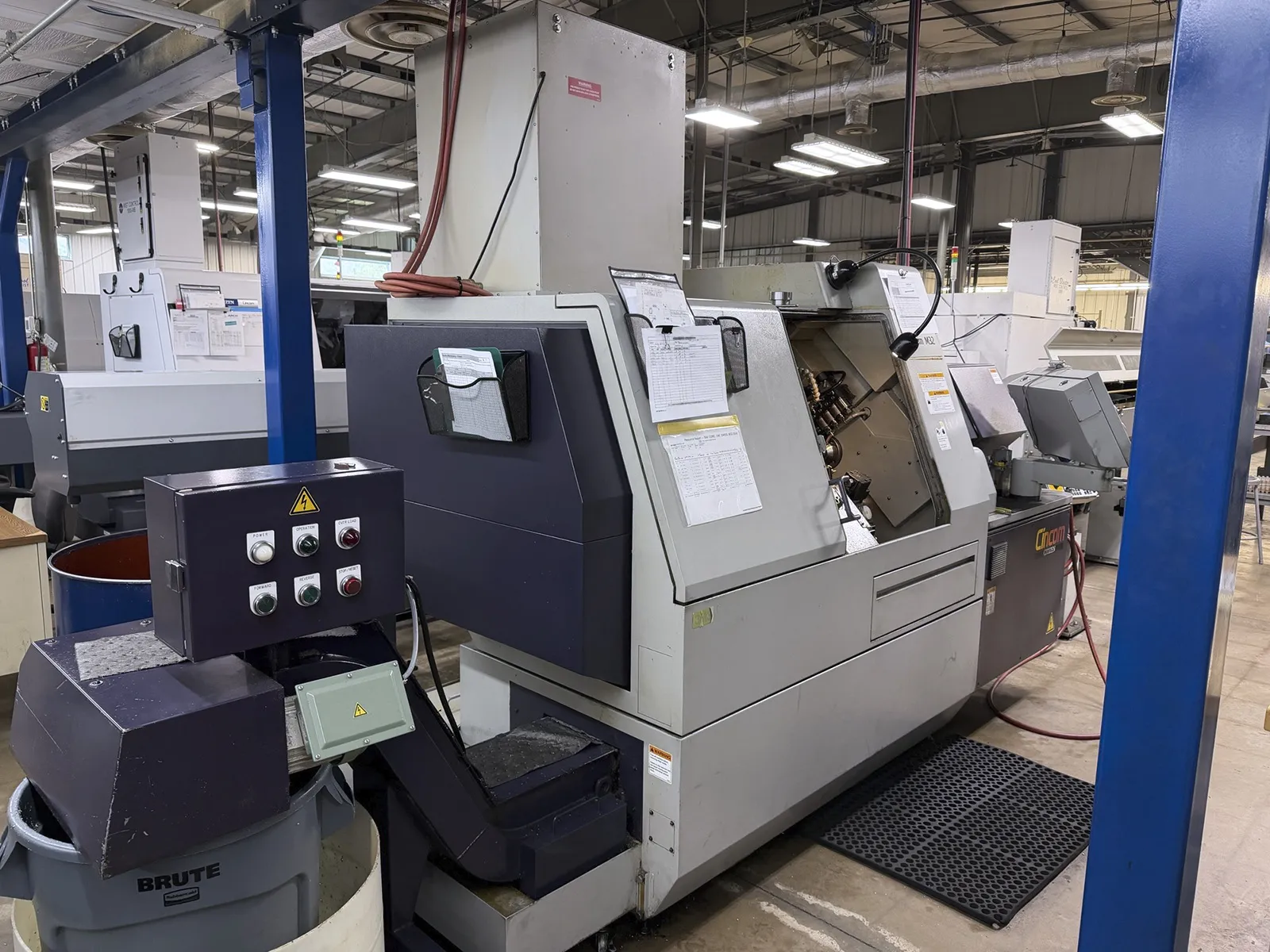

Citizen M32 III 2004

machine specifications

• ar size diameter:

  32mm

• Max. Turning Length:

  320mm

• Max. diam. Front drilling:

  12mm

• Max. diam. Front tapping:

  M10-M8

• Max. diam. posterior drilling:

  10mm

• Max. diam. Posterior tapping:

  M8

• Max. Main Spindle Speed::

  200-8000 rpm

• Max. Sub Spindle Speed::

  200-7000 rpm

• Position Axis C main spindle:

  Cs 1°/1000°

• Position Axis C sub spindle:

  Cs 1°/1000°

• Number of Turret Positions:

  10

• # of Tools:

  22+α

• No. Facing tools:

  5

• No. Live tools:

  4

• No. Fix tools:

  10+α

• No. Tools of sub spindle:

  3

• Dimension tools pos 1:

  16x16x130mm

• Dimension tools pos 2:

  16x16x90mm

• Fix tool holder:

  Diam. 25.4mm

• Main Spindle Motor:

  3.7/5.5 KW

• Sub Spindle Motor:

  1.5/2.2 KW

• X1 axis feed motor:

  0.4 KW

• Turret Motor:

  1.0 KW

• # of Axes::

  11 Axes: X1,Y1,Z1,X2,Y2,Z 2,X3,Z3,T1,C1,C2
