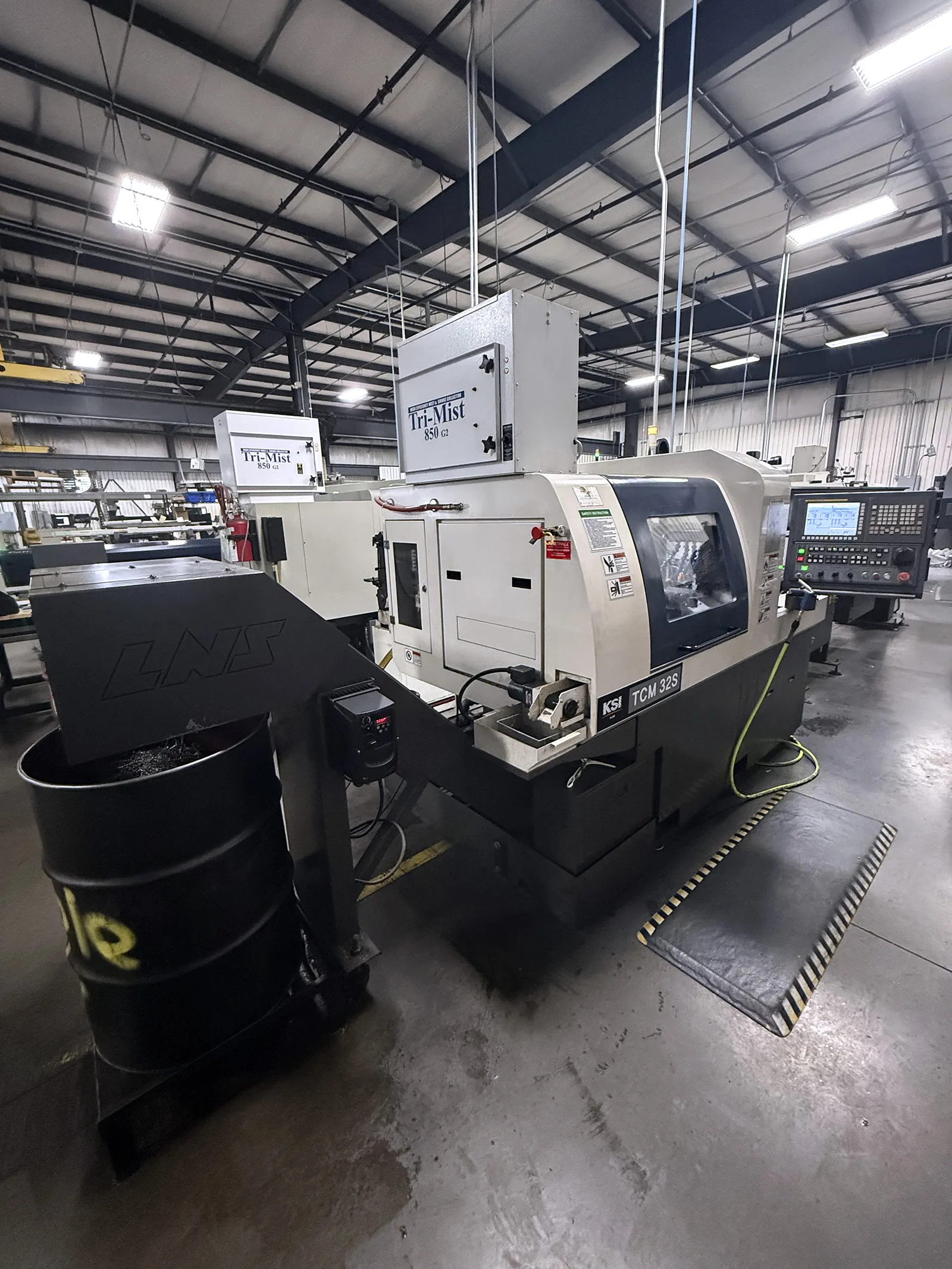

KSI TCM32 2019

machine specifications

• CNC Control:

  Fanuc Oi-TF

• Axes:

  7-axis (X, Y, Z, C, and 2 rotary tool axes)

• Turning Diameter:

  Max 1.25" (32 mm)

• Turning Length:

  Max 12.00" (305 mm)

• Main Spindle:

  10,000 RPM, 10 HP (7.5 kW)

• Sub Spindle:

  8,000 RPM, 3 HP (2.2 kW)

• Cross Spindle:

  8,000 RPM, 1.34 HP (1.1 kW)

• Back End Spindle:

  5,000 RPM, 1.34 HP (1.1 kW)

• Weight:

  7,716 lbs (3,500 kg)

• Dimensions:

  118" x 57" x 70" (300 x 145 x 178 mm)

• Cooling:

  200 L tank, main/sub coolant pumps, chip conveyor, tri-mist cooling system

• Tooling Capacity:

  Techspex+1

• Main Spindle Block:

  6 turning tools (ER16)

• Y-Axis Block:

  5 turning tools (ER16)

• Cross Drilling:

  8 mm (M6, ER16)

• Cross Tapping:

  M6 (ER16)

• Slotting:

  Width 1.5 mm x Depth 4 mm

• Back End Drilling:

  10 mm (M8, ER16)

• Back End Tapping:

  M8 (ER16)

• Total Tools:

  26 (13 fixed, 9 live)
