Name: Star SB-20R 2021
Brand: Star
Availability: InStock

Star SB-20R 2021

2021, Low Hours| Bar Feed

request quote

Open price not currently available. Please Contact Us

MAKE: Star
YEAR: 2021
TYPE: Swiss Lathe

MODEL: SB-20R
CONTROL: Fanuc
REF #: 3765900

machine specifications

Manufacturer:

Star Micronics
Machine Type::

Swiss-Type Sliding Headstock CNC Lathe
Maximum Bar Capacity:

0.787" (20 mm)
Maximum Machining Length:

Approximately 8" (205 mm) with guide bushing
Maximum Turning Diameter:

20 mm (0.787")
Main Spindle Speed:

Up to 10,000 RPM
Sub Spindle Speed:

Up to 10,000 RPM
Main Spindle Motor:

Approximately 5 HP (3.7 kW)
Sub Spindle Motor:

Approximately 2.7 HP (2.0 kW)
Rapid Traverse:

Up to 35 m/min (1,378 IPM)
Number of Axes:

7 Controlled Axes
Positioning Accuracy:

±0.00008" (±0.002 mm)
Repeatability:

±0.00004" (±0.001 mm)
Coolant System:

Flood coolant with high-pressure capable plumbing
Electrical:

208-230V / 3 Phase / 60 Hz
Tool Capacities:
Turning Tools:
Up to 21 turning tools:
Multiple OD turning stations:
Multiple ID live stations:
Gang tooling platform:
Live Tooling:
Up to 8 live tools:
Rigid Tapping:
C-axis interpolation:
Approximate Weight:

8000 lbs
Dims:

125" x 60" x 76"
Read more

machine equipped with

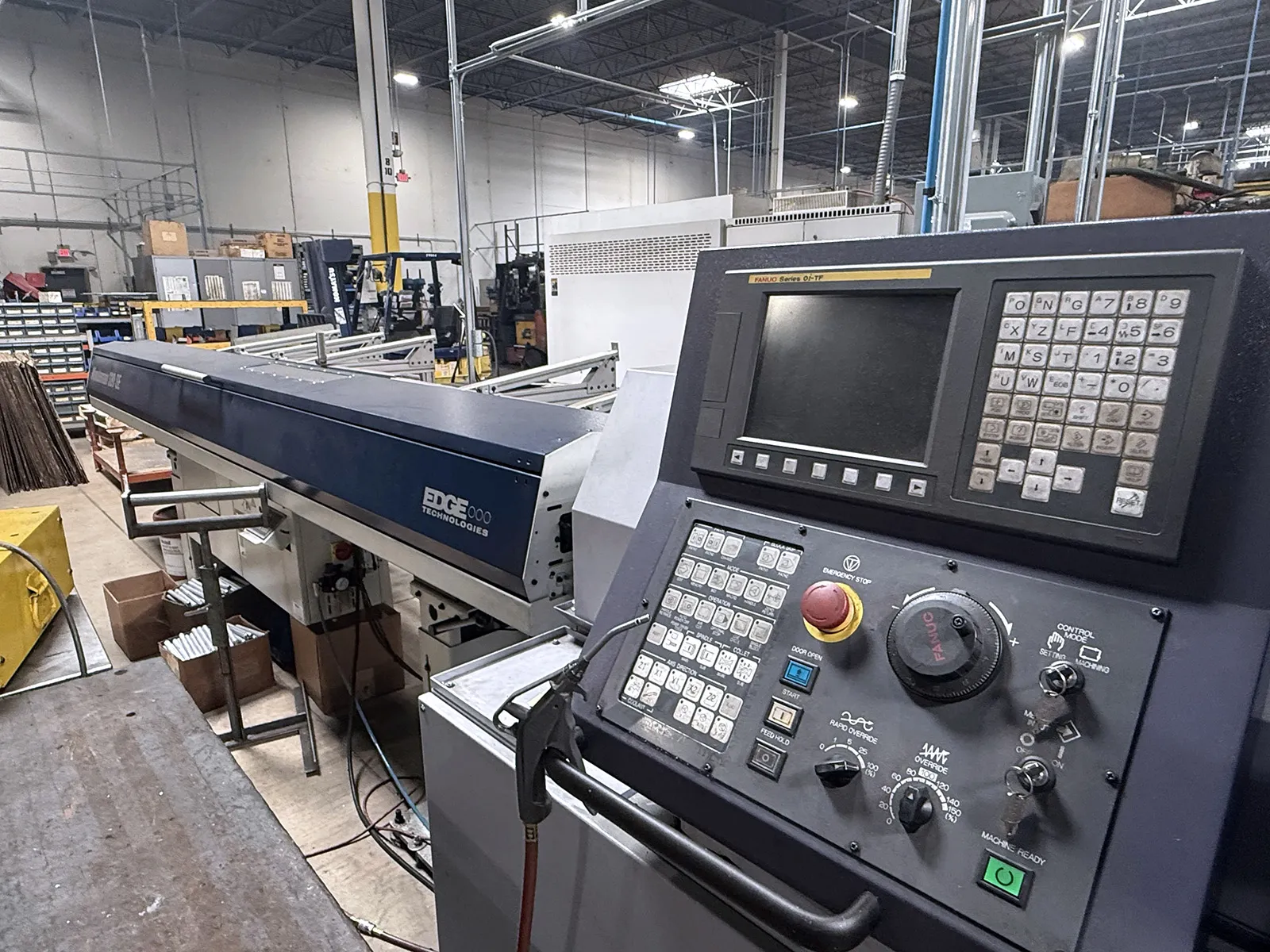

FANUC Series 0i-TF CNC Control

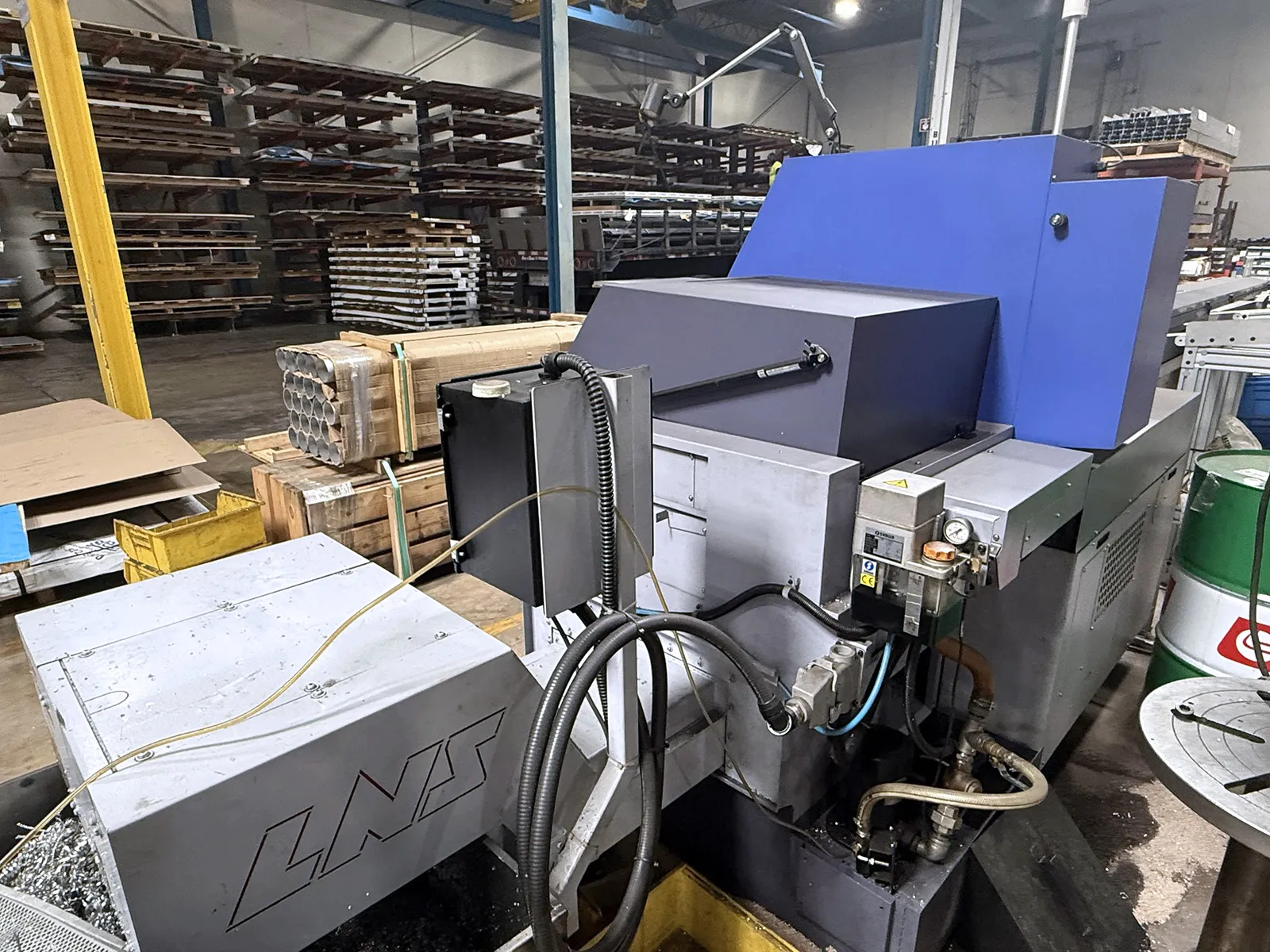

LNS Turbo MH250 Automatic Bar Feeder
Edge Technologies Bar Loading Magazine
LOW HOURS on spindle
Guide Bushing
Sub Spindle
C-Axis Main Spindle
C-Axis Sub Spindle
Live Tooling Capability
Cross Milling
Cross Drilling
End Milling
End Drilling
Gang Tool Slide
Automatic Parts Catcher
Automatic Parts Conveyor
High-Pressure Coolant Plumbing
Fully Enclosed Splash Guard
Work Light
Coolant System

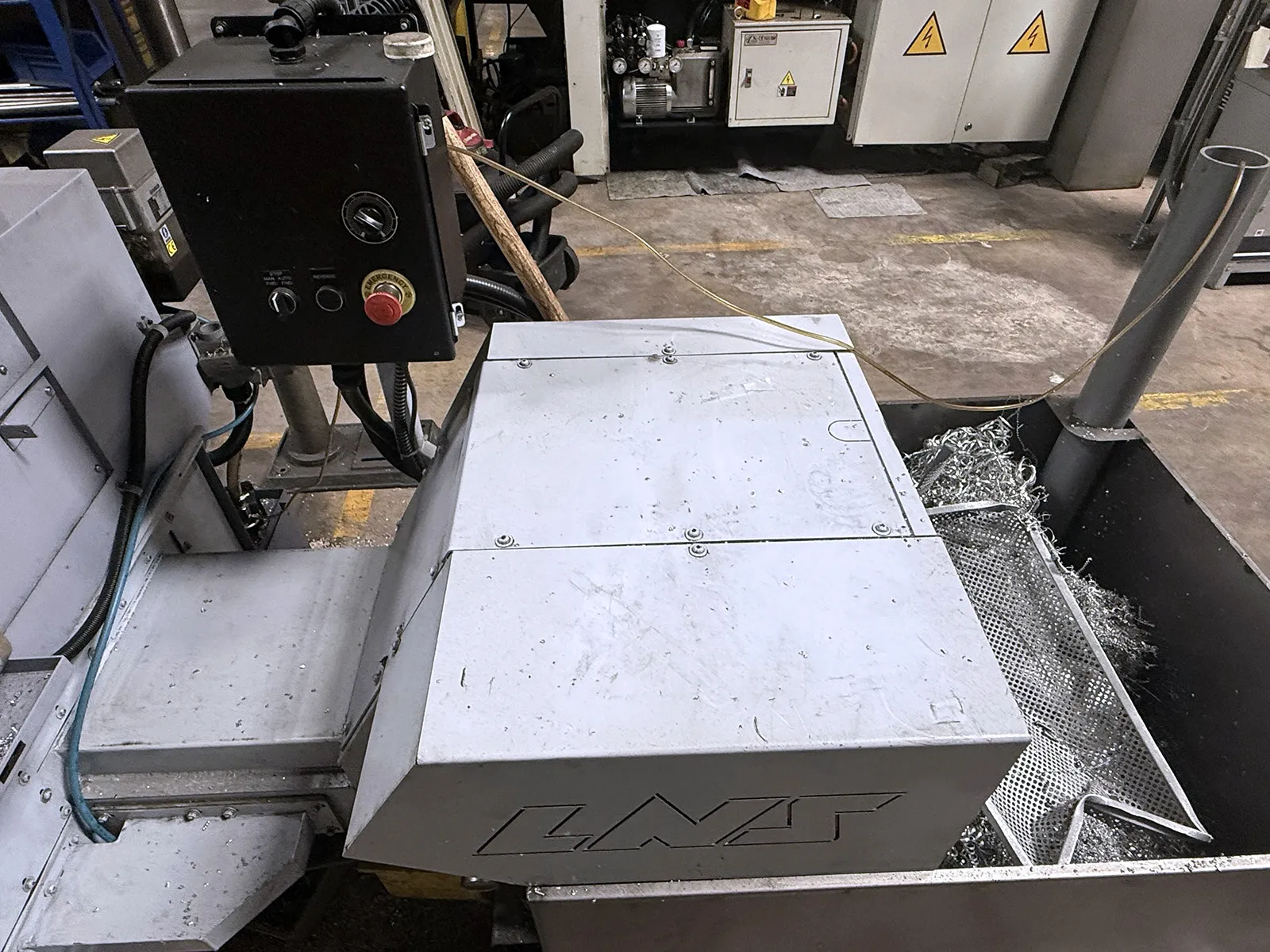

Chip Conveyor / Chip Collection System
Servo Bar Feed Interface
Hydraulic System
Automatic Lubrication System
Foot Switch
Factory Safety Enclosure
Read more

machine description

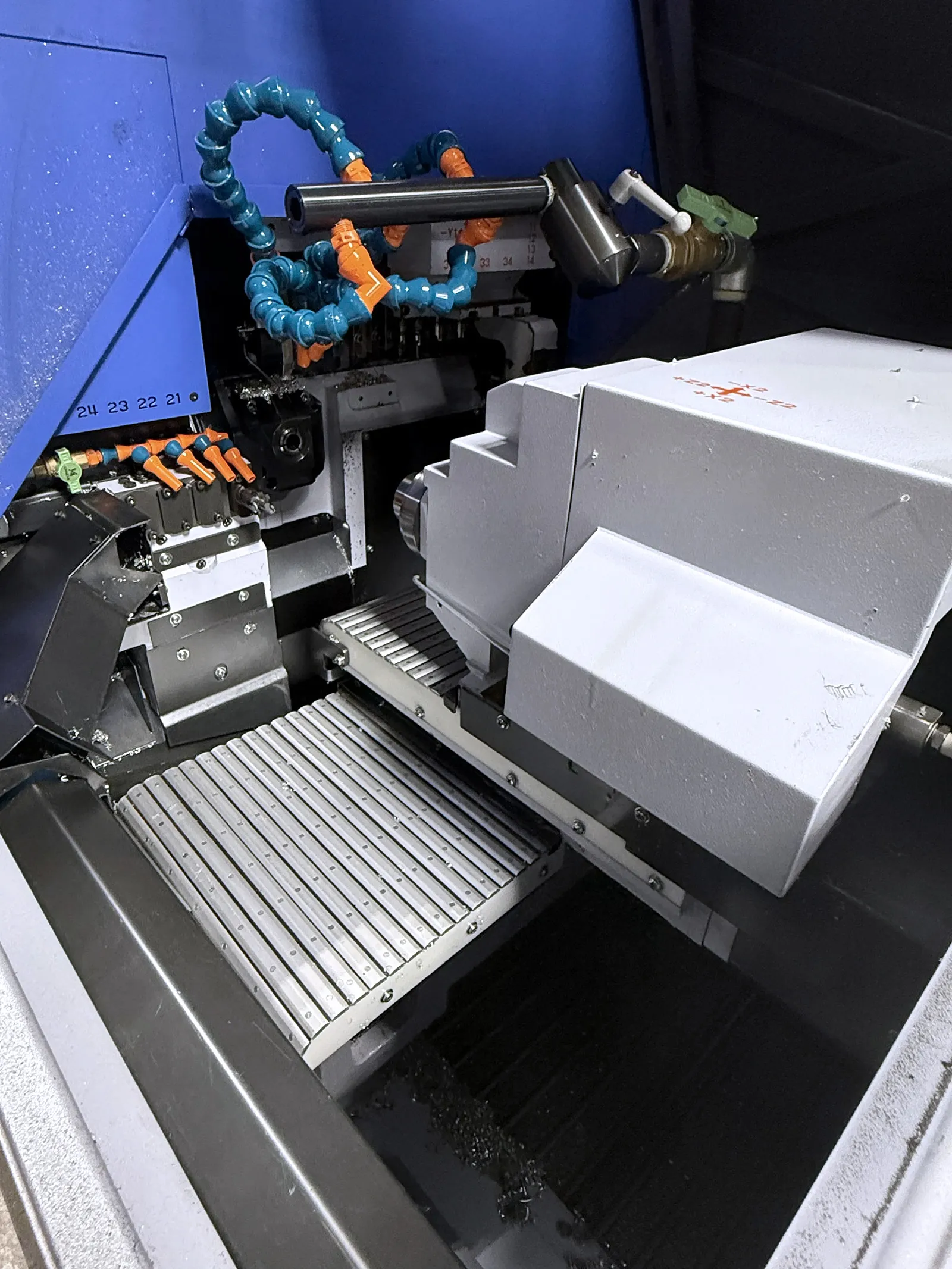

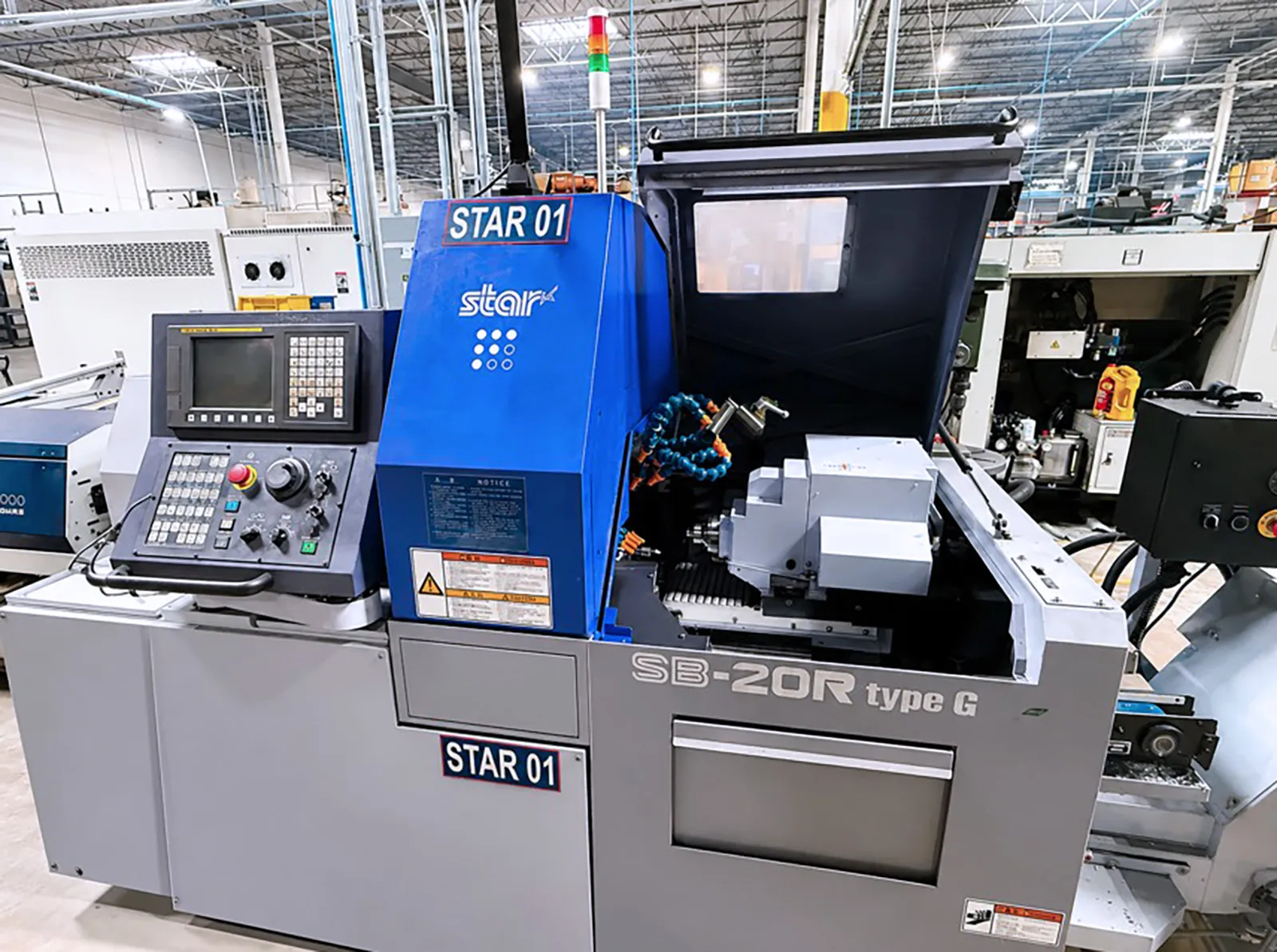

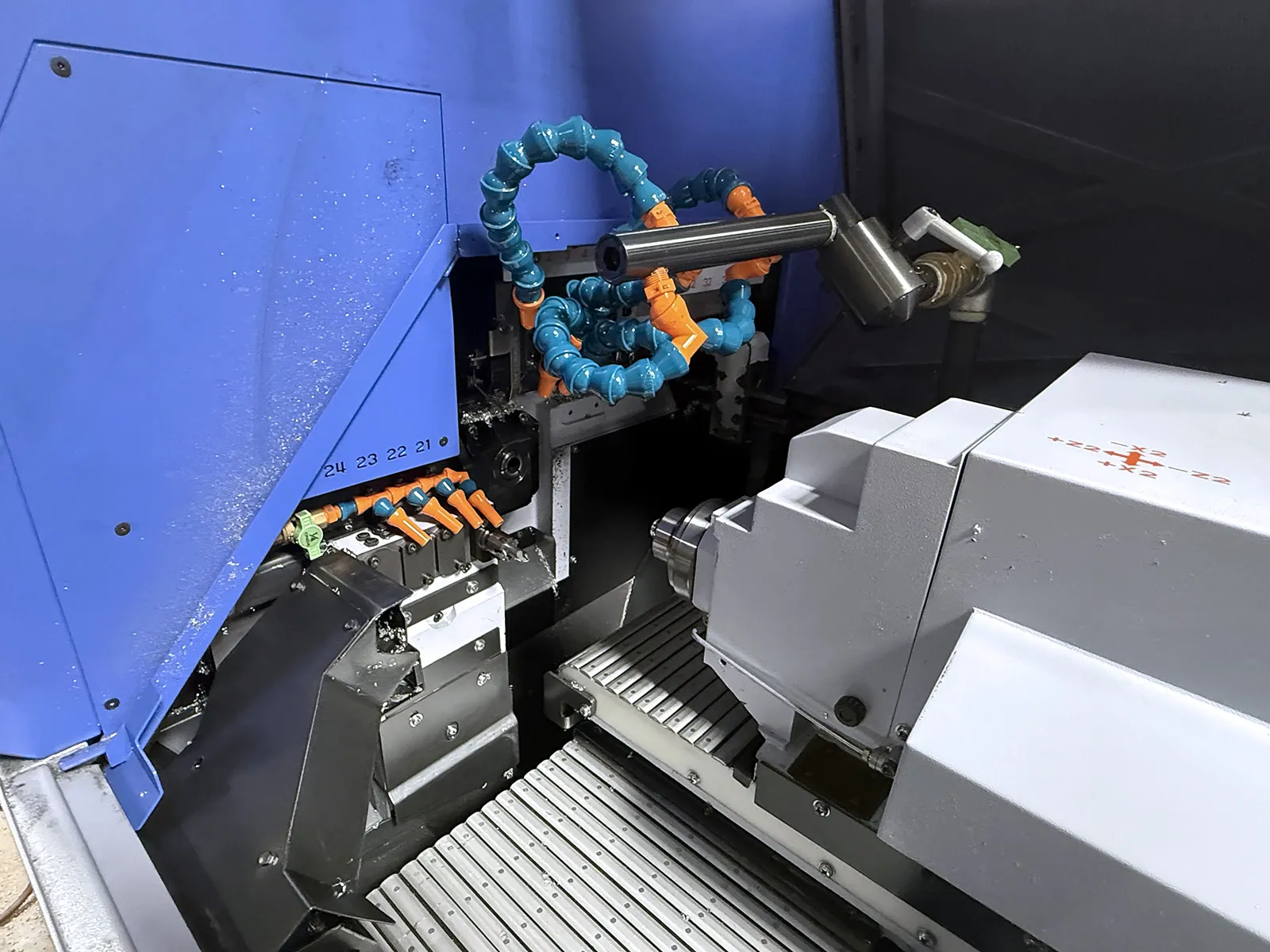

Star SB-20R Type G Swiss Lathe (2021) is a high-precision sliding headstock CNC for high-volume production of complex miniature parts. Flexible tooling and independent backworking ensure accuracy and efficiency. Ideal for medical, aerospace, automotive, electronics, and watchmaking parts requiring tight tolerances and multi-axis machining.
