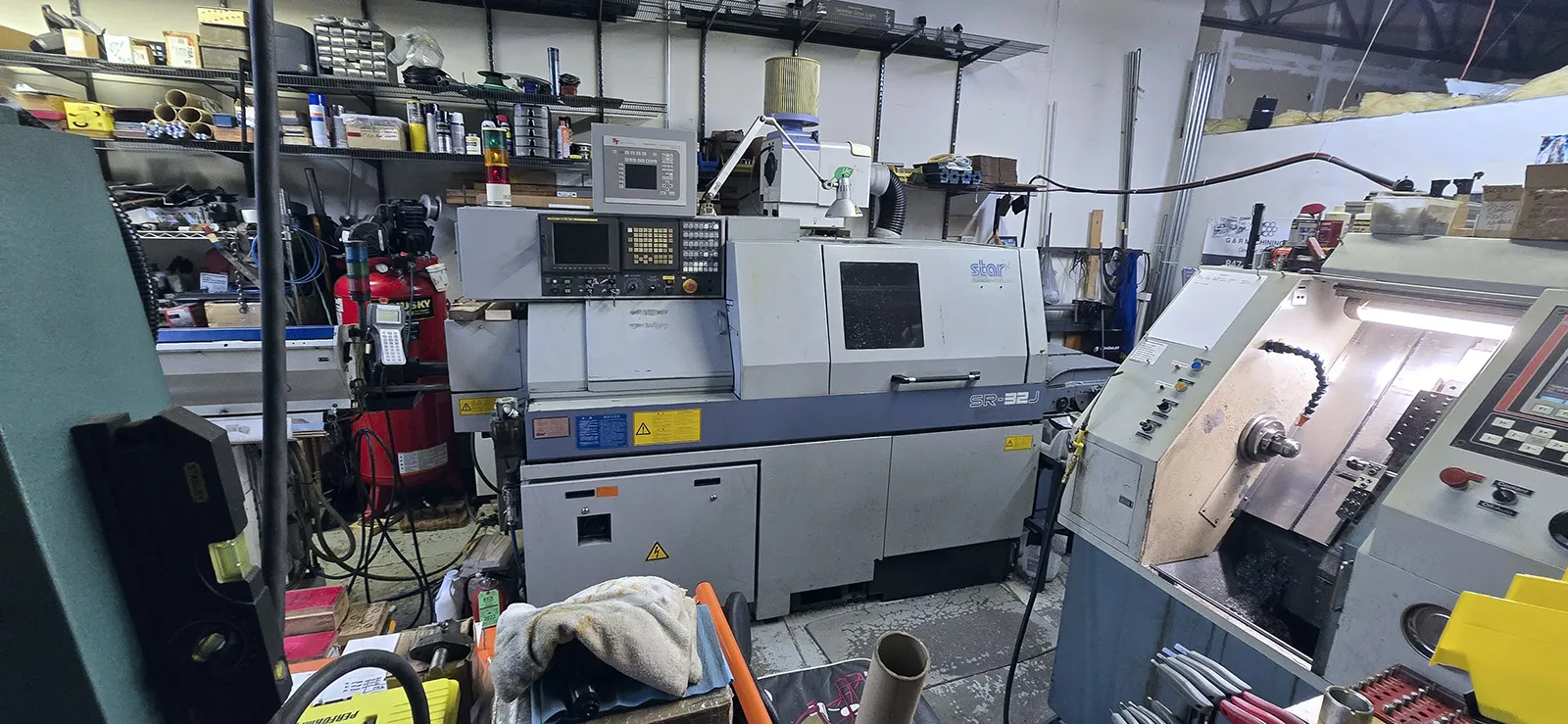

Star SR-32J 2005

machine specifications

• Max. Machining Diameter:

  32mm (1-1/4in)

• Max. headstock stroke:

• Standard:

  310mm(12-13/64in)

• with RMGB unit:

  280mm(11-1/32in)

• Tool Shank:

  16mm x 95-155mm

• 4-spindle sleeve holder:

• Sleeve Holder Max. Drilling Capability:

  13mm(1/2in)

• Sleeve holder Max. tapping capability:

  M12xP1.75

• Sleeve holder Max. die cutting capability:

  M10xP1.5

• Power Driven Attachment:

• Power Driven attachment - Max. drilling capability:

  8mm(5/16in)

• Power Driven attachment - Max. tapping capability:

  M6xP1.0

• Power Driven attachment - Max. milling capability:

  10mm(25/64in)

• Main Spindle Speed:

  Max.7,000min-1

• Main spindle motor(continuous/30min):

  .. 5.5kw/7.5kw

• Power-driven att. spindle speed:

  Max.5,000min-1

• Power-driven att. drive motor:

  1.0kw

• Backworking Attachment:

• Max. Chucking Diameter:

  32mm (1-1/4in)

• Max. lenght for front ejection:

  125mm(4-59/64in)

• Max. parts prcjection length:

  45mm(1-49/64in)

• 4-spindle backworking unit:

• Max. drilling capability:

• Max. drilling capability - Stationary tool:

  13mm(1/2in)

• Max. tapping capability:

• Max. tapping capability - Stationary tool:

  M10xP1.5

• Sub Spindle Speed:

  Max.7,000min-1

• Sub spindle motor(continuous/15min):

  ... 2.2kw/3.7kw

• Dimension (L x W x H, Approx):

  9' x 4' x 5'6"

• Weight (approx)::

  8300 lbs

• Machine:

  106" x 51" x 69" 8,300 lbs

• Coolant Pan:

  51" x 32" x 21" 155 lbs
