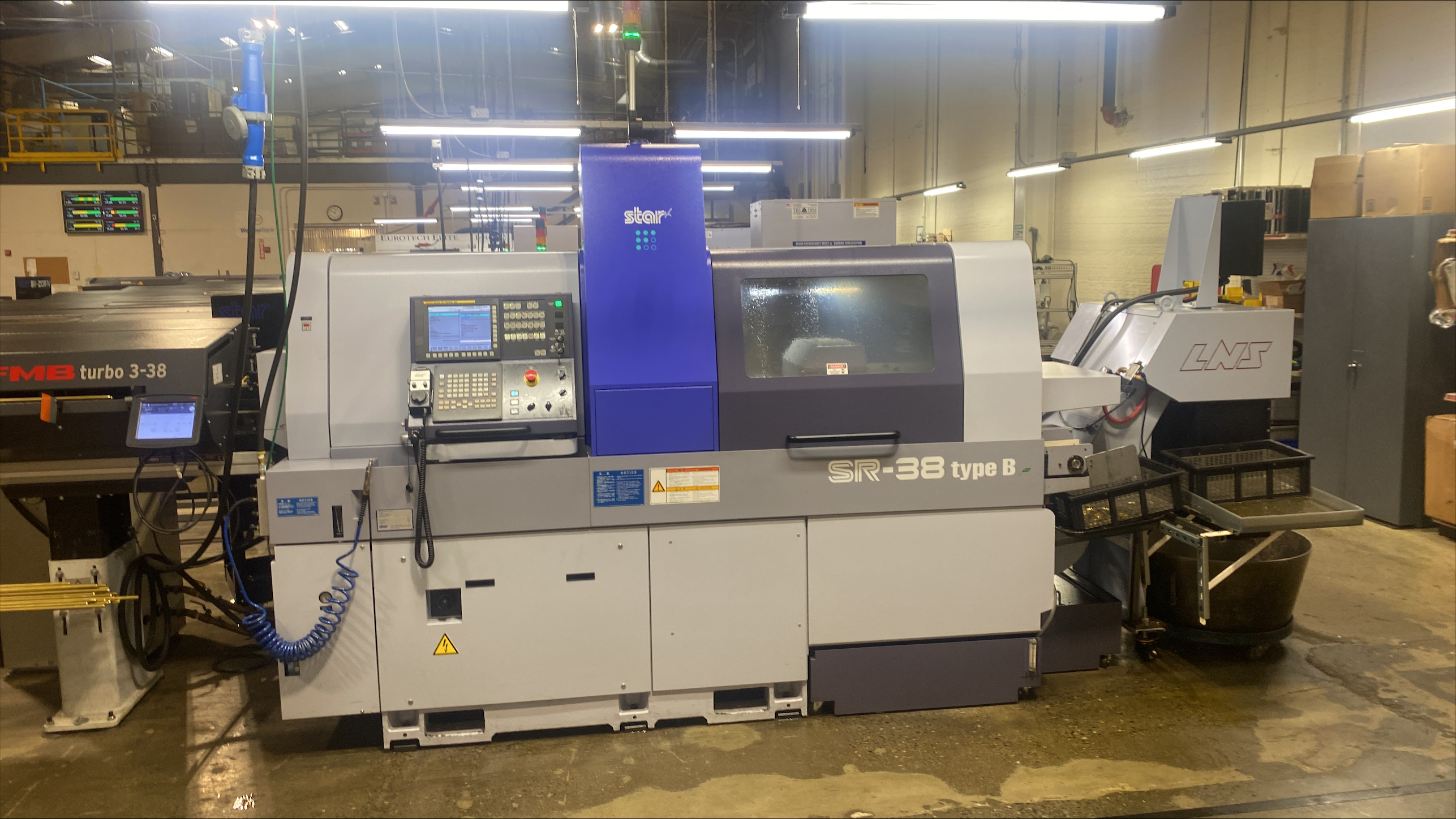

Star SR-38 Type B 2022

machine specifications

• Rapid Feed Rate:

  36 m/min (X1, Y1, Z, X2, Z2), 24 m/min (Y2, X3)

• Main Spindle Indexing Angle:

  C-Axis Control

• Main Spindle Speed:

  Max.7000min

• Main Spindle Motor:

  10.1 HP (Continuous) / 14.75 Hp (10 min/.25%ED)

• Coolant Tank Capacity:

  66.84 gal

• Dimensions:

  107.9" W x 51.77" D x 83.46" H

• Weight:

  9479.88 Lbs

• Power Consumption:

  15.9 KVA

• Chuck Diameter:

  1-1/2" Max

• Length for Front Ejection:

  5-7/8" Max

• Machining Diameter:

  1-1/2" Max

• Parts Projection Length:

  2-3/4" Max

• Headstock Stroke with R.G.B. Unit:

  12-19/32" Max

• Headstock Stroke with R.M.G.B. Unit:

  11/32" Max OP

• 4-Spindle Sleeve Holder on the Star SR 38-:

  ----

• Number of Tools:

  Front (5), Rear (5)

• Drilling Capability – Maximum:

  29/32"

• Tapping Capability – Maximum:

  M16 x P2.0

• Power Driven Attachment:

  ---

• Number of Tools:

  Cross Milling (4), Cartridge Type (At 2 Position)

• Number of Tools (Type A):

  Angle Adjustable Power-Driven Tool At 1 -Position (Front 3 tools + Rear 3 Tools)

• Number of Tools (Type B):

  B-Axis Controlled Power-Driven Tool Unit At 1

• Drilling Capability – Maximum:

  25/64"

• Tapping Capability – Maximum:

  M8 x P1.25

• Spindle Speed:

  Max.6,000min

• DRIVE MOTOR:

  2.95 Hp

• Back 8- Spindle Unit:

  ---

• Number of Tools on the Star SR 38:

  8

• Stationary Tool Drilling Capacity – Maximum:

  35/64"

• Power Driven Tool Drilling Capacity – Maximum:

  8

• Stationary Tool Tapping Capacity – Maximum:

  M12 x P1.75

• Power Driven Tool Tapping Capacity – Maximum:

  M6 x P1.0

• Power Driven Attachment Spindle Speed – Maximum:

  6000 RPM

• Power Driven Attachment Drive Motor:

  1.34 Hp

• Sub Spindle Indexing Angle:

  C-Axis Control

• Sub Spindle Speed – Maximum:

  7000 RPM

• Sub Spindle Motor:

  4.96 HP (Continuous) / 7.38 Hp (10min/40%ED)
