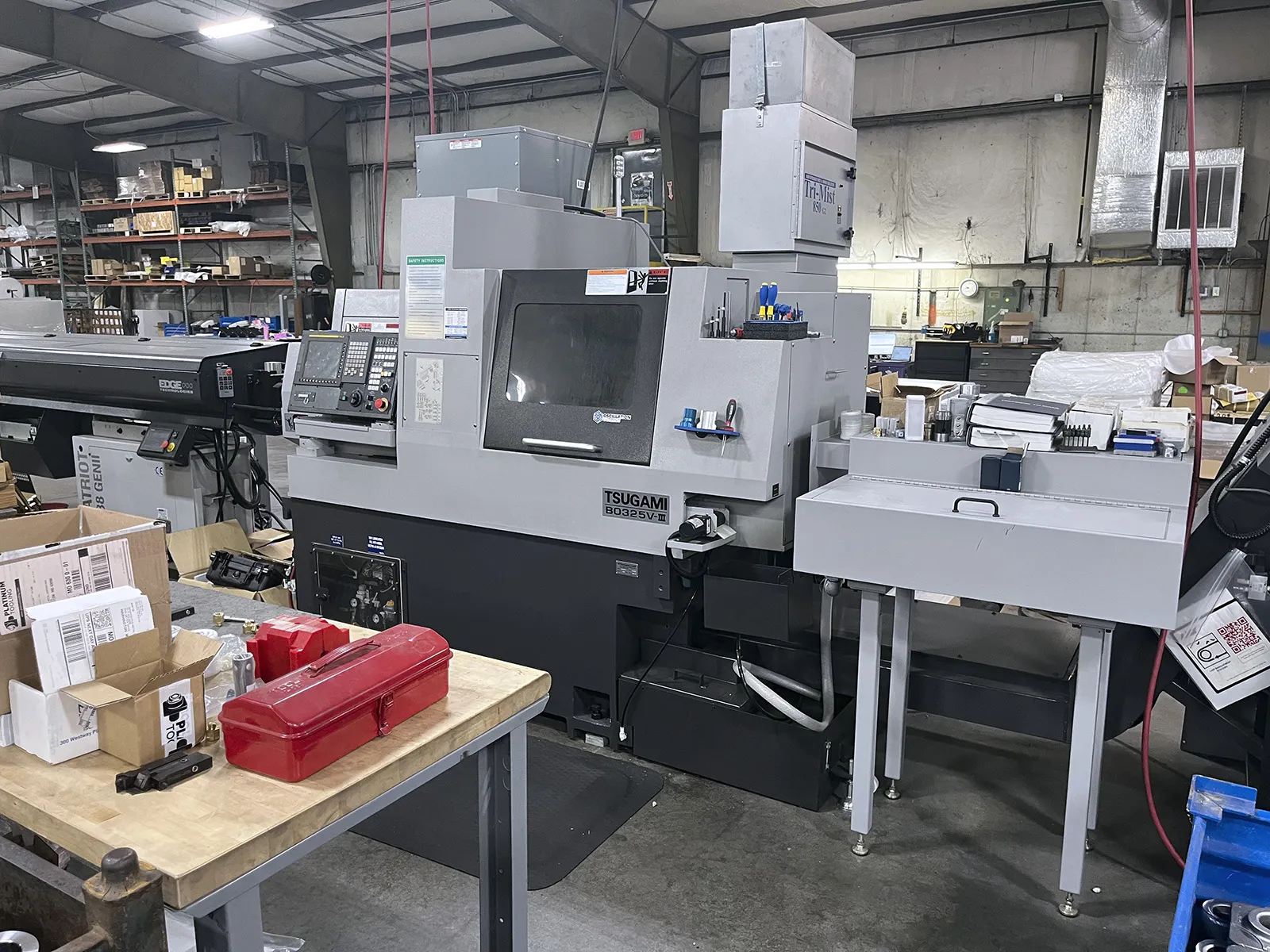

Tsugami BO325V-III 2022

machine specifications

• Number of Axes:

  7 (X1,Y1,Z1,X2,Z2,C1,C2)

• Chucking Bar stock Diameter:

  0.31 - 1.25"

• Max Machining Length - With Guide Bushing:

  12.59"

• Max Machining Length - Without Guide Bushing:

  70mm

• (w/ direct Drive Rotary GB):

• Max Drilling Diameter:

  47"

• Max Tapping Diameter:

  M10

• Max Back Spindle Chucking Diameter:

  1.25"

• Max Back Spindle Drilling Diameter:

  .39"

• Max Back Spindle Tapping Diameter:

  M10

• Max Tool Spindle Drilling Diameter:

  .31"

• Max Tool Spindle Tapping Diameter:

  M6

• Max Tool Spindle Slotting Diameter:

  1.77"

• Main Spindle Speed::

  200 - 8000 rpm

• Back Spindle Speed:

  200 - 8000 rpm

• Rapid Traverse Rate:

  32 m/min (X1,Y1,Y2 24 m/min)

• Tool Storage Capacity (std/max):

  29

• Stick Tool Size:

  16 x 16 x 100mm

• Tooling Configuration:

• Live Cross Drills:

  5

• OD turning tools:

  5

• ID Tools (by sub spindle) 2 (op live tools):

• ID/BW Tools:

• BW Tools:

  4 Fixed

• Main Spindle:

  3.7 / 5.5 kW

• Back Spindle:

  2.2 / 3.7 kW

• Tool Spindle:

  1.0 kW

• Rotary Guide Bushing:

  0.75 / 1.5 kW(direct drive GB)

• X1:

  0.5 kW

• Y1, Z1, X2, Z2:

  0.75 kW

• Coolant Pump:

  400 W

• Lubricating Pump:

  3 W

• Power Requirements:

  22.4 KVA

• Air Requirements:

  0.4 MPa or Above

• Air discharge rate:

  100 NL/min

• Coolant Tank Capacity:

  190 L (47.5 gal)

• Machine Dimensions:

  88" x 60" x 81"

• Machine Weight:

  10,694 lbs
