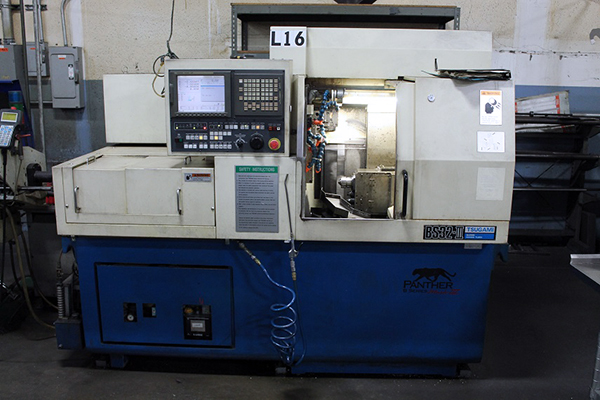

Tsugami BS32-III 2003

machine specifications

• Main Spindle Motor:

  7.37 HP

• Main Spindle Indexing:

  FULL C-AXIS

• Main Spindle Speed:

  7,000 RPM

• Max Tapping Diameter:

  M6 (Cross Rotary Tool)

• Sub Spindle Motor:

  2.95 HP

• Max Speed:

  4000 RPM (T34,T35) (BACK ROTARY TOOL DRILL SPINDLE)

• Number of Tool Stations:

  20

• Motor:

  1.20 HP (Cross Rotary Tool)

• Max Drilling Diameter:

  0.31" (Cross Rotary Tool)

• MAIN SPINDLE MAX BAR DIAMETER:

  1.25"

• MAIN SPINDLE WORKPIECE LENGTH:

  9.84"

• MAIN SPINDLE DRILLING DIAMETER:

  0.47"

• MAIN SPINDLE TAPPING DIAMETER:

  M10

• MAX SLOTTING CUTTER DIAMETER:

  1.77" (Cross Rotary Tool)

• MAX SPEED (T01,T02,T03/T04):

  5,000/4,000 RPM

• SUB SPINDLE MAX GRIPPING DIAMETER:

  1.25"

• SUB SPINDLE MAX DRILLING DIAMETER:

  0.39"

• SUB SPINDLE TAPPING DIAMETER:

  M8

• MAX TOOL DRILLING DIAMETER:

  0.23" (BACK ROTARY TOOL DRILL SPINDLE)

• MAX TOOL TAPPING DIAMETER:

  M5 (BACK ROTARY TOOL DRILL SPINDLE)

• MOTOR (BACK ROTARY TOOL DRILL SPINDLE):

  0.67'

• CROSS FIXED (T05,T11-T15):

  6 (Tool Stations)

• CROSS DRIVEN (T01-T04):

  4 (TOOL STATIONS)

• BACK WORKING FIXED (T31-T-33):

  3 (Tool Stations)

• BACK WORKING DRIVEN (T34,T-35):

  2 (Tool Stations)

• BACK SPINDLE FIXED (T24-T-26):

  3 (Tool Stations)

• BACK SPINDLE DRIVEN (T22,T23):

  2 (Tool Stations)
