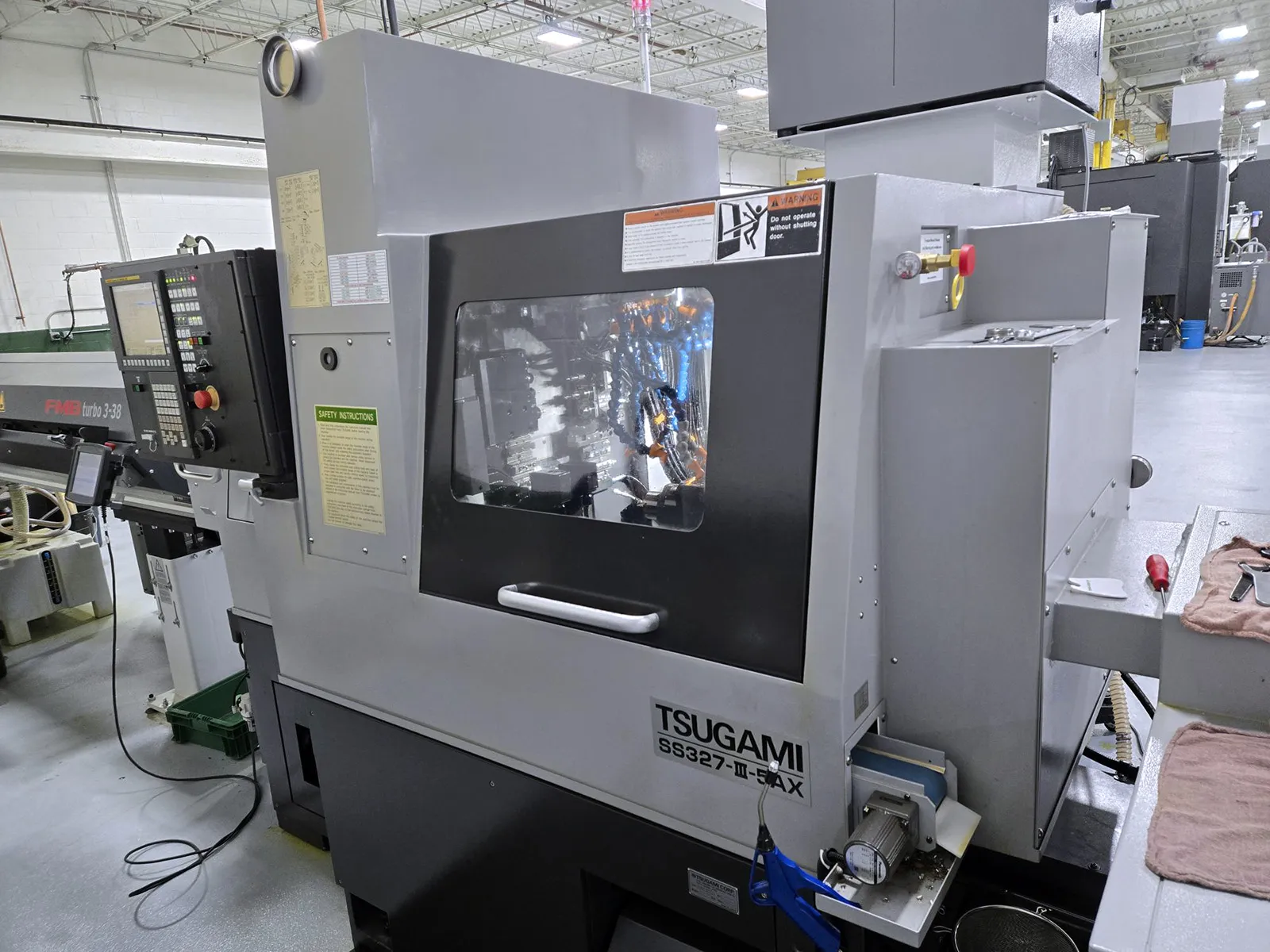

Tsugami SS327-III 5AX 2022

machine specifications

• Max. Chucking Barstock Diameter:

  ø32 mm (1.26 in.)

• Max. Machining Length:

  330 mm (12.99 in.) (Direct-Drive Guide Bushing)

• Chucker Mode:

  70 mm (2.76 in.)

• Max. Drilling Diameter:

  ø12 mm (.47 in.)

• Max. tapping diameter:

  M10

• Max. Back Spindle Chucking Barstock Diameter:

  ø32 mm (1.26 in.)

• Max. Back Spindle Drilling Diameter:

  ø10 mm (.39 in.)

• Max. Back Spindle Tapping Diameter:

  M8

• Max. Tool Spindle Drilling Diameter:

  ø8 mm (.31 in.)

• Max. Tool Spindle Tapping Diameter:

  M6

• Max. Tool Spindle Slotting Cutter Diameter:

  ø45 mm (1.77 in.)

• Machine:

• Capability:

• Main Spindle Speed:

  200 to 8,000 min-1

• Back Spindle Speed:

  200 to 8,000 min-1

• Tool Spindle Speed:

  200 to 6,000 min-1

• Total Tool Number:

  (Standard Spec.) 38

• Tool Size:

  .625 in. x 3.94 in. (square) / 25 mm (round)

• Rapid Traverse Rate:

  35 m/min (105 ft/min

• Rapid Traverse Rate (X1, Y1, Y2):

  24 m/min (78.74 ft/min)

• B-Axis Tool Spindle Speed:

  7,000 RPM

• Spindle Index:

  C1 Axis and C2 Axis

• Motors :

• Main Spindle:

  3.7/5.5 kW

• Back Spindle:

  3.7/5.5 kW

• Cross Drill of Front Tool Post:

  1.0 kW

• B-Axis Tool Spindle:

  1.0 kW

• Rotary Tool of Back Tool Post:

  1.4 kW

• Rotary Guide Bushing:

  1.5 kW

• Z1, Y1, X2, Z2:

  .75 kW

• X1, Y2:

  .5 kW

• Coolant Pump:

  .4 kW

• Lubricating Pump:

  3 W

• Others:

• Compressed Air Requirements:

  .4 MPa or more

• Air discharge rate:

  100 NL/min

• Power Source Requirements:

  16.8 KVA

• Coolant Tank Capacity:

  260 L

• *(Width x depth x height):

  2630 x 1280 x 2010 mm 103.5” x 50.4” x 79”

• Weight:

  4,000 kg (8,818 lbs.)

• NC SPECIFICATIONS:

• ITEMS:

  SS327-III-5AX

• NC Unit:

  FANUC 31i-B5

• Axis Name:

  X1, Z1, Y1, X2, Y2, Z2, C1, C2

• Least input increment:

  0.001 mm (X1/X2 axis in diameter)

• Least Command Increment X1/X2 axis:

  0.0005 mm, other: 0.001 mm

• Maximum Programmable Value:

  ± 8 digits

• Interpolation method:

  Linear/Circular/Polar/Helical/Cylindrical

• Rapid Traverse Function:

  35 m/min (115 ft/min) (X1/Y1/Y2 24 m/min (78.74 ft/min)

• Feedrate Function:

  1 to 6,000 mm/min

• Feedrate Override:

  0 to 150%, 10% step

• Dwell G04:

  0 to 99999.999

• ABS/INC Command X, Z, Y, C:

  Absolute U, W, V, H: Incremental

• Tool Offset Value:

  ± 6 digits

• Tool Offset Pairs:

  99

• LCD/MDI:

  10.4” color LCD

• Display Language:

  English

• Data Server:

  4 MB

• Registerable Programs:

  1000

• Auxiliary Function Main:

  M 5 digits

• Spindle Function:

  S 5 digits

• Tool Function:

  T 4 digits
