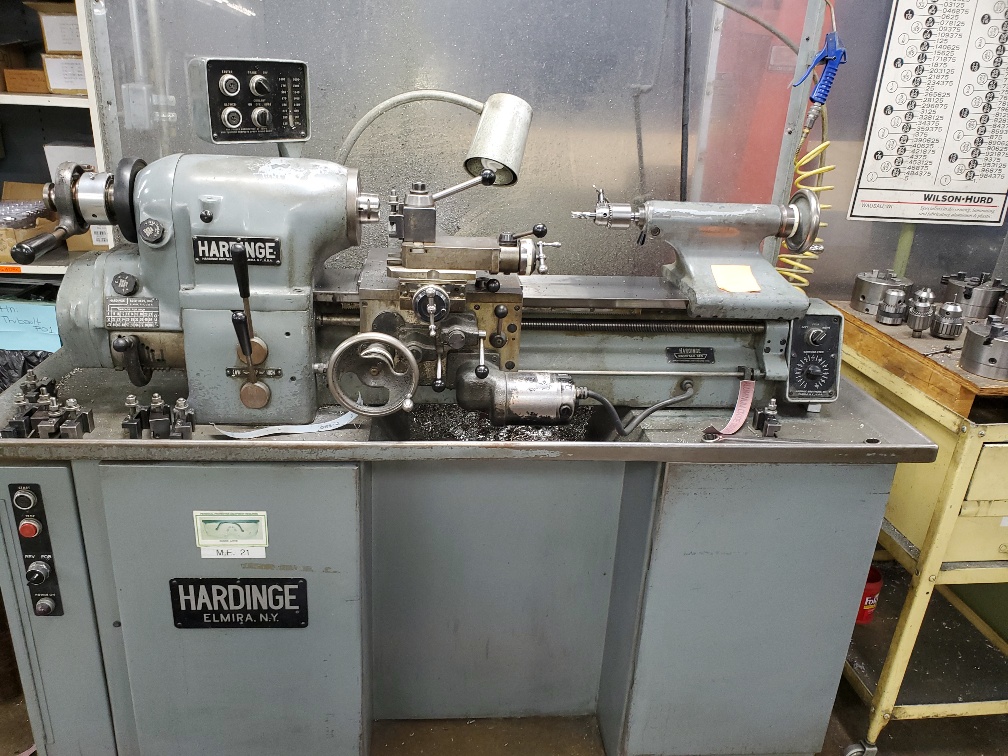

Hardinge HLV-H 1974

machine specifications

• Swing over Bed:

  11"

• Swing Over Carriage:

  9"

• Swing over cross slide:

  6"

• DISTANCE BETWEEN CENTERS:

  18"

• Spindle through Hole:

  1.25"

• Spindle Nose:

  Hardinge Taper

• Spindle Speed:

  125-3,000 RPM

• Collet Capacity:

  1.0625"

• Compound slide travel:

  3"

• Tailstock Travel:

  3.75"

• Power Feed Range:

  0.25" - 7" IPM

• Tailstock Taper:

  #2 Morse

• Main Motor:

  1.56 HP / 3 PHASE / 50 CYCLE / 400 / 440V

• Motor:

  1.5 Hp / 220v /3 ph

• Threads (27):

  11 - 108 TPI
