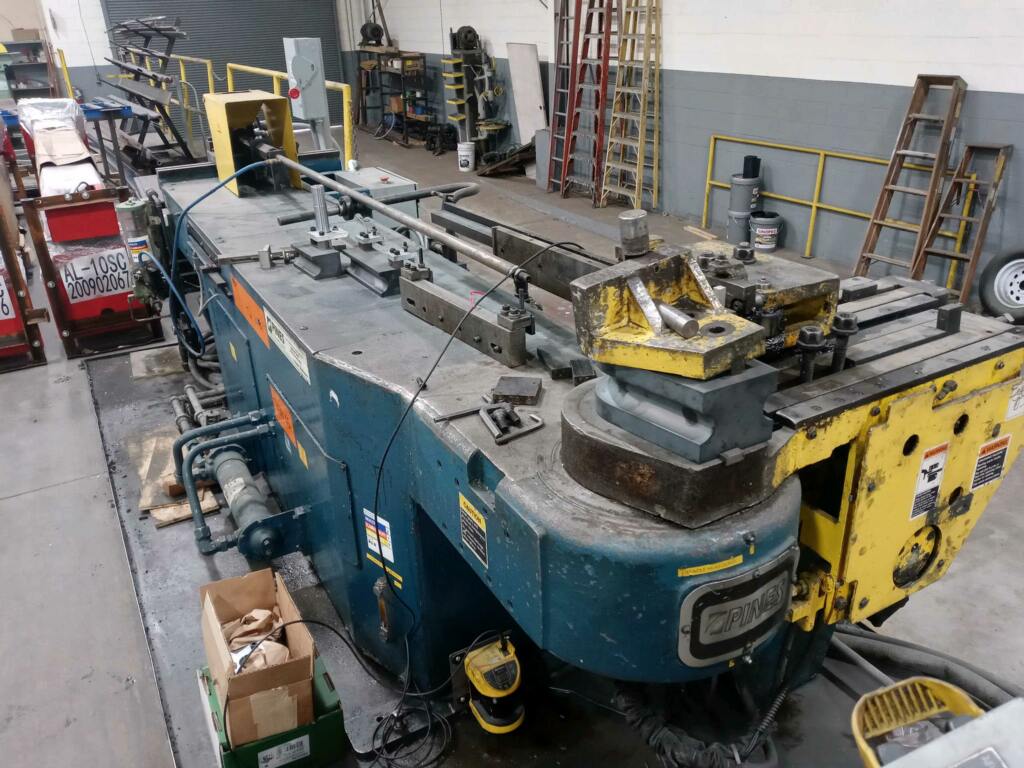

Pines No 2 2010

machine specifications

• Round Tubing Non-ferrous:

  3" X .188 Wall

• Round Tubing Mild Steel:

  3" X .109 Wall

• Maximum Bend Angle:

  180 Degrees

• Schedule 80 Pipe:

  2"

• Bend Arm Speed:

  6 RPM

• Rectangular Tubing(Mild Steel):

  1 1/2" X 3" X .148 Wall

• Operating Pressure:

  2000 PSI

• Maximum Bend Radius:

  12"

• Motor:

  10 H.P.

• Maximum Tube Length Over Mandrel:

  7'5"

• Right-Hand Machine:

  (Clockwise Rotation)
