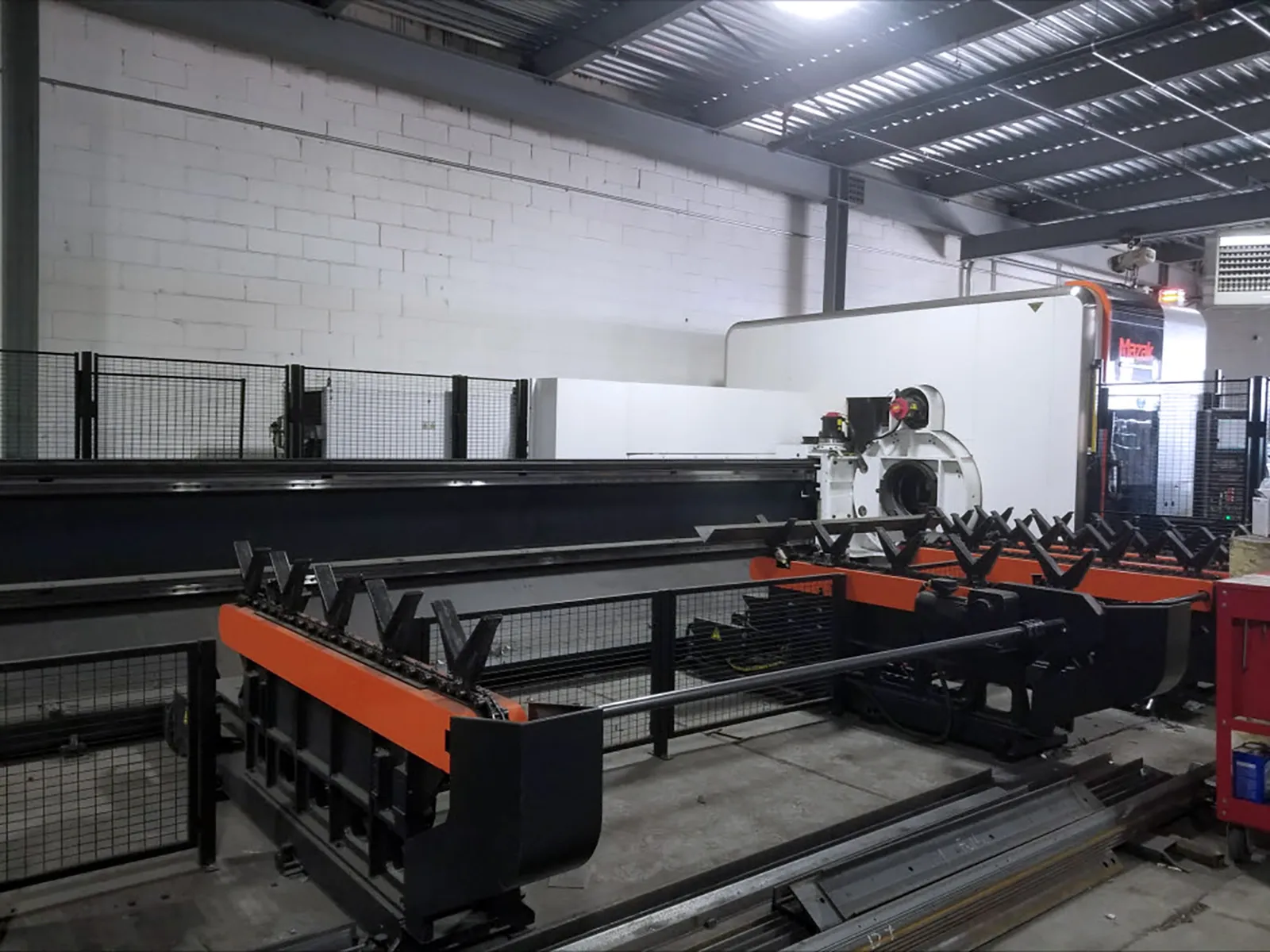

Mazak 3D Fabri-Gear 400 II 2016

machine specifications

• Workpiece Shape:

  Round, square, L/H/I beam and channel

• Workpiece Material:

  Mild steel / Stainless steel

• Workpiece Diameter:

• Round Pipe:

  .79" - 16"

• Square Pipe:

  .79" x .79" - 10" x 10"

• H/I Beam:

  .79" x .79" - 11.81" x 11.81"

• Channel:

  .79" x .79" - 11.81" x 5.51"

• Max Material Length for Loading:

  314.96"

• Min Material Length for Loading:

  135.83"

• Max Workpiece Weight:

  1764 lbs

• Stroke:

• X Chuck Left / right:

  346.06"

• U Chuck Left / right:

  366.14"

• V Chuck Left / right:

  99.02"

• Y Head back / forth:

  50"

• Z Head up / down:

  14.57"

• A head rotation:

  ±99999.999 deg

• Max. Traverse Rate:

• X, U, V:

  1181 IPM

• Max. Traverse Rate Y:

  945 IPM

• Max. Traverse Rate Z:

  945 IPM

• Max. Traverse Rate A, B:

  9600 deg/min

• C (chuck rotation):

  6000 deg/min

• Machine Weight:

  77,160 lbs
