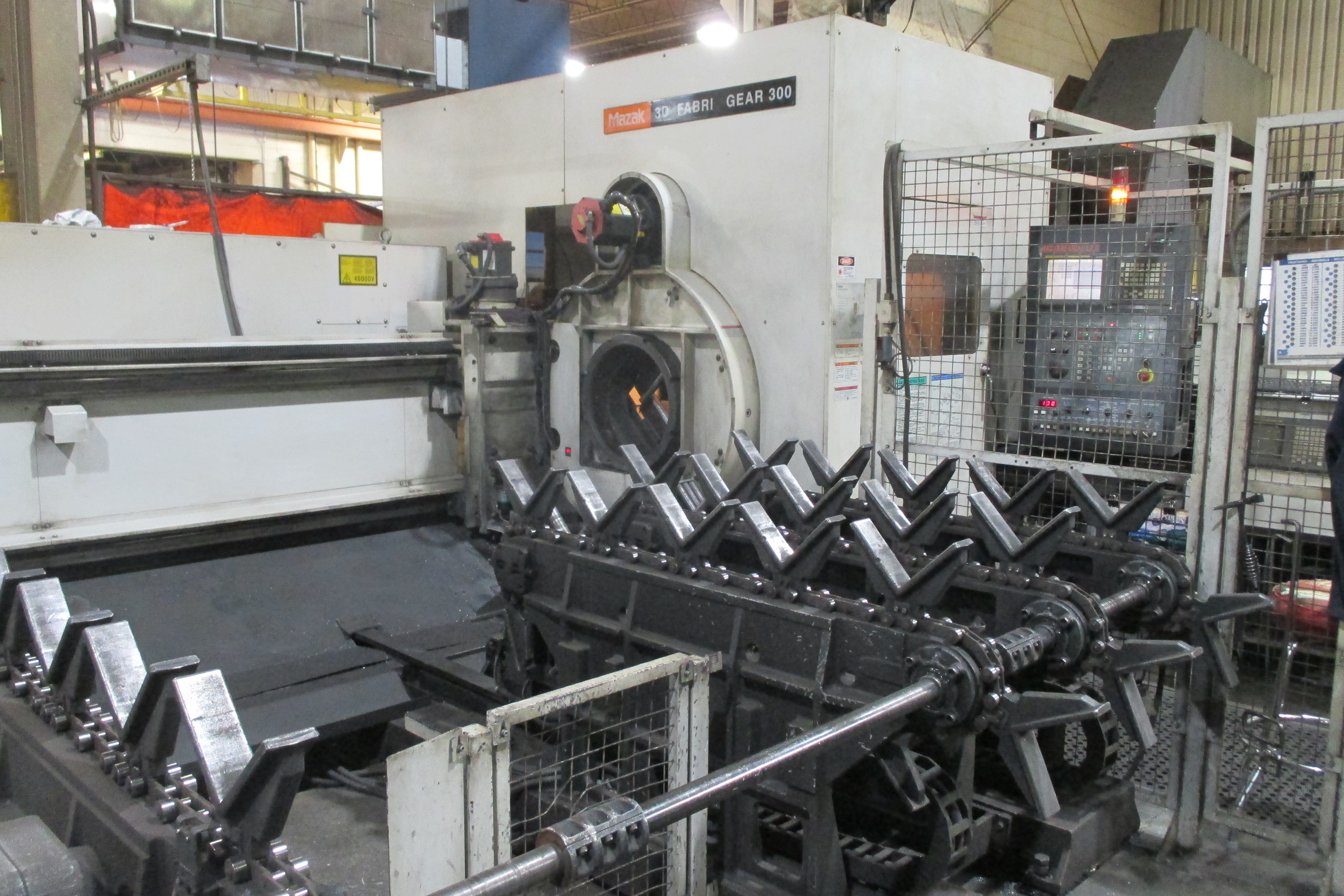

Mazak 3D Fabri Gear 300 2005

machine specification

• POWER OUTPUT
• 4,000 Watts

• NUMBER OF PROGRAMMABLE AXIS
• 6

• MAX STEEL CUT THICKNESS
• 0.870"

• RAPID TRAVERSE RATE (X , Y ,Z, C)
• 1181 /945/787 IPM - 6000 deg/min

• NUMBER OF MATERIAL CHUCKS
• 4

• MATERIAL UNLOADING
• -5 Stations

• MATERIAL LOADING
• -3 Stations

• MAX TUBE WEIGHT
• 1,058 lbs

• OTHER PROFILE CAPABILITIES
• I/H Beam, Angle, Channel, Rectangle, T and Ellipse

• DIMENSIONAL TOLERANCE
• +/-.015"

• MAX SQUARE TUBE SIZE
• 8"

• MAX ROUND PIPE DIAMETER
• 10.52"

• MIN MATERIAL DIAMETER
• .79"

• MAXIMUM MATERIAL LENGTH
• 26.2ft

• B AXIS
• +- 135 deg

• A AXIS:
• +- 360 deg

• X AXIS STROKE
• 344.5"

• U AXIS STROKE
• 358.3"

• V AXIS STROKE
• 91.14"

• Y AXIS STROKE
• 50"

• Z AXIS STROKE
• 14.57"

• AXIAL DRIVE SYSTEM X-AXIS
• Rack & Pinion

• AXIAL DRIVE SYSTEM
• AC Servo Motor, Digital Servo Drive

• AXIAL DRIVE SYSTEM
• Y,Z-axis - Ball Screw

• RAPID TRAVERSE RATE A, B
• 9600 deg/min

• CUTTING TIME
• 19,167

• OPERATING TIME
• 45,390

• POWER SUPPLY
• 3-Phase AC: 98kVA

• POWER SOURCE
• 220V +-10% 60Hz

• APPROXIMATE MACHINE WEIGHT
• 72,000 lbs

machine equipped with

• 4000 WATT RESONATOR
• 3D CUTTING HEAD
• TAPPING UNIT
• 6 PROGRAMMABLE AXIS
• (4) MATERIAL CHUCKS
• AUTO LOAD/UNLOAD
• AUTO FEED
• AUTO PIPE MEASUREMENT
• AUTO PROFILE CENTERING
• WORK PIECE CLAMPING CHUCKS
• CHILLER
• DUST COLLECTORS
• RESONATOR REFURB COMPLETED 19000 HOURS AGO

machine description

Used Mazak 3D Fabri Gear 300. This pre-owned Tube Laser is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Mazak Tube Laser we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
