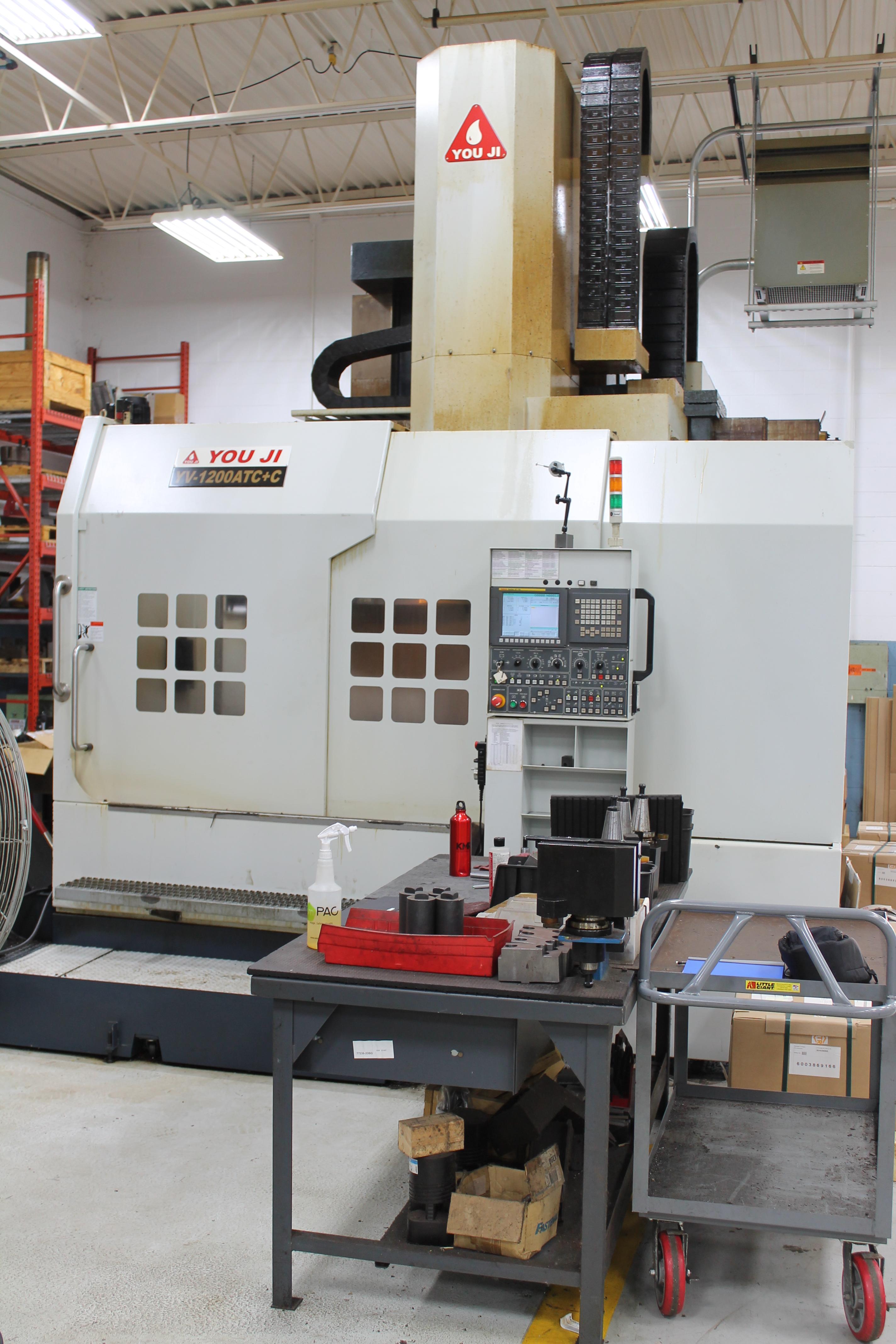

You-Ji 1200 ATC+C 2012

machine specifications

• Tool Positions:

  16 ATC

• Repeatability:

  ±0.0015 mm

• Position Accuracy:

  ±0.003 mm

• Cutting Feedrate:

  1- 24,000 mm/min / 1- 944"

• Rapid Traverse Rate, X, Z:

  472, 394 IPM

• Magazine Capacity:

  800 lbs. (Max)

• Tool Change Time:

  30 Seconds

• Tool Shank Size:

  1.25” (O.D)

• ATC Type:

  Umbrella / Electric

• Max Swing:

  30.3"

• Spindle Torque:

  9,220 ft./lbs.

• Spindle Bearing Diameter:

  24” O.D. / 18” I.D.

• Spindle RPM:

  2-350

• Spindle Motor:

  50 HP

• Max Cutting Height:

  50”

• Max Longitudinal Travel:

  35.4" (Z axis)

• Max Cross Travel:

  3.94" ; + 34.5" (X axis)

• Standard Turning Diameter:

  47.2"
