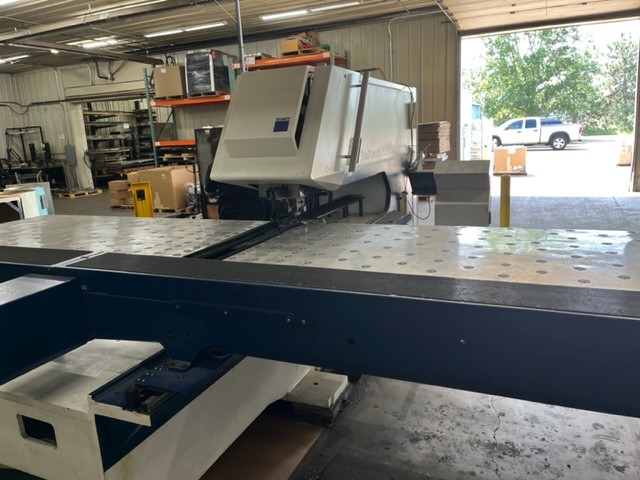

Trumpf TruPunch 2020 2011

machine specifications

• Max Punching Capacity:

  20 Tons

• Working Range:

  102.36" x 50"

• Max Sheet Thickness:

  .25"

• Punch Tonnage:

  180kN

• Max Workpiece Weight:

  330.69 lbs

• Feed clearance:

  1.5"

• X-Axis Speed:

  3,543.31 IPM

• Y-Axis Speed:

  2,362.20 IPM

• Simultaneous X-Axis + Y-Axis:

  4,251.97 IPM

• C-Axis:

  3 rotations per second

• Stroke Rate Punching Pitch:

  .0394" at 900 strokes per minute

• Stroke Rate Punching Pitch:

  .9845" at 420 strokes per minute

• Stroke Rate Marking:

  2,200 Strokes per minute

• Linear Magazine:

  19 Tools

• Max number if using multitools (2 Clamps):

  19-190 tools

• Rotation Of All Tools:

  360 degrees

• tool change time single tool:

  3.5 seconds

• tool change time multitool:

  .9 seconds

• Max Punch Diameter single stroke:

  2.99"

• Max Punch Diameter standard multicut:

  7.87"

• Programmable Parts Chute Max Part Size:

  7.87" x 7.87" can be sorted into 2 containers

• Positioning Accuracy:

  .00397"

• Repeatability:

  .00118"
