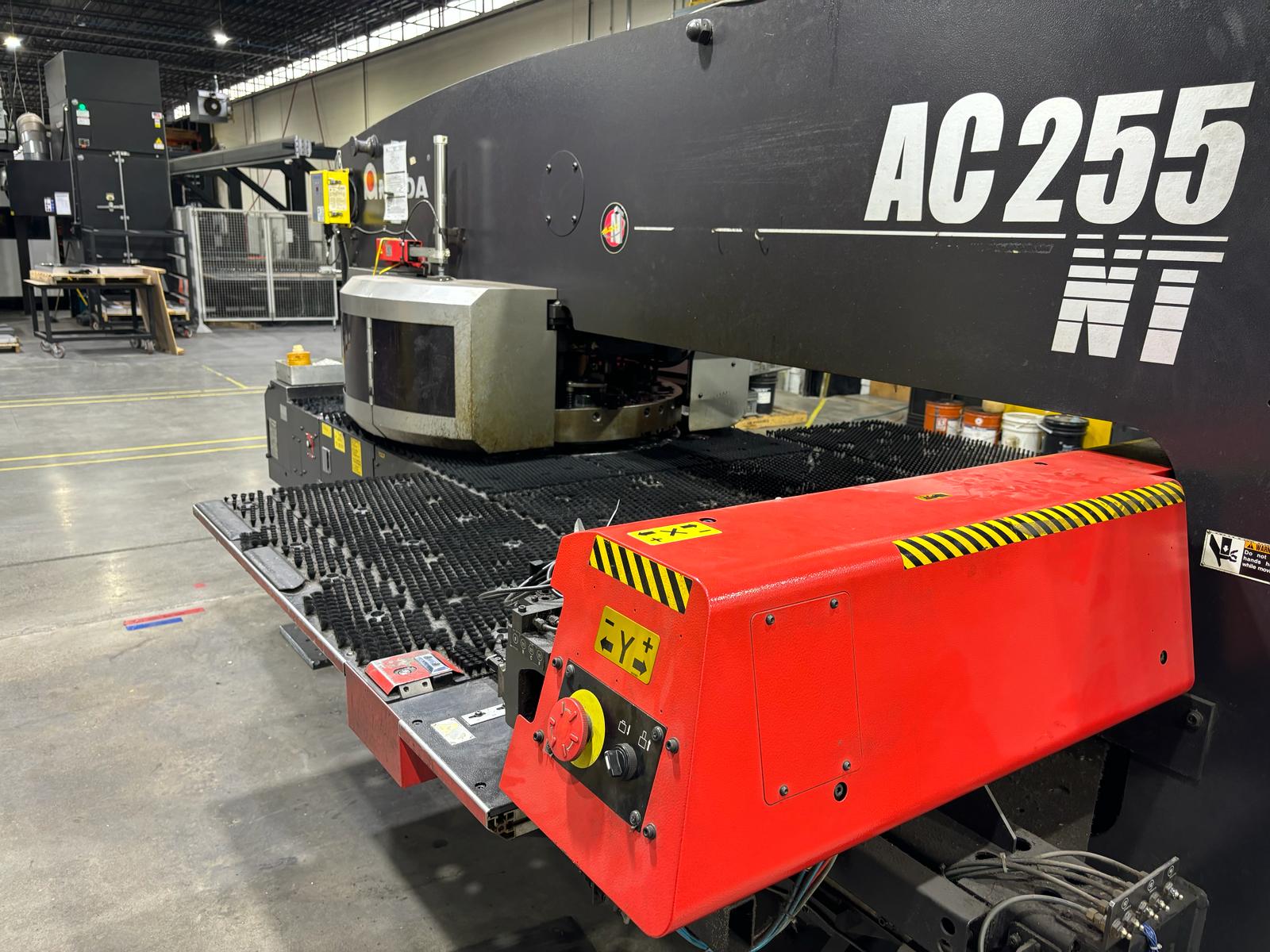

Amada AC255NT 2008

machine specifications

• Tonnage Capacity:

  22 ton

• Number of Turret Stations:

  51

• Dimensions:

  L162" x W101"

• Weight:

  26,400 pounds

• Sheet Size Capacity:

  4ft x 8ft w/ Repositioning

• Throat Depth:

  50"

• Travel Range:

  50" x 50" w/o Repositioning

• Type of Turret Tooling:

  Amada Thick

• Type of Frame Design:

  Bridge Frame

• Max Stroke Length:

  1.65"

• Drive System:

  Press Single Motor AC Servo

• Max Material Thickness:

  0.126"

• Punching Accuracy:

  ± 0.004" and ± 0.002"

• Turret Rotation Speed:

  30 RPM

• Auto-Index Rotation Speed:

  60 RMP

• Max Feed Rate:

  X 3,150 IPM/ Y 2,362 IPM

• Max Hit Rate:

  X 370 HPM / Y 275 HPM

• Power Requirement:

  19 kVA

• Air Consumption:

  2.7 Cubic Feet

• Max Weight of Material F1 Speed:

  110 lbs

• Max Weight of Material F4 Speed:

  331 lbs
