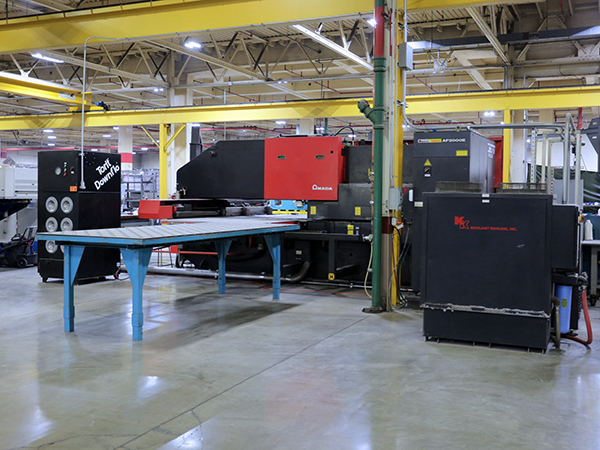

Amada Apelio 367 III 2000

machine specifications

• Turret Capacity:

  8 Positions

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• Sheet Size - L:

  60"

• Sheet Size - W:

  144"

• Stroke of Ram:

  1.575"

• Stroke (SPM):

  475

• Max Material Thickness (Mild Steel):

  .25

• Max Cutting Speed (IPM):

  590"

• Laser Z Axis travel range:

  12"

• Laser capacity: Power output:

  2.0 KW

• Number of Stations:

  58 (with 2 Auto-Index Stations)

• Maximum Axis Speed:

  1968 IPM

• Turret Rotation:

  30 RPM

• Hits Per Minute:

  1" Moves: 220 .315" stroke .315 move

• Programming Mode:

  Absolute/Incremental G-Code

• Smallest Programmable Increment:

  .001"

• Main Motor:

  5 HP 220/3/60 Volts

• Laser:

  Fanuc AF2000E
