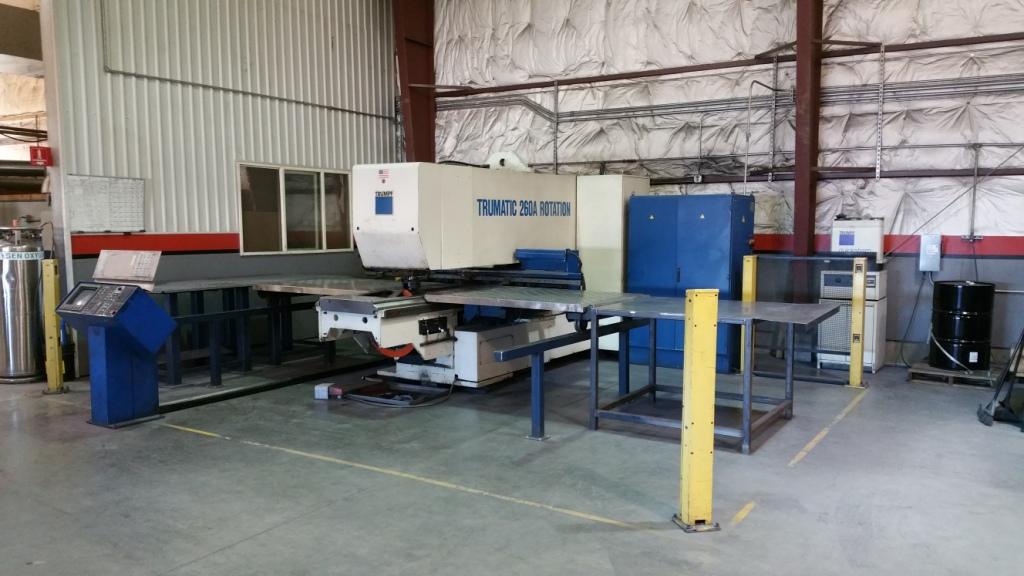

Trumpf Trumatic 260A 1990

MAKE: Trumpf
YEAR: 1990
TYPE: Turret Punch

MODEL: Trumatic 260A
CONTROL: Bosch Trumagraph CC300
REF #:

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Pallet Size (inches):

25"

machine equipped with

Bosch Trumagraph CC300

machine description

Punching force: 27.5 tons Punch Stroke: Fully hydraulic Penetration depth adjustment: Programmable to .65" Ram Stroke length adjustment: Programmable to 1.8" max Ram Max Clearance: 1.4" Ram Speed adj: Programmable to 500 max Number of stations: 10 station rotation (360 degrees) Maximum Punch diameter (rotation): 3" Maximum Punch diameter: 3" Maximum material thickness: .250" Maximum Blank Weight: 330 lbs Work Area w/o repositioning: 51' x 80" Work area with positing: Max 51" x 120" Maximum linear travel speed x-axis: 3600 PRM Maximum linear travel speed y-axis: 2400 IPM Drive mechanism: AC motor CNC controls: Bosch Trumagraph CC300 Maximum programmable increment: .001" or .01 degrees Coodinate guide accuracy: +- .004 Coordinate guide repeatability: +- .0012 Peumatic at 100 psig and Electrical requires 480 volt, 23 kva, 30 amp startup and needs 50 amps of continuous service Serial Number for 260- 905005 Dimensions: 299" x 262" x 97" and weight 35,200 lbs.
