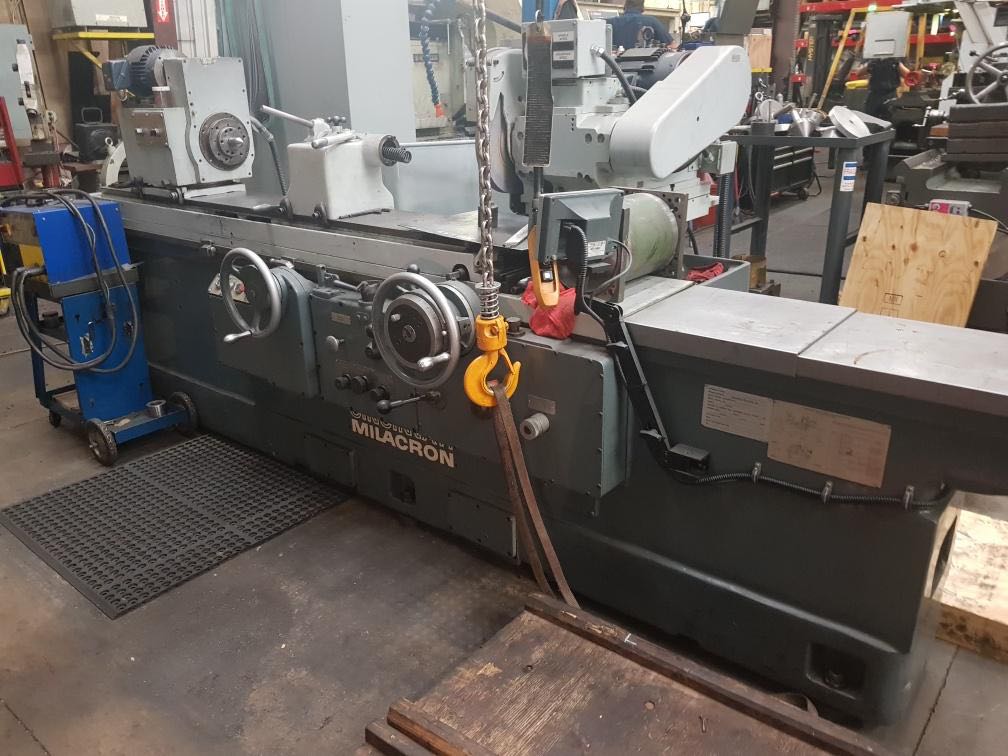

Cincinnati 14 x 48 Model DE 1977

machine specifications

• Max Swing:

  14"

• Center Distance:

  48"

• Spindle Drive Motors:

  5 HP

• Swivel Table Graduated (Toward Wheelhead):

  10 degrees

• Swivel Table Graduated (Away from Wheelhead):

  3 degrees

• Graduated to Taper Per Foot (Toward Wheelhead):

  3-1/2"

• Graduated to Taper Per Foot (Away Wheelhead):

  1-1/4"

• Grinding Wheelhead Swivel:

  Upper / Lower 90 / 30 degrees

• Standard Grinding Wheel Size:

  18" x 3" x 5"

• Cross Feed (High):

  0.0005 - 0.0125"

• Cross Feed (Low):

  0.0002 - 0.005"

• Headstock Speed Range (Infinitely Variable):

  50 - 500 rpm

• Range of Table Speeds (Infinitely Variable):

  3 - 240 ipm
