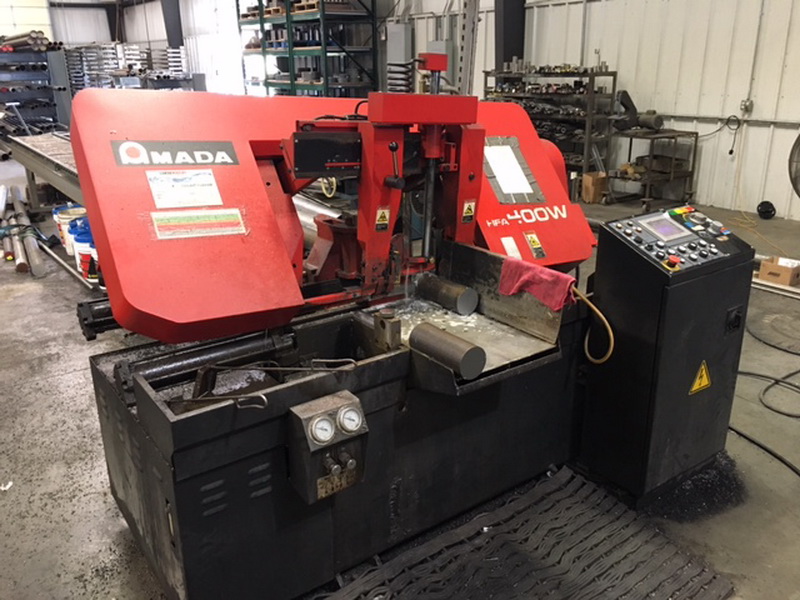

Amada HFA 400W 2012

machine specifications

• Pallet Size (inches):

  25"

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Cutting Capacity - Round (Diameter):

  0.5" - 16"

• Cutting Capacity - Rectangle (W X H):

  16" X 16"

• Work Load Capacity:

  5,511 Lbs

• Blade Dimensions:

  15' X 0.050" X 1-1/2"

• Blade Speed:

  50-295 Ft./Min, 60Hz Stepless

• Tension Control:

  Hydraulic

• Vise Operation Type:

  Front And Rear Vise

• Blade Saw Motor:

  8 HP

• Hydraulic Pump Motor:

  2 HP

• Cutting Fluid Pump Motor:

  1/4 HP

• Power Supply Voltage:

  AC220±10%, 3 PH, 60 Hz

• Power Supply Voltage Alt:

  AC440V, 3PH, 60Hz

• Power Requirement:

  12.8 KVA

• Cutting Fluid Tank Capacity:

  31.5 Gal

• Cutting Fluid Pump Type:

  Electric

• Hydraulic Tank Capacity:

  10.5 Gal

• Chip Disposal:

  Chip Conveyor

• Material Index Mechanism:

  Shuttle Vise

• Stroke:

  19.6"
