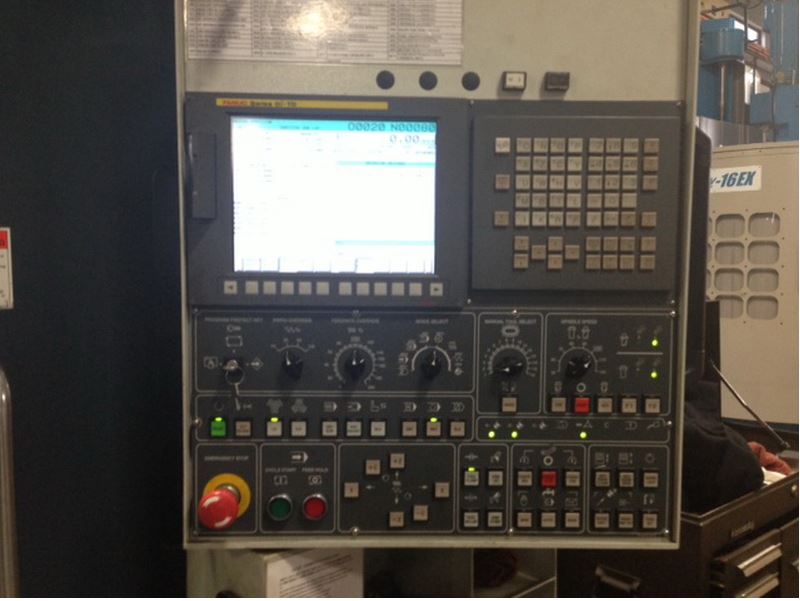

You-Ji VTL 1200 ATC+C 2012

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Table Diameter:

  49.21"

• Max Swing (inches):

  17.32"

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Max Cutting Diameter:

  53.14"

• Max Cutting Height:

  47.24"

• Maximum Table Load:

  11023.11 lbs

• Horizontal travel of rail head (X-axis):

  36.81"

• Vertical travel of ram (Z-axis):

  35.43"

• Vertical travel of cross rail:

  27.55"

• Table Speed (Low):

  2-108 RPM

• Table Speed (High):

  108-350RPM

• Led Spindle Speed (Low):

  2-1200 RPM

• Led Spindle Speed (High):

  1200-2400 RPM

• Maximum Table Torque:

  8,200 (836)N.m(kgf-m)

• Rapid traverse of rail head (X-axis):

  39.37"/min.

• Rapid traverse of ram (Z-axis):

  32.80"/min.

• Cutting Feed Rate:

  1-7.87"/min.

• Manual feeder rate:

  32.80"/min.

• Tool Changer Type:

  60 ATC

• Type of Tool Shank:

  7/24 Taper BT50

• Max. tool weight:

  110.23 lbs

• Max. loading of ATC:

  793.7 lbs

• Tool change time(ATC):

  40 seconds

• Spindle Drive Motor:

  7.5/11 Kw

• Power capacity:

  100KVA

• Coolant motor:

  0.18

• Resonator ( Type ):

  55

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Speed:

  12,000 RPM

• Bar Stock Capacity:

  2.0"

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Pallet Size (inches):

  25"

• V-Axis Travel:

  5555

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• Chuck Size (Inches):

  8"
