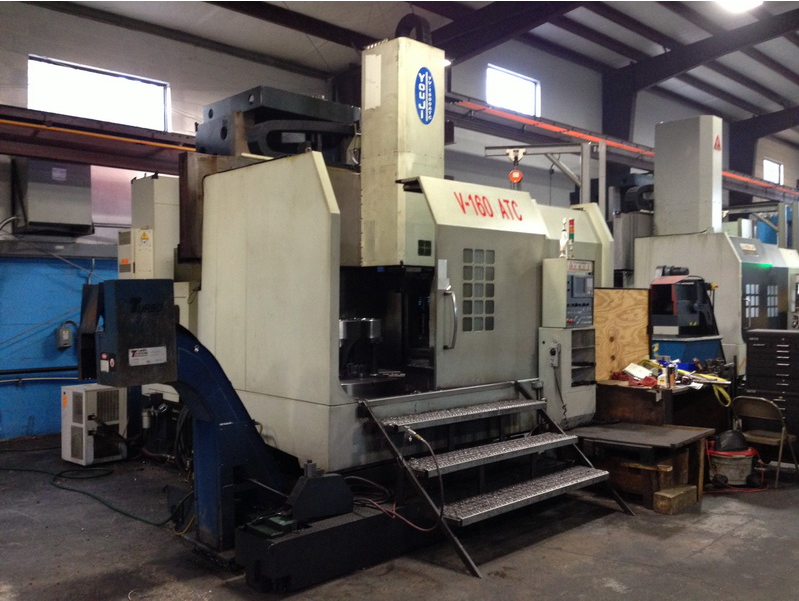

You-Ji 1600 ATC 2007

machine specifications

• Wire Traveling Speed:

  22

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Pallet Size (inches):

  25"

• Spindle Taper (CAT/BT):

  HSK-463

• Y - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• Table Diameter:

  63"

• Max Swing (inches):

  17.32"

• Max. cutting diameter:

  70.86"

• Spindle Speed:

  12,000 RPM

• Max. cutting height:

  47.24"

• Max. load Table:

  17637 lbs.

• Horizontal Travel of Rail Head (X-Axis):

  48.22"

• Vertical travel of ram (Z-axis):

  35.43"

• Vertical travel of cross rail:

  27.55"

• Table Speed: Low:

  2-62 RPM

• Table Speed: High:

  64-250 RPM

• Max. Table torque:

  19,600(2000)

• Rapid Traverse of Rail Head (X-Axis):

  39.37'/min

• Rapid traverse of ram (Z-axis):

  32.80'/min

• Cutting Feed Rate:

  0.039-7.87"/min

• Manual feeder rate:

  0~32'/min

• Tool Changer Type:

  60 ATC

• Type of Tool Shank:

  7/24 taper BT-50

• Max. of tool size for automatic tool changing:

  280W x 150T x 400L

• Max. tool weight:

  110 lbs.

• Max Loading of ATC:

  793 lb

• Tool change time(ATC):

  40sec

• X - Axis Travel (inches):

  15.7" / 400mm

• Spindle Drive Motor:

  37/45 (?40)kw

• Z - Axis Travel (inches):

  14.7" / 375mm
