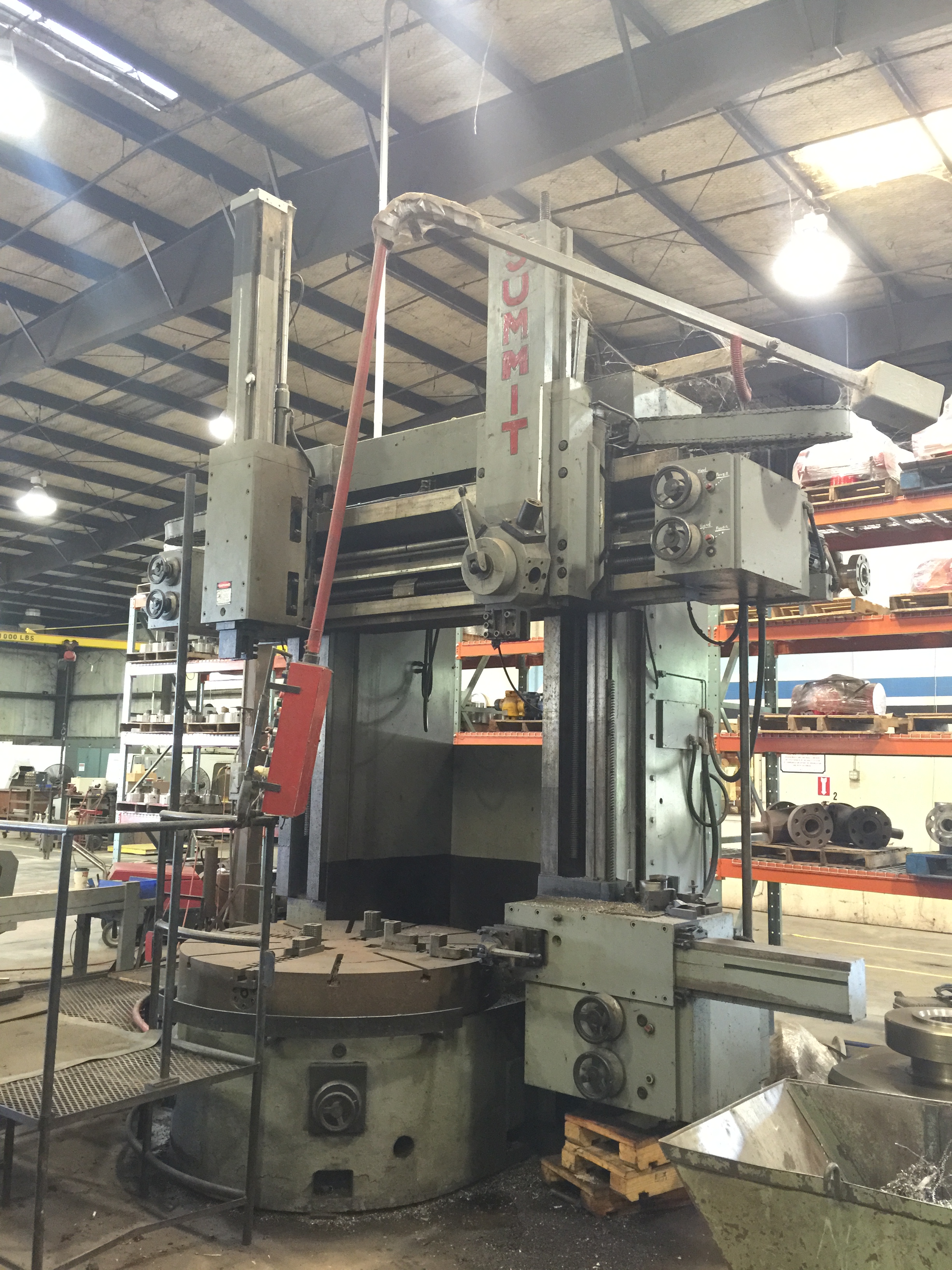

Summit 59 Inch 1973

machine specifications

• Main Motor:

  40 Hp

• Table Diameter:

  59"

• Max. Machining Diameter w/ Vertical Head:

  70"

• Max. Machining Diameter w/ Side Head:

  65"

• Max. height under cross rail:

  47 1/4"

• Vertical travel of cross rail:

  55"

• VERTICAL TRAVEL OF TURRET SLIDE:

  29-1/2"

• SWIVEL OF TURRET SLIDe:

  +/-35 DEGREES

• Vertical Travel of Ram:

  33-1/2"

• SWIVEL OF RAM HEAD:

  +/- 35 DEGREES

• HORIZONTAL TRAVEL OF SIDE HEAD:

  26-1/2"

• VERTICAL TRAVEL OF SIDE HEAD:

  45"

• TABLE SPEEDS:

  4 -165 RPM

• HEAD FEED RANGE:

  050 -.5 IPR
